HELLA ValueFit O1200 LED Work Light 455VF1GA 357001001 | 24W | 1200 lm | Close Range

The HELLA LED work light 455VF1GA 357001001, part of the ValueFit O1200 series, is an oval lamp designed for close-range illumination. With a power consumption of 24 Watts, it delivers an effective luminous flux of 1200 lumens. The aluminum housing and IP67 protection rating make it durable and reliable for use on agricultural and construction machinery. Mounting is vertical, and the connection is via open cable ends.

Technical Data

• Part Number: 455VF1GA 357001001 (HELLA).
• Original Reference: 1GA 357 001-001.
• Light Function: Close-range illumination.
• Type: ValueFit O1200.
• Nominal Voltage (V): 12 / 24.
• Power Consumption (W): 24.
• Current (A): 2.0 (12 V) / 1.0 (24 V).
• LED Quantity: 8.
• Effective Luminous Flux (lm): 1200.
• Lamp Type: LED (Bulbs included: Yes).
• Protection Type: IP67.
• Control Mark: E9 6402; ECE R10.
• Permissible: Environmental and safety protection (ex de minimis).

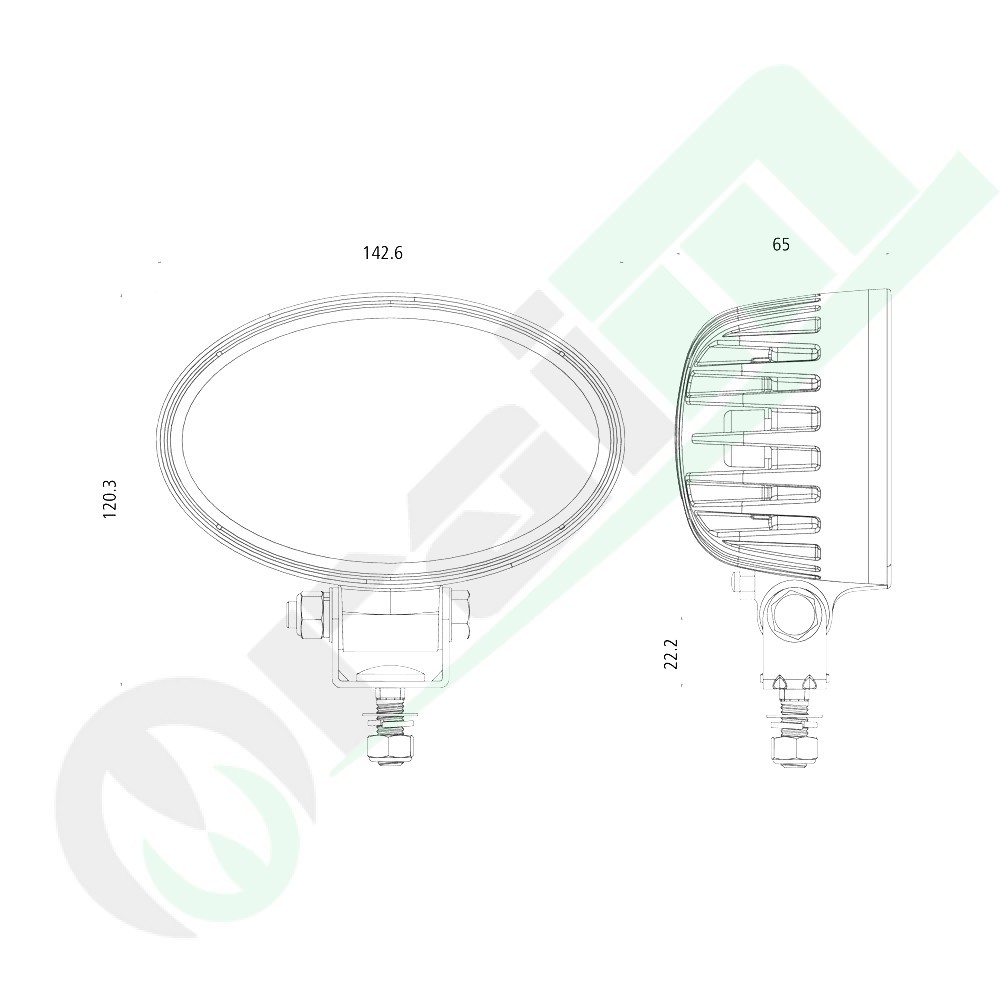

Dimensions and Mounting

• Shape: Oval.
• Dimensions L x H x D (mm): 143 x 120 x 65.
• Mounting Method: Vertical.
• Connection: Open cable ends.
• Cable Length (mm): 530.
• Material: Housing: Aluminum; lens: Plastic material.
• Body Color: Black.
