GRANIT LED Work Light 7070010292 | 36W | 3908 lm | IP69K | Flush Mount Long Range

The GRANIT 7070010292 LED work light is a 36 W angular unit for recessed mounting, optimized for long range illumination. It provides a high effective luminous flux of 3908 lumens from 30 LEDs. Its excellent protection (IP6K9K) and low electromagnetic interference (EMC CISPR25 Class 3) make it ideal for applications requiring flush installation and maximum environmental resistance.

Functional Specifications and Performance

• Light Function: Long range illumination.
• Effective Luminous Flux: 3908 lumens (lm).
• Theoretical Luminous Flux: 9900 lumens (lm).
• Power Consumption: 36 Watts (W).
• LED Quantity: 30.
• Rated Voltage: 12 / 24 Volts (V).
• Voltage (Volts): 10 - 30.
• Light Tone: 5000 - 6500 Kelvin (K).
• Thermal Range: -40 / +50 °C.
• EMC: CISPR25 class 3.

Technical and Structural Data

• Part Number: 7070010292.
• Shape: Angular.
• Construction Type: Recessed.

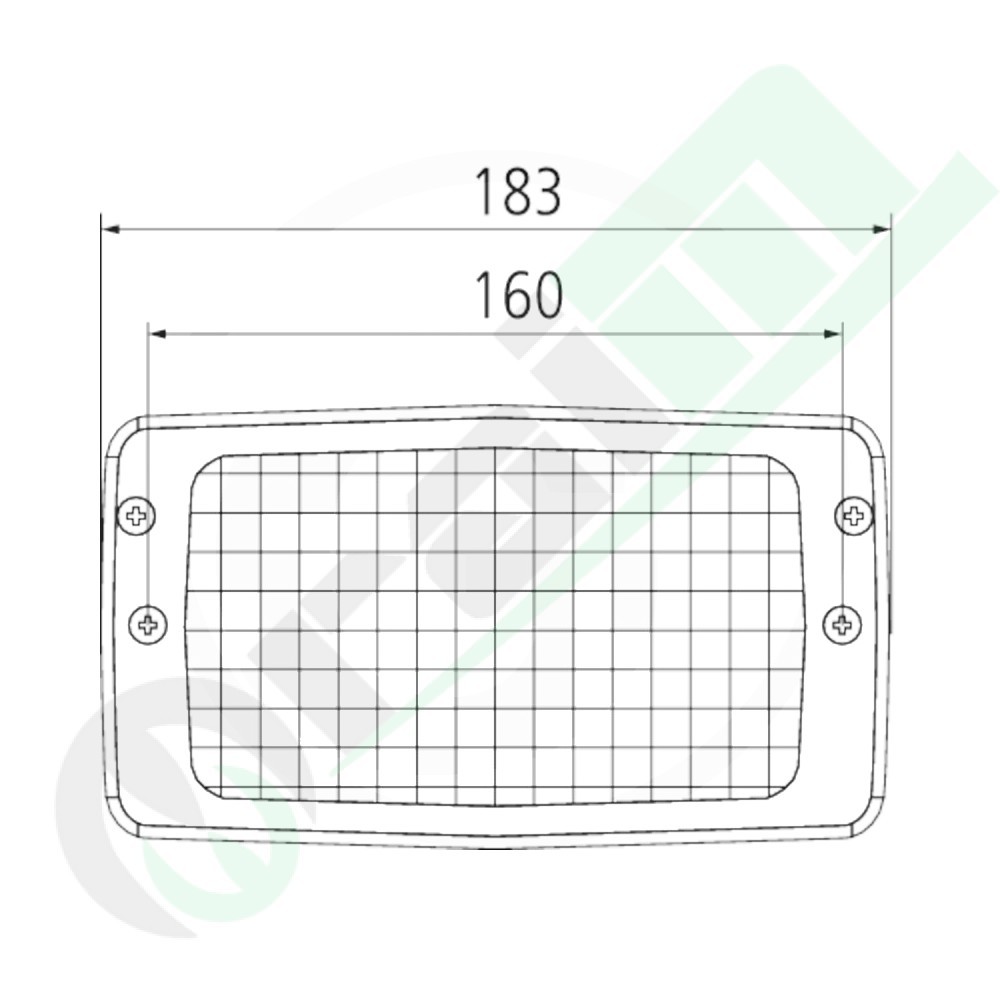

• Dimensions W x H x D: 183 x 102 x 61 mm.
• Light Cutout (mm): 146 x 85.
• Structural Dimension (Recess Depth): 61 mm.
• Material (Housing): aluminium.
• Material (Lens Cover): plastic material.
• Material (Mounting Bracket): Stainless steel.
• Color: black.
• Mounting Method: Vertical.
• Mounting: 2 screw connections (M4) with 160 mm hole spacing.
• Protection Type: IP67 / IP6K9K.
• Connection: Open, tinned cable ends (red + / black -).
• Cable Length: 1000 mm.
• Certification Mark: ECE R10.
