GRANIT LED Manoeuvring Light 11139860 | 36W | 2411 lm | IP69K | Close Range

The GRANIT 11139860 LED maneuvering lights are designed for close-range illumination, essential for short-distance operations. This 36 W angular unit delivers an effective luminous flux of 2411 lumens from 6 LEDs. It is ECE R23 (reverse light) approved and boasts the highest protection rating (IP6K9K), making it suitable for both left and right installation in challenging operating environments.

Functional Specifications and Performance

• Light Function: Close-range illumination.
• Effective Luminous Flux: 2411 lumens (lm).
• Theoretical Luminous Flux: 4320 lumens (lm).
• Power Consumption: 36 Watts (W).
• LED Quantity: 6.
• Lamp Type: LED.
• Rated Voltage: 12 / 24 Volts (V).
• Light Tone: 5700 - 6500 Kelvin (K).
• Thermal Range: -40 / +50 °C.

Technical and Structural Data

• Part Number: 11139860.
• Shape: Angular.

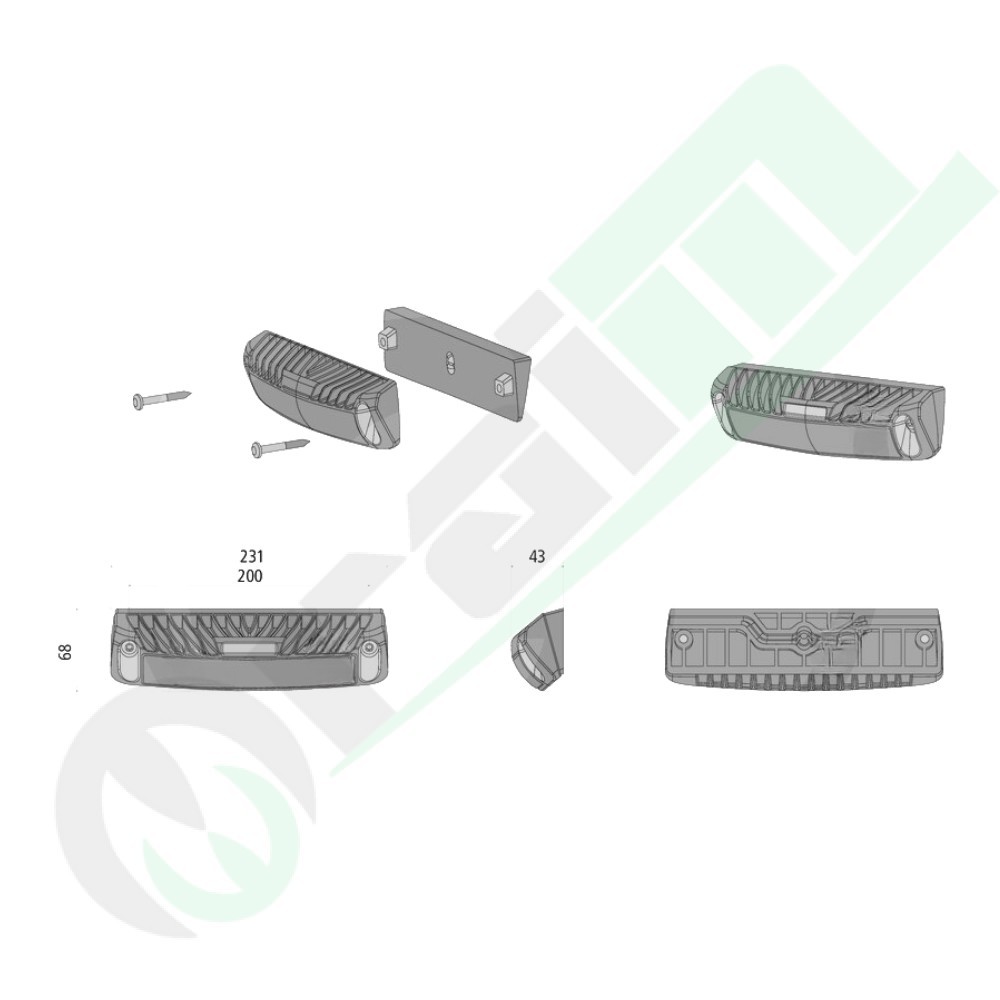

• Dimensions W x H x D: 231 x 62 x 35 mm.
• Body Color: black.
• Material (Housing): aluminium.
• Material (Lens Cover): plastic material.
• Bulbs Included: Yes.
• Installation Position: left / right.
• Mounting Method: screwed.
• Protection Type: IP67 / IP6K9K.
• Connection: Open cable ends.
• Cable Length: Not specified.
• Certification Mark: ECE R23; ECE R10; CISPR 25.
