GRANIT LED Work Light 12362099 | 1727 lm | Safety Light R65 | IP69K | Osram

The GRANIT 12362099 LED work light is a multifunctional angular unit that combines powerful illumination with an ECE R65/R23 approved safety light. It provides an effective luminous flux of 1727 lumens, using 6x 5W Osram LEDs and 21x 1.5W Osram LEDs. The IP6K9K protection rating and broad certifications make it ideal for vehicles requiring both operational lighting and signaling.

Functional Specifications and Performance

• Light Function: Projector, Safety Light.
• Effective Luminous Flux: 1727 lumens (lm).
• Theoretical Luminous Flux: 2880 lumens (lm).
• Power Consumption: 61.5 Watts (W).
• Operating Power (Nominal): 22.7 Watts (W).
• Current Draw: 1.77A at 12V / 0.94A at 24V.
• LED Quantity: 6x 5W Osram LED, 21x 1.5W Osram LED.
• Rated Voltage: 12 / 24 Volts (V).
• Voltage (Volts): 10 - 30.
• Light Tone: 5700 Kelvin (K).
• Thermal Range: -30℃ / +65℃.
• EMC: R10.

Technical and Structural Data

• Part Number: 12362099.
• Shape: Angular.

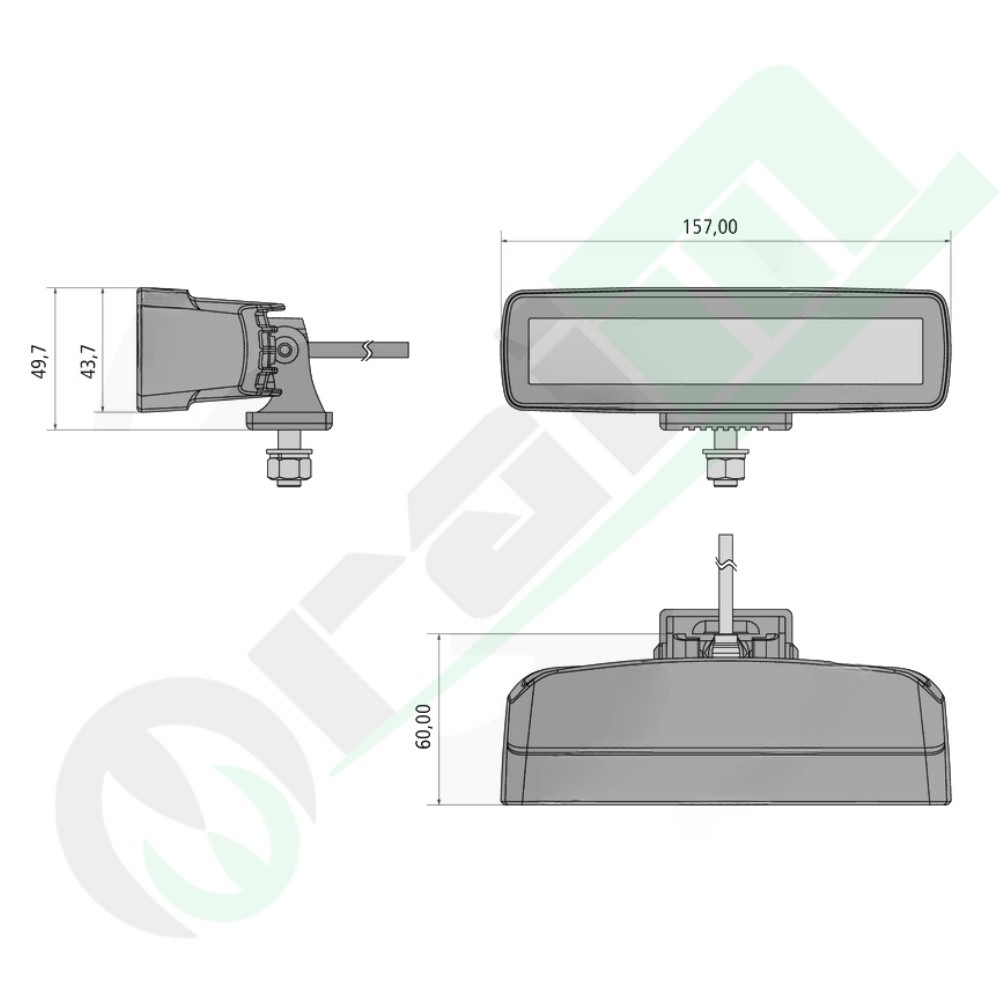

• Dimensions W x H x D: 157 x 60 x 43.7 mm.
• Body Material: Aluminium.
• Lamp Type: LED.
• Bulbs Included: Yes.
• Protection Type: IP68 / IP69K.
• Connection: Open cable ends.
• Cable Length: 500 mm.
• Certification Mark: ECE R23, R65, R10, CE UKCA/ROHS.
