GRANIT LED Work Light 19334965 | 2770 lm | IP69K | with Position Light

The GRANIT 19334965 LED work light is a 37.6 W angular unit that offers the dual function of a projector and a position light. With an effective luminous flux of 2770 lumens and an efficiency of 75.27 lm/W, it guarantees high performance. The IP69K protection rating and excellent radio interference suppression (EMC CISPR 25 Class 3) make it extremely reliable for use in demanding environments.

Functional Specifications and Performance

• Light Function: Projector.
• Additional Information: With position light.
• Effective Luminous Flux: 2770 lumens (lm).
• Theoretical Luminous Flux: 4335 lumens (lm).
• Luminous Flux (Efficiency): 75.27 lm/W.
• Power Consumption: 37.6 Watts (W).
• Operating Power (Nominal): 14.2 Watts (W).
• Current Draw (Min-Max): 1.2-3.1A at 12V / 0.59-1.57A at 24V.
• LED Quantity: 4.
• Rated Voltage: 12 / 24 Volts (V).
• Voltage (Volts): 10 - 30.
• Light Tone: 6,000 Kelvin (K).
• Thermal Range: -30 / +65°C.
• EMC: CISPR 25 class 3.

Technical and Structural Data

• Part Number: 19334965.
• Shape: Angular.

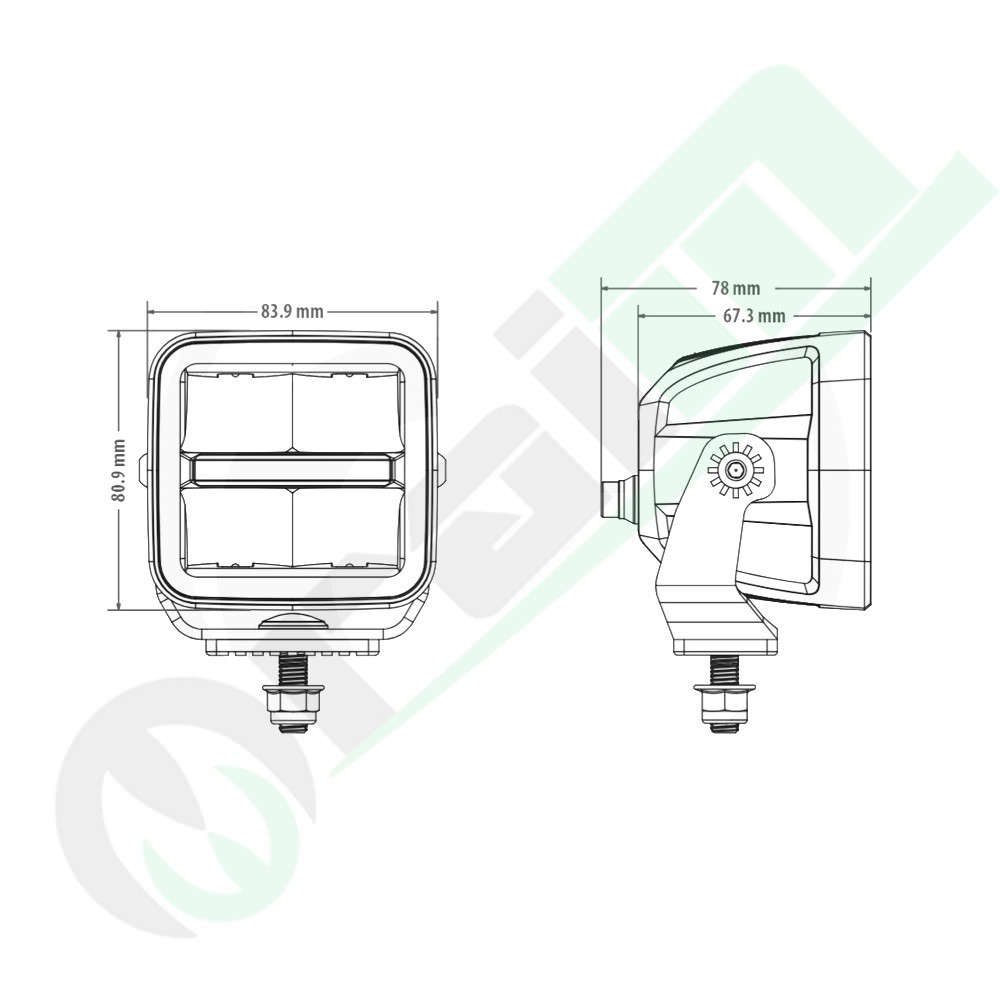

• Dimensions W x H x D: 83.9 x 80.9 x 67.3 mm.
• Body Material: Aluminium.
• Lamp Type: LED.
• Bulbs Included: Yes.
• Protection Type: IP68, IP69K.
• Connection: DT-4.
• Cable Length: 500 mm.
• Certification Mark: ECE R10 / CE / RoHS.
