GRANIT LED Work Light 12268636 | 40W | 3000 lm | IP68 |

The GRANIT 12268636 LED work light is a 40 W angular unit functioning as a projector, ideal for applications requiring a concentrated light beam. It provides an effective luminous flux of 3000 lumens from 8 LEDs. With a wide thermal range, IP68 protection rating, and EMC CISPR 25 Class 4 certification, it offers reliable performance in extreme conditions and is adaptable to several agricultural machine series.

Functional Specifications and Performance

• Light Function: Projector.
• Effective Luminous Flux: 3000 lumens (lm).
• Theoretical Luminous Flux: 3400 lumens (lm).
• Power Consumption: 40 Watts (W).
• LED Quantity: 8.
• Rated Voltage: 12 / 24 Volts (V).
• Voltage (Volts): 9 - 32.
• Light Tone: 6000 Kelvin (K).
• Thermal Range: -45℃ / +85℃.
• EMC: CISPR 25 class 4.

Technical and Structural Data

• Part Number: 12268636.
• Orig. Ref.: 2714, TL8400.
• Shape: Angular.

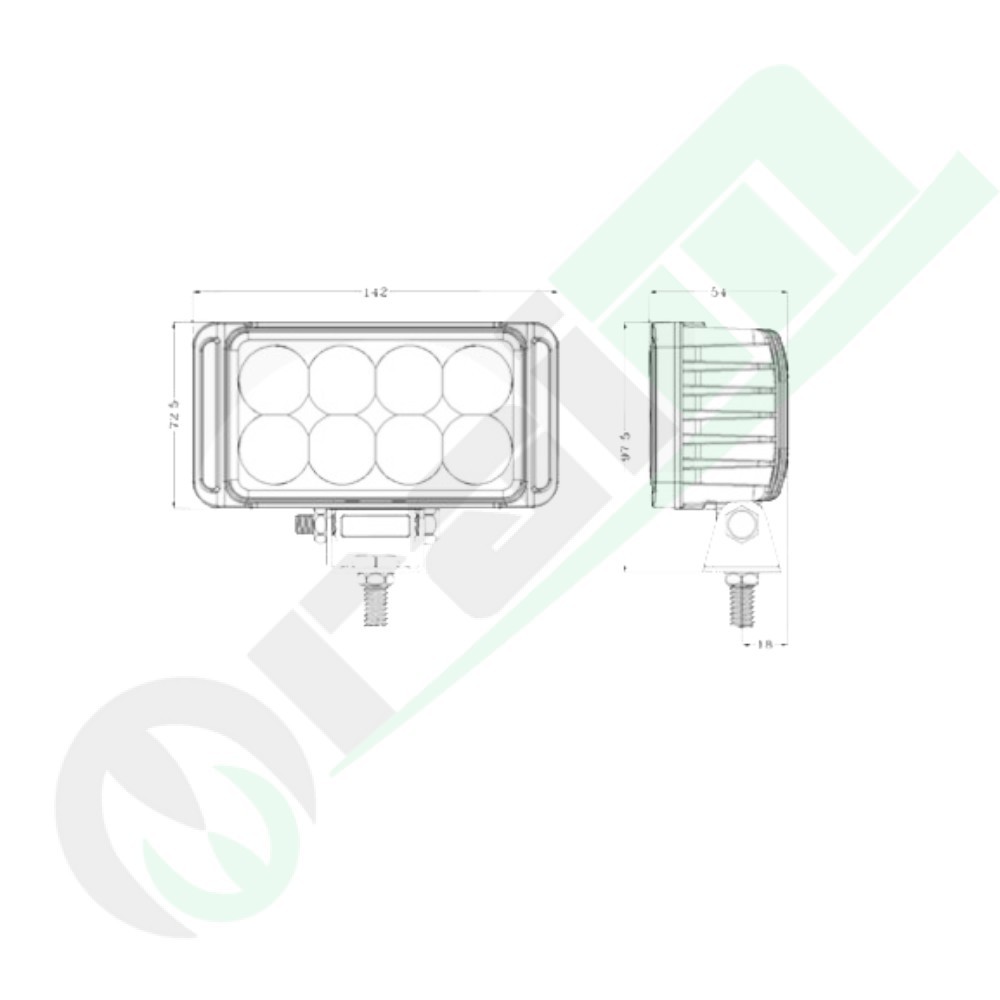

• Dimensions W x H x D: 142 x 97.5 x 54 mm.
• Width: 142 mm.
• Height: 97.5 mm.
• Depth: 54 mm.
• Body Material: Aluminium.
• Color: black.
• Lamp Type: LED.
• Bulbs Included: Yes.
• Mounting: Screw fixing.
• Protection Type: IP68.
• Connection: Cable.
• Cable Length: 500 mm.

Adaptable OEM Codes and Series

Also adaptable for models in the following series John Deere:

• 7000 Series: 7600, 7700, 7800.
• 7010 Series: 7610, 7710, 7810.
• 8030/8030T Series: 8230T, 8330T, 8430T.
