GRANIT LED Work Light 7070010296 | 27W | 3087 lm | IP69K | Long Range Illumination

The GRANIT 7070010296 LED work light is a 27 W angular unit specifically designed for long range illumination. It delivers an effective luminous flux of approximately 3087 lumens from 9 LEDs. The robust construction with an aluminum housing, stainless steel bracket, and IP6K9K protection rating ensures maximum durability in harsh operating environments.

Functional Specifications and Performance

• Light Function: Long range illumination.
• Effective Luminous Flux: ≈ 3087 lumens (lm).
• Theoretical Luminous Flux: ≈ 4950 lumens (lm).
• Power Consumption: 27 Watts (W).
• LED Quantity: 9.
• Lamp Type: LED.
• Rated Voltage: 12 / 24 Volts (V).
• Voltage (Volts): 10 - 30.
• Light Tone: 5000 - 6500 Kelvin (K).
• Thermal Range: -40 / +50 °C.

Technical and Structural Data

• Part Number: 7070010296.
• Shape: Angular.

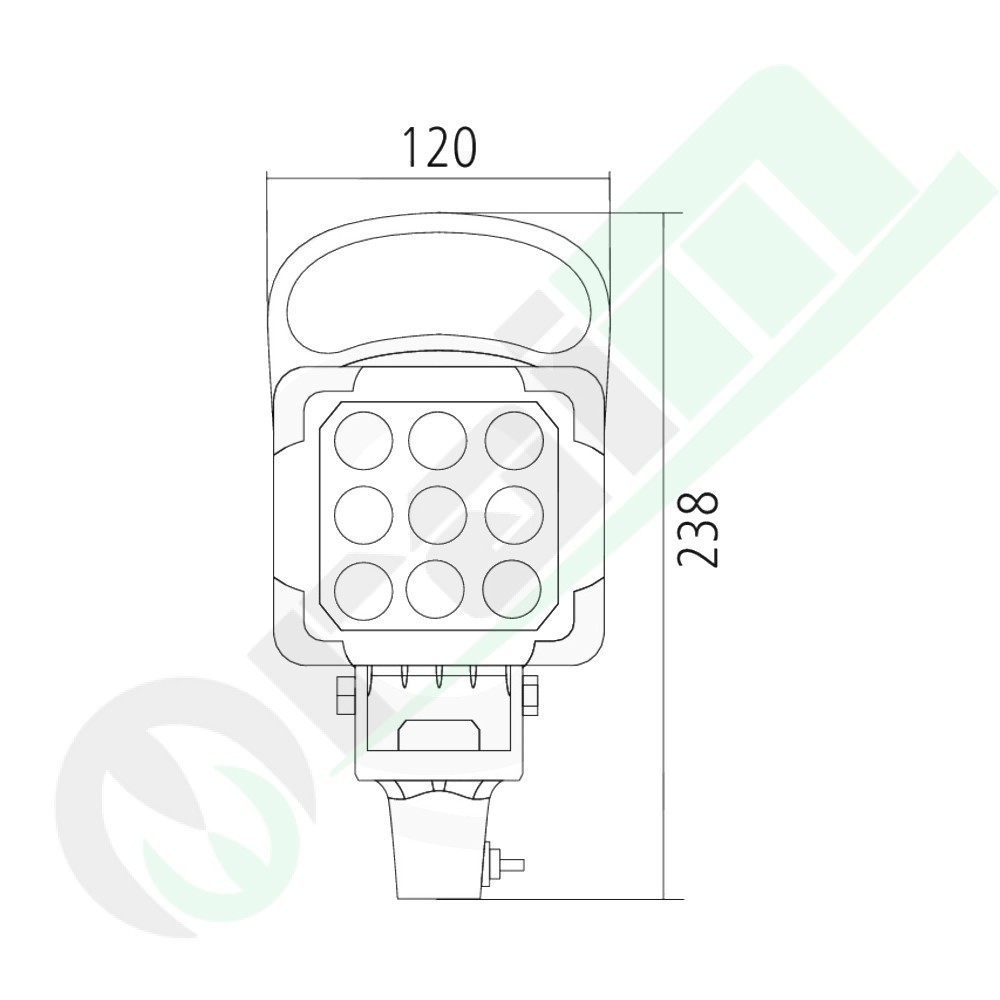

• Dimensions W x H x D: 120 x 238 x 61 mm.
• Height (Structural Dimension): 238 mm.
• Light Cutout (mm): 79 x 84.
• Material (Housing): aluminium.
• Material (Lens Cover): plastic material.
• Material (Mounting Bracket): stainless steel.
• Bulbs Included: yes.
• Mounting Method: vertical.
• Protection Type: IP6K9K.
• Connection: open, tinned cable ends (red + / black -).
• Cable Length: 400 mm.
• Certification Mark: ECE R10; CE.
