HELLA LED Work Light Flat Beam 500 | 7W | 550 lm | IP69K | Close Range Illumination

The HELLA LED work light with part number 1GA 995 193-001 is an angular spotlight, designed for close-range illumination in demanding work environments. It operates with a nominal voltage of 12/24 V (effective range 9 - 33 V) and offers an effective luminous flux of 550 lumens, with a light color of 6500 Kelvin (cool white light). It is extremely resistant to external factors, thanks to the IP67/IP6K9K protection rating, and integrates safety systems against reverse polarity, overvoltage, and overheating. The housing is made of plastic material, and the projector is E1 and EMC approved.

Technical and Performance Specifications

• Part Number: 1GA 995 193-001.
• Nominal Voltage (V): 12 / 24.
• Voltage (Volt): 9 - 33.
• Power Consumption (W): 7.
• Current Consumption (A): 0.6 (at 12 V) / 0.3 (at 24 V).
• Effective Luminous Flux (lm): 550.
• Light Color (K): 6500.
• Thermal Range (°C): -40 / +50.
• Protection Type: IP67 / IP6K9K.
• Test Mark: E1; EMC.
• Admissible: Protection and environmental safety (ex de minimis).
• Additional Information: Protection against reverse polarity, overvoltage, and overheating. With polarity protection diode.

Structural and Mounting Data

• Lamp Type: LED (Bulbs included: Yes).
• LED Quantity: 30.
• Light Function: Close-range illumination.
• Type: Flat Beam 500.
• Shape: Angular.
• Housing Material: Plastic material.
• Lens Material: Plastic material.
• Housing Color: Black.
• Mounting Type: Vertical.

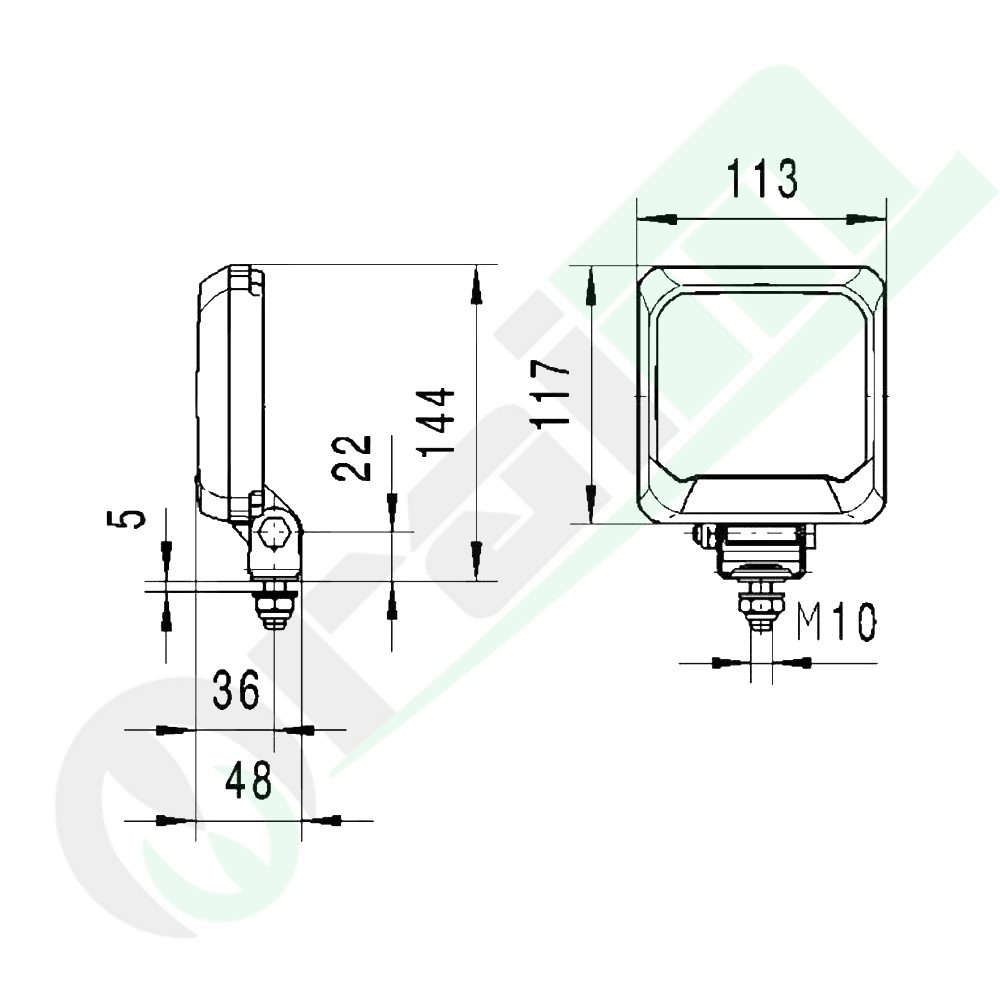

• Dimensions W x H x D (mm): 113 x 144 x 48.
• Light Aperture (mm): 95 x 80.
• Cable Length (mm): 2000.
