HELLA LED Work Light 11139620 | 19W | 1850 lm | IP69K | Long Range | Replaces 1GA 996 588-211

The HELLA LED work light with part number 11139620 is a high-performance angular spotlight, specifically designed for long-range illumination. It operates with a nominal voltage of 12/24 V and offers an effective luminous flux of 1850 lumens, with a light color of 6500 Kelvin (cool white light). The projector is extremely robust and sealed, as indicated by the IP6K7 and IP6K9K protection ratings, making it resistant to temporary immersion and high-pressure/high-temperature water jets. Mounting is vertical, and connection is via a German plug (Deutsch connector). Its compliance is certified by the ADR/GGVS and ECE R10 (EMC) test marks.

Technical and Performance Specifications

• Part Number: 11139620.
• Orig. Ref.: 1GA 996 588-211.
• Nominal Voltage (V): 12 / 24.
• Power Consumption (W): 19.
• Effective Luminous Flux (lm): 1850.
• Light Color (K): 6500.
• Protection Type: IP6K7 / IP6K9K.
• Test Mark: ADR / GGVS; ECE R10.

Structural and Mounting Data

• Lamp Type: LED (Bulbs included: Yes).
• LED Quantity: 4.
• Light Function: Long-range illumination.
• Shape: Angular.
• Housing Material: Plastic material.
• Lens Material: Plastic material.
• Housing Color: Black.
• Mounting Type: Vertical.
• Connection: German plug.

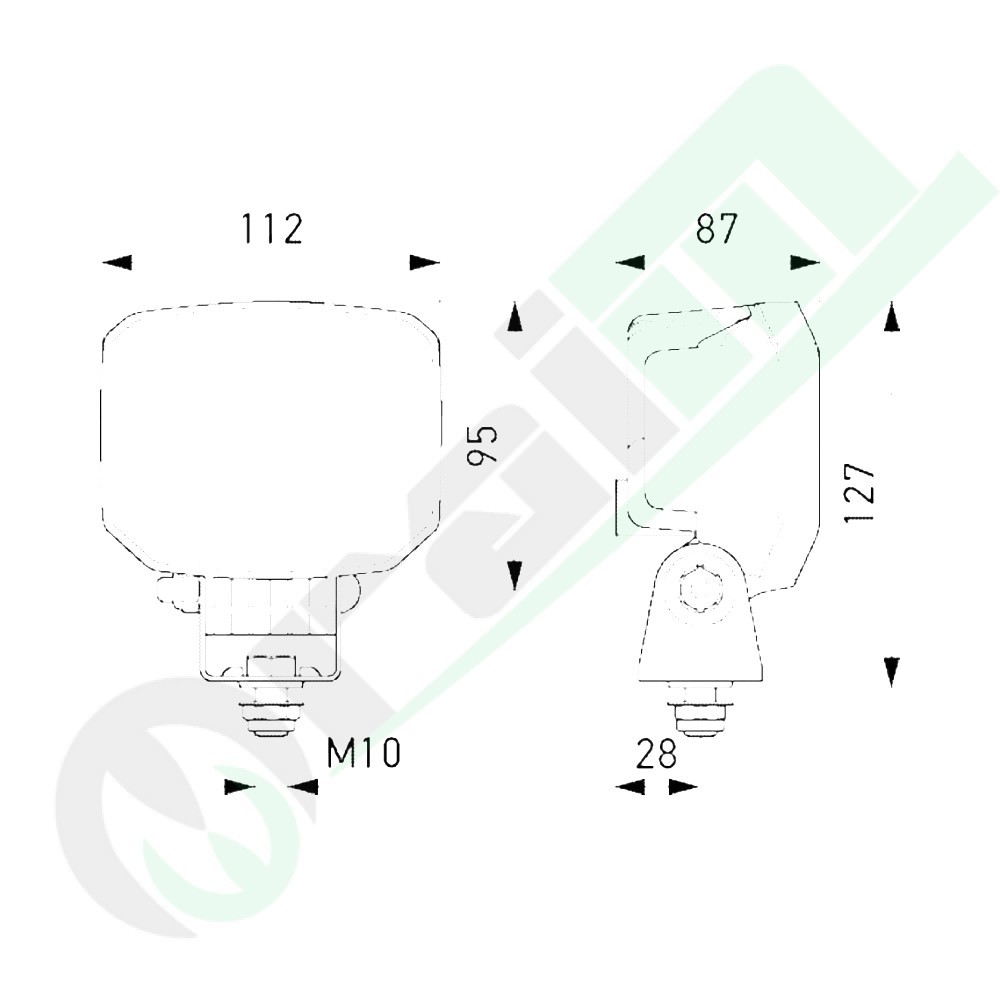

• Dimensions W x H x D (mm): 112 x 95 x 87.
• Structural Size (mm): 127.
