HELLA LED Work Light 11097639 | 19W | 1850 lm | IP69K | Close Range Illumination

The HELLA LED work light with part number 11097639 is a robust and highly efficient angular spotlight, designed for close-range illumination. It operates with a nominal voltage of 12/24 V and generates an effective luminous flux of 1850 lumens with a light color of 6500 Kelvin (cool white light). The projector has a high degree of protection (IP6K7 / IP6K9K), making it resistant to water and dust even in extreme conditions. The housing and lens are made of plastic material, and connection is handled via a German plug (Deutsch connector). The product is approved according to ADR/GGVS and ECE R10 (electromagnetic compatibility).

Technical and Performance Specifications

• Part Number: 11097639.
• Orig. Ref.: 1GA 996 588-201.
• Nominal Voltage (V): 12 / 24.
• Power Consumption (W): 19.
• Effective Luminous Flux (lm): 1850.
• Light Color (K): 6500.
• Protection Type: IP6K7 / IP6K9K.
• Test Mark: ADR / GGVS; ECE R10.

Structural and Mounting Data

• Lamp Type: LED (Bulbs included: Yes).
• LED Quantity: 4.
• Light Function: Close-range illumination.
• Shape: Angular.
• Housing Material: Plastic material.
• Lens Material: Plastic material.
• Housing Color: Black.
• Mounting Type: Screw-mounted.
• Connection: German plug.

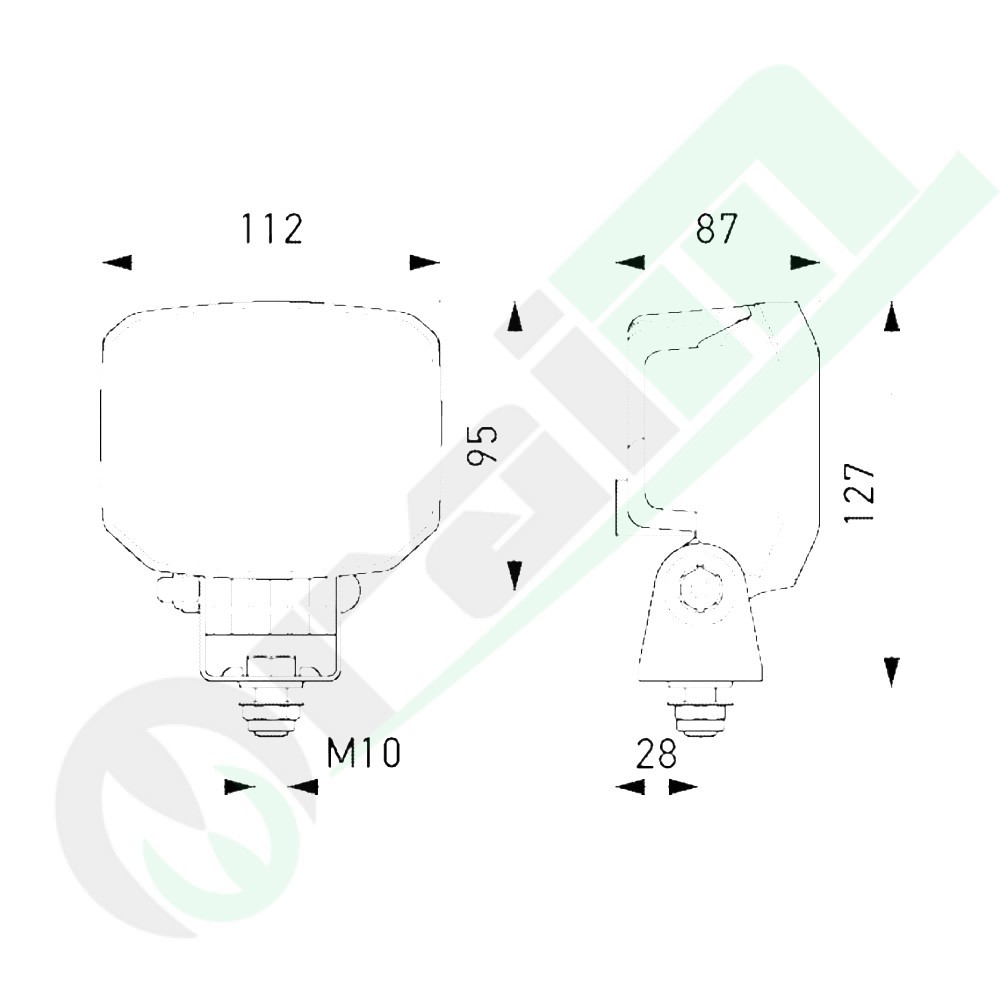

• Dimensions W x H x D (mm): 112 x 95 x 87.
• Structural Size (mm): 95.
