HELLA LED Work Light 11138937 | 12W | 1000 lm | IP69K | Long Range | Replaces 1GA 996 588-011

The HELLA LED work light with part number 11138937 is a robust angular spotlight, ideal for long-range illumination in commercial vehicles and agricultural machinery. It operates with a nominal voltage of 12/24 V and offers an effective luminous flux of 1000 lumens. It is equipped with 2 LEDs and features a cool white light color (6500 Kelvin). The IP6K7 / IP6K9K protection rating ensures maximum resistance against water and dust ingress. Mounting is screw-mounted, and the electrical connection is made via a German plug (Deutsch connector). The projector complies with the ADR/GGVS and ECE R10 (EMC) test marks.

Technical and Performance Specifications

• Part Number: 11138937.
• Orig. Ref.: 1GA 996 588-011.
• Nominal Voltage (V): 12 / 24.
• Power Consumption (W): 12.
• Effective Luminous Flux (lm): 1000.
• Light Color (K): 6500.
• Protection Type: IP6K7 / IP6K9K.
• Test Mark: ADR / GGVS; ECE R10.

Structural and Mounting Data

• Lamp Type: LED (Bulbs included: Yes).
• LED Quantity: 2.
• Light Function: Long-range illumination.
• Shape: Angular.
• Housing Material: Plastic material.
• Lens Material: Plastic material.
• Housing Color: Black.
• Mounting Type: Screw-mounted.
• Connection: German plug.

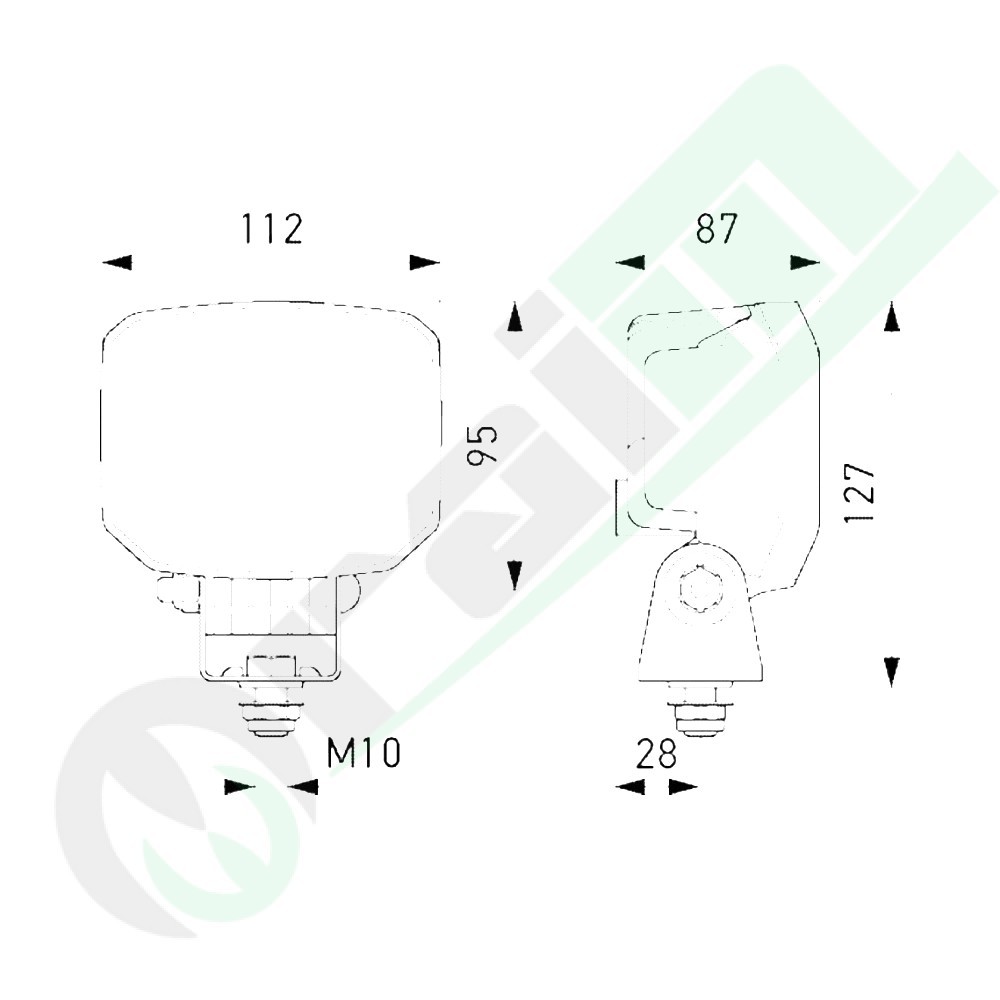

• Dimensions W x H x D (mm): 112 x 95 x 87.
• Structural Size (mm): 127.
