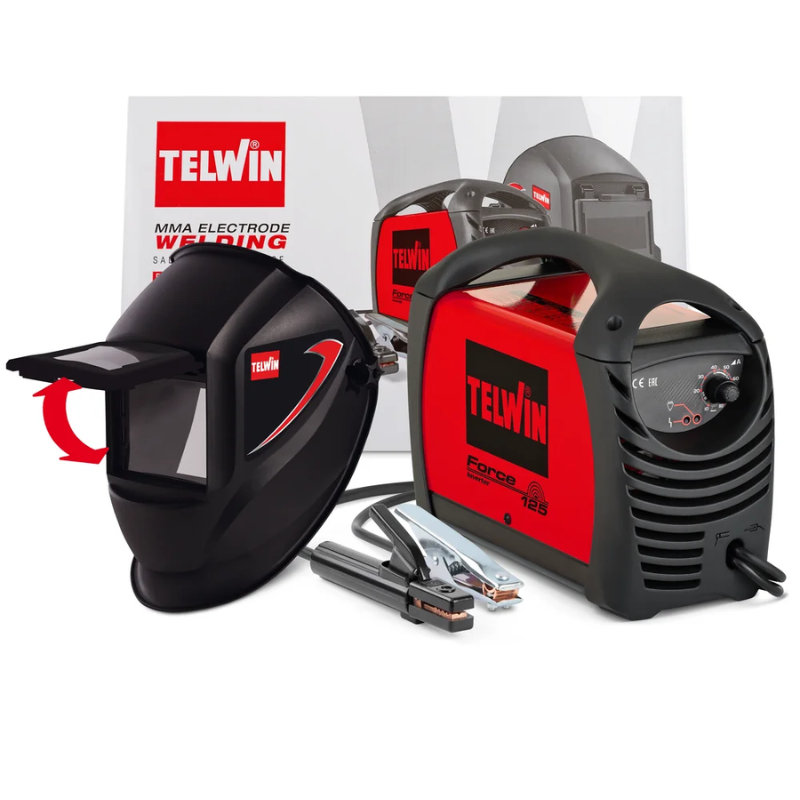

Telwin FORCE 125 MMA Inverter Welding Machine – 230V with TIGER Mask
Product code
815861
Certification
✅ Compliant with the EN60974-1 standard for MMA welding in direct current (DC)
Main features
✔ MMA electrode inverter welding machine in direct current (DC)
✔ Current adjustment range: 10 - 80 A
✔ Compact structure and reduced weight for maximum portability
✔ High current stability even in the presence of voltage fluctuations
✔ Integrated devices: Arc Force, Hot Start, Anti-Stick
✔ Multiple protections: thermostatic, overvoltage, undervoltage, overcurrent
✔ Compatible with motor generators (±15%)
✔ Supplied with TIGER welding mask and MMA welding accessories
Safety and protection
? TIGER mask included for safer welding safe
? Degree of protection IP21
? Electronic protection against overheating and overloads
Technologies and materials
✔ 82% efficiency for optimized energy consumption
✔ Power factor (cosφ) 0.6
✔ Compatible with electrodes: rutile, basic, stainless steel, cast iron, etc.
Areas of use
? Perfect for domestic work, mobile workshops, maintenance and small technical interventions
? Ideal for those looking for a practical and complete product, ready to use
Mains voltage
230V (single phase)
Frequency
50 / 60 Hz
DC current regulation range
10 - 80 A
%USE (use at 20°C)
50% @ 80 A
Max DC current EN60974-1
80 A @ 5%
Max no-load voltage
72 V
Max absorbed current
15 A
Max absorbed power
2.3 kW
Minimum motor generator power
3 kW
Efficiency
82 %
Power factor (cosφ)
0.6
Ø supported electrodes
1.6 - 2.5 mm
Degree of protection
IP21
Dimensions
30 x 12.5 x 22.5 cm
Weight
3.53 kg
