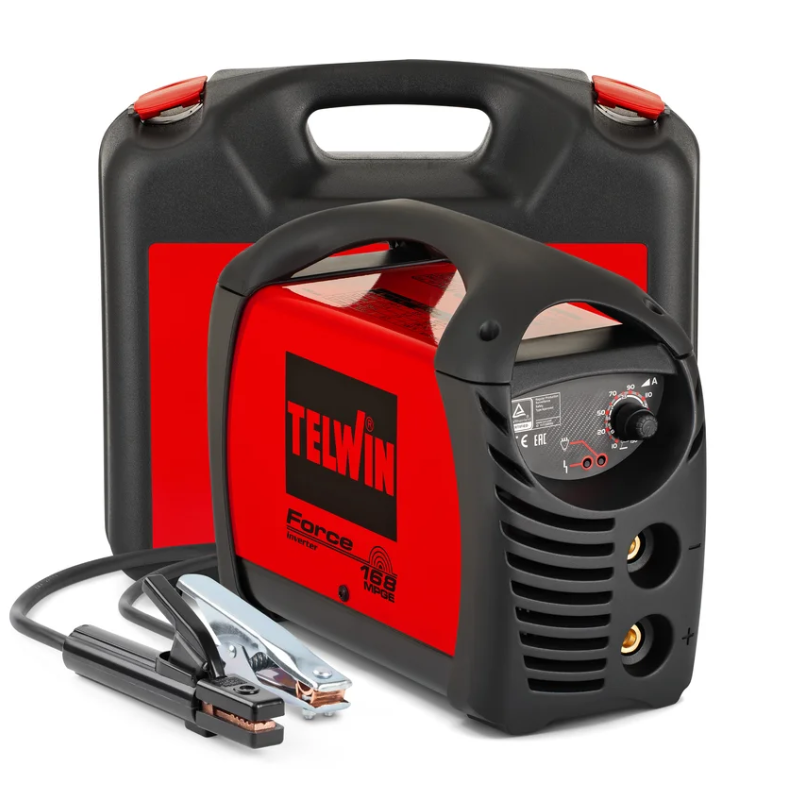

Telwin FORCE 168 MPGE MMA Inverter Welding Machine – 230V with Case
Product code
816211
Certification
✅ Compliant with the EN60974-1 standard for MMA welding in direct current (DC)
Main features
✔ MMA electrode inverter welding machine in direct current (DC)
✔ Current adjustment range: 10 - 150 A
✔ Compact and lightweight structure, also ideal for mobility
✔ Recommended for use with motor generators: high performance even with unstable power supplies
✔ Equipped with MPGE protections:
• waveform control
• peak filter
• oscillation stabilization
✔ Integrated devices: Arc Force, Hot Start, Anti-Stick
✔ Protections: thermostatic, overvoltage, undervoltage, overcurrent
✔ Complete with MMA welding accessories and plastic case
Safety and protection
? Degree of protection IP21
? Designed to operate in harsh environments, even with unstable mains voltages
? Integrated electronic safety systems for operator and equipment protection
Technologies and materials
✔ High energy efficiency (82%)
✔ Power factor (cosφ): 0.6
✔ Wide compatibility with electrodes: rutile, basic, stainless steel, cast iron
Sectors of use
? Perfect for construction, maintenance on construction sites, agricultural use and mobile workshops
? Ideal for professional welders who operate with generator power supply
Mains voltage
230 V (single phase)
Frequency
50 / 60 Hz
DC current regulation range
10 - 150 A
%USE (use at 20°C)
60% @ 150 A
Max. DC current EN60974-1
140 A @ 7%
Max. no-load voltage
72 V
Max. absorbed current
31 A
Max. absorbed power
4.1 kW
Minimum motor generator power
6 kW
Efficiency
82 %
Power factor (cosφ)
0.6
Ø supported electrodes
1.6 - 4 mm
Protection degree
IP21
Dimensions
38 x 42 x 17 cm
Weight
5.5 kg
