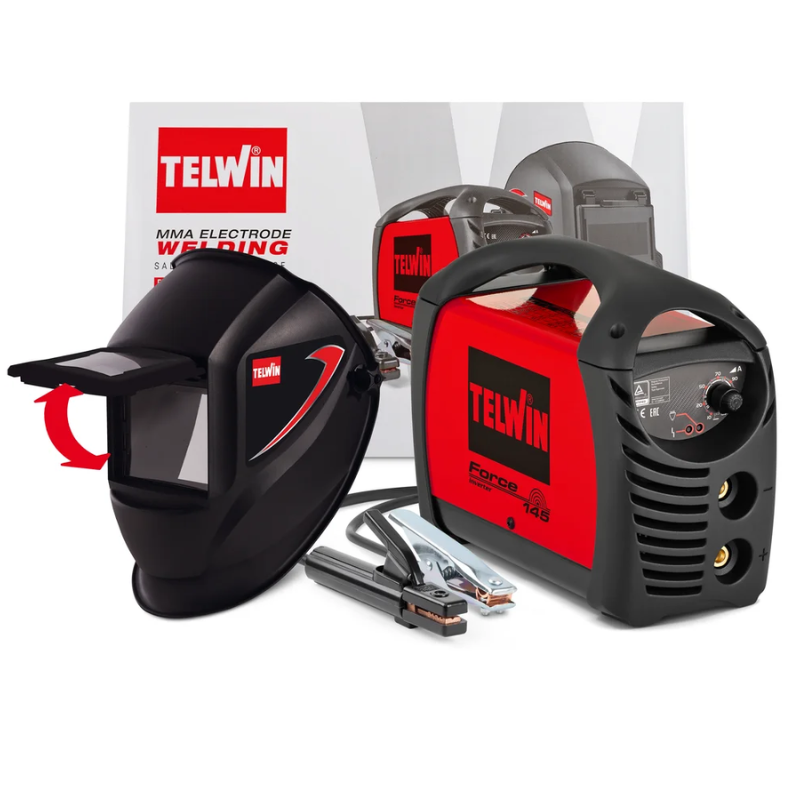

Telwin FORCE 145 MMA Inverter Welder – 230V with TIGER Mask

Telwin FORCE 145 MMA Inverter Welding Machine – 230V with TIGER Mask

Product code

815862

Certification

✅ Compliant with the EN60974-1 standard for MMA welding in direct current (DC)

Main features

✔ MMA electrode inverter welding machine in direct current (DC)

✔ Current adjustment range: 10 - 130 A

✔ Compact and lightweight structure, ideal for mobile use or in small spaces

✔ High stability of the welding current even with variations in the supply voltage

✔ Integrated devices: Arc Force, Hot Start, Anti-Stick

✔ Protections: thermostatic, overvoltage, undervoltage, overcurrent

✔ Compatible with motor generators (±15%)

✔ Equipped with TIGER welding mask and MMA accessories included

Safety and protection

? TIGER mask included for optimal protection during welding welding

? Degree of protection IP21

? Electronic protection system against overloads and overheating

Technologies and materials

✔ 82% efficiency for efficient use of energy

✔ Power factor (cosφ): 0.6

✔ Compatible with electrodes: rutile, basic, stainless steel, cast iron

Sectors of use

? Suitable for domestic use, maintenance, technical interventions and light machining

? Ideal for craftsmen and hobbyists looking for high performance in a compact machine

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 130 A

%USE (use at 20°C)

60% @ 125 A

Max. DC current EN60974-1

125 A @ 7%

Max. no-load voltage

72 V

Max absorbed current

27 A

Max absorbed power

3.5 kW

Minimum motor generator power

5 kW

Efficiency

82 %

Power factor (cosφ)

0.6

Ø supported electrodes

1.6 - 3.2 mm

Protection degree

IP21

Dimensions

30 x 12.5 x 22.5 cm

Weight

4.21 kg
