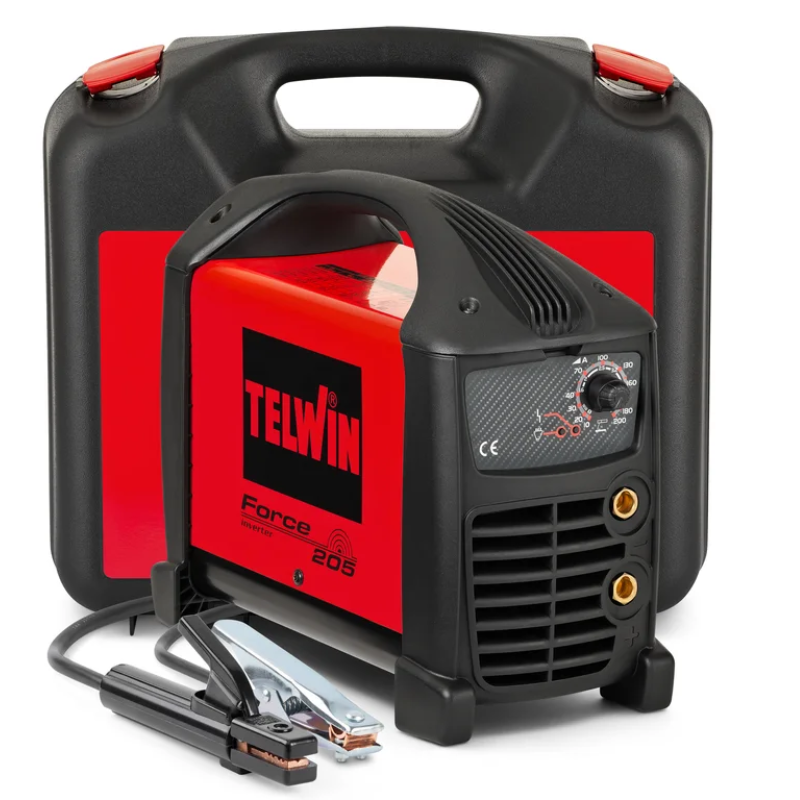

Telwin FORCE 205 MMA Inverter Welding Machine – 230V with Plastic Case
Product code
816238
Certification
✅ Compliant with the EN60974-1 standard for MMA welding in direct current (DC)
Main features
✔ MMA electrode inverter welding machine in direct current (DC)
✔ Current adjustment range: 10 - 200 A
✔ Robust and compact, with raised structure against dust, water and dirt
✔ High current stability even in the presence of mains voltage fluctuations
✔ Integrated devices: Arc Force, Hot Start, Anti-Stick
✔ Integrated protections: thermostatic, overvoltage, undervoltage, overcurrent
✔ Compatible with motor generators (±15%)
✔ Supplied with MMA welding accessories and plastic case
Safety and protection
? Reinforced structure for environments of difficult work
? Degree of protection IP23: resistance to dust and water splashes
? Electronics protected from overloads and network anomalies
Technologies and materials
✔ Efficiency of 86% for high energy efficiency
✔ Power factor (cosφ) 0.7
✔ Can be used with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Areas of use
? Workshops, carpentry, industrial maintenance and construction sites
? Also ideal for intensive professional use
? Perfect for environments exposed to dirt and dust
Mains voltage
230V (single phase)
Frequency
50 / 60 Hz
DC current regulation range
10 - 200 A
%USE (use at 20°C)
95% @ 180 A
Max DC current EN60974-1
180 A @ 20%
Current at 35% DC
130 A
Continuous DC current
110 A
Max no-load voltage
82 V
Max absorbed current
36 A
Absorbed current at 60%
19 A
Max absorbed power
5.6 kW
Absorbed power at 60%
3.1 kW
Minimum generator power
8 kW
Efficiency
86 %
Power factor (cosφ)
0.7
Ø supported electrodes
1.6 - 4 mm
Protection degree
IP23
Dimensions
32.5 x 42.5 x 17.5 cm
Weight
5.81 kg
