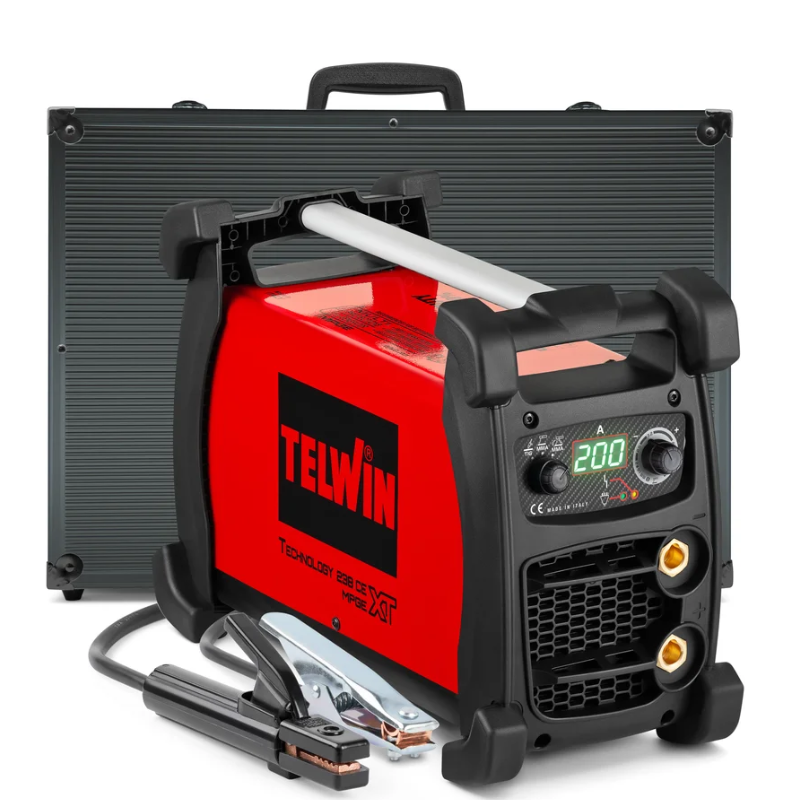

Telwin TECHNOLOGY 238 XT CE/MPGE MMA-TIG Inverter Welder – 230V with Aluminum Case

Telwin TECHNOLOGY 238 XT CE/MPGE MMA-TIG Inverter Welding Machine – 230V with Aluminum Case

Product code

816258

Certification

✅ Compliant with the EN60974-1 standard for MMA and TIG DC welding with scratch striking

Main features

✔ MMA and TIG electrode inverter welding machine in direct current (DC)

✔ TIG scratch striking

✔ Can be used with rutile, basic, stainless steel, cast iron and cellulose electrodes

✔ MPGE technology: waveform control, anti-peak filter, oscillation stabilization

✔ Robust, shock-resistant and compact

✔ Display for viewing the welding current

✔ Arc Force and Hot Start adjustment based on the electrode

✔ Anti-Stick device

✔ Quick connector Ø 50 mm

✔ Complete with MMA welding accessories and aluminum case

Safety and protection

? High performance even with unstable power supplies (motor generators ±15%)

? Integrated protections: thermostatic, overvoltage, undervoltage, overcurrent

? IP23 protection level against dust and water splashes

Technologies and materials

✔ High efficiency: 87%

✔ Excellent current stability even with voltage fluctuations

✔ Power factor (cosφ): 0.7

Sectors of use

? Ideal for maintenance, carpentry, construction sites, workshops and work in difficult environments

? Perfect for use with generators

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

5 - 200 A

Max. DC current EN60974-1

200 A @ 35%

Current 35% DC

200 A

Average current in DC

140 A

Max. no-load voltage

80 V

Max. absorbed current

39 A

Absorbed current at 60%

26 A

Max. absorbed power

6.3 kW

Absorbed power at 60%

4.1 kW

Minimum motor generator power

10 kW

Efficiency

87 %

Power factor (cosφ)

0.7

Ø supported electrodes

1.6 - 4 mm

Protection degree

IP23

Dimensions

37.5 x 50 x 22 cm

Weight

10.55 kg
