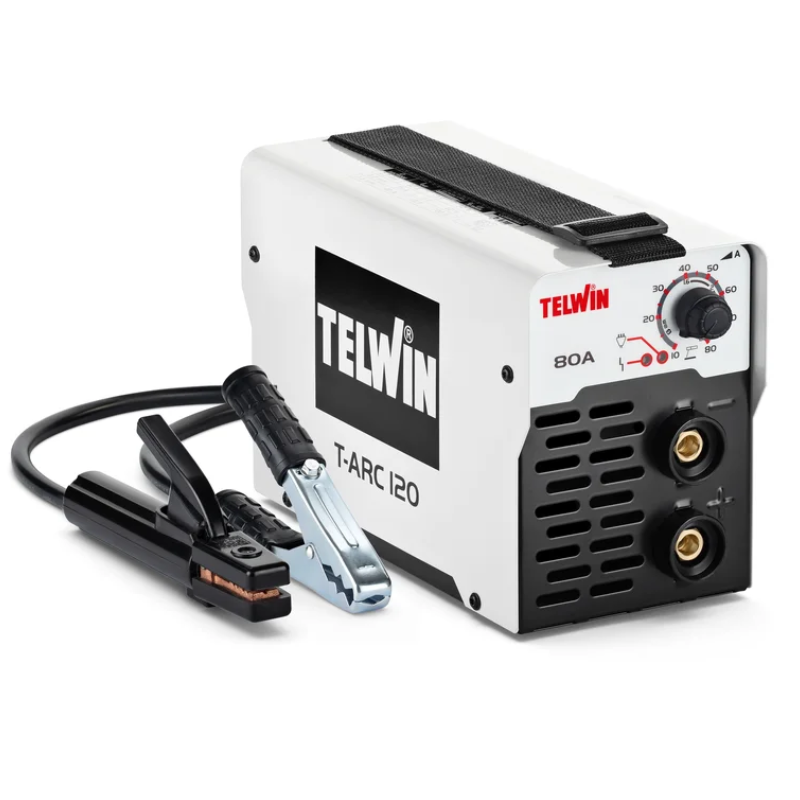

Telwin T-ARC 1 20 – 80 A Inverter Welding Machine | 230 V

Telwin T-ARC 120 Inverter Welding Machine – 80 A | 230 V

Product code

816165

Certification

✅ Compliant with the EN60974-1 standard for MMA electrode welding in direct current (DC)

Main features

✔ Compact and lightweight inverter MMA electrode welding machine in direct current

✔ Compatible with rutile, basic, stainless steel, cast iron electrodes, etc.

✔ Welding current stability even in the presence of variations in the supply voltage

✔ Equipped with advanced devices: arc force, hot start and anti-stick

✔ Complete with welding accessories

Description

• Single-phase power supply 230 V – 50/60 Hz

• DC current adjustment range: 10 - 80 A

• Ideal for light and medium welding jobs, both at home and in the professional sector

• Also suitable for use with a motor generator (tolerance +/- 15%)

• Includes protections against overvoltage, undervoltage, overcurrent and thermostatic protection

Safety and protection

? IP21 protection rating for use in environments with low exposure to humidity

? Integrated protection against overvoltage, overcurrent and overheating

? Maximum safety thanks to active control of operating conditions

Technologies and materials

✔ High efficiency inverter with 82% efficiency

✔ Power factor (cosφ) of 0.6 for optimized energy use

✔ Robust structure with compact dimensions: 28 x 12.5 x 18 cm

Sectors of use

? Mechanical workshops and maintenance work

? Agricultural and construction site applications

? Also ideal for advanced hobbyists and small craftsmen

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 80 A

Use at 20°C (Duty Cycle)

50% @ 80 A

Max. DC current EN60974-1

80 A @ 5%

Max. no-load voltage

72 V

Max. absorbed current

15 A

Max. absorbed power

2.3 kW

Minimum generator power

3 kW

Efficiency

82 %

Power factor power (cosφ)

0.6

Ø electrodes supported

1.6 - 2.5 mm

Protection degree

IP21

Dimensions

28 x 12.5 x 18 cm

Weight

3.9 kg
