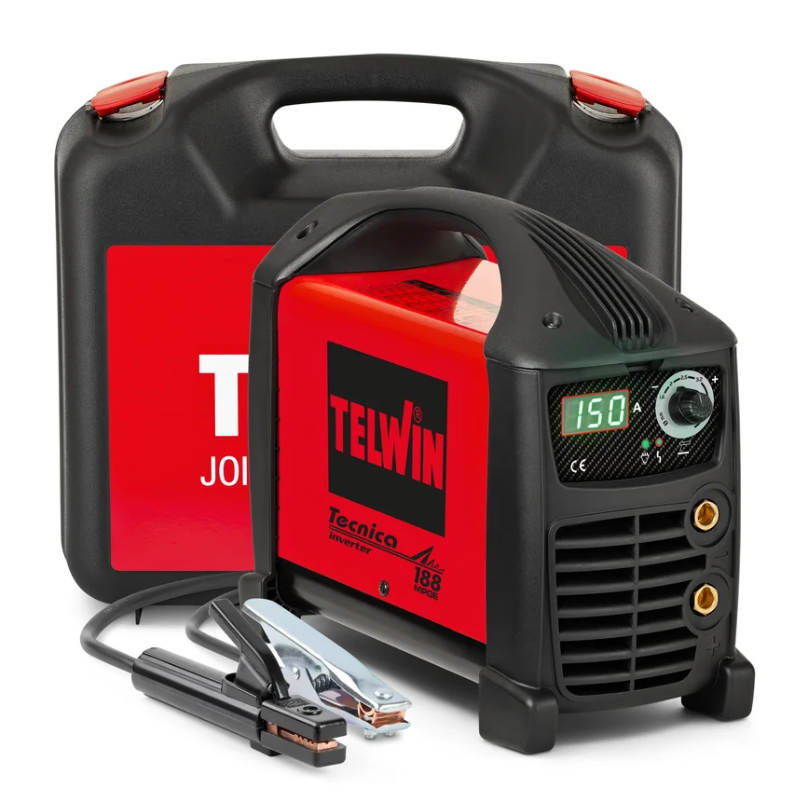

Telwin TECNICA 188 MPGE MMA-TIG Inverter Welder – 230V with Case

Telwin TECNICA 188 MPGE MMA-TIG Inverter Welder – 230V with Case

Telwin
816223

Telwin TECNICA 188 MPGE MMA-TIG Inverter Welder – 230V with Case

Out of Stock
€309.99
Tax included
Quantity

Processing in approximately 3-4 working days
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Telwin TECNICA 188 MPGE MMA-TIG Inverter Welder – 230V with Case

Product code

816223

Certification

✅ Compliant with the EN60974-1 standard for MMA and TIG DC welding with scratch striking

Main features

✔ MMA and TIG electrode inverter welder in direct current (DC)

✔ TIG scratch striking

✔ Sturdy and raised structure for greater resistance to dust, water and dirt

✔ Digital display for viewing the set current

✔ MPGE technology for high performance even with unstable power supplies

✔ Compact and lightweight, easily transportable

✔ Devices: Arc Force, Hot Start, Anti-Stick

✔ Compatible with motor generators (±15%)

✔ Supplied with MMA welding accessories and plastic case

Safety and protection

? Multiple MPGE protections: waveform control, peak filter, oscillation stabilization

? Integrated protections: thermostatic, overvoltage, undervoltage, overcurrent

? IP23 protection rating for demanding work environments

Technologies and materials

✔ High energy efficiency (86%)

✔ Power factor (cosφ): 0.7

✔ Current stability even in the event of voltage variations

Sectors of use

? Ideal for maintenance work, construction sites, carpentry, workshops and advanced hobbyists

? Perfect for use in environments with non-constant power supply (e.g. generators)

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 150 A

%USE (use at 20°C)

90% @ 150 A

Max. DC current EN60974-1

140 A @ 25%

Current 35% DC

125 A

Average DC current

100 A

Max. no-load voltage

82 V

Max. absorbed current

28 A

Absorbed current at 60%

17 A

Max. absorbed power

4.2 kW

Absorbed power at 60%

2.8 kW

Minimum generator power

6 kW

Efficiency

86 %

Power factor (cosφ)

0.7

Ø electrodes supported

1.6 - 4 mm

Protection rating

IP23

Dimensions

38 x 42 x 17 cm

Weight

6.030 kg
