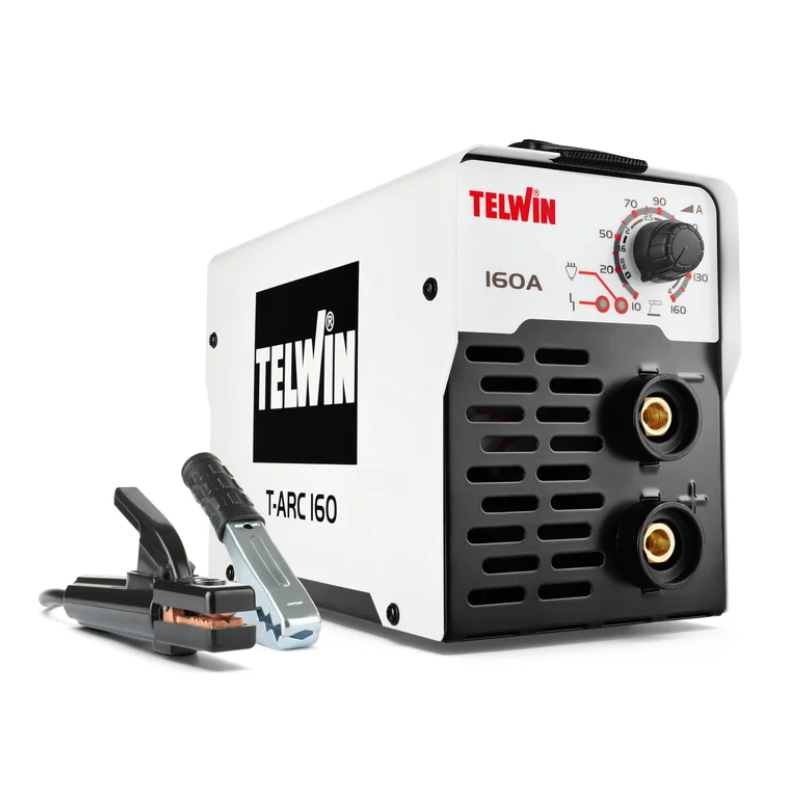

Telwin T-ARC 160 Inverter Welder – 160 A | 230 V

Telwin T-ARC 160 Inverter Welding Machine – 160 A | 230 V

Product code

816161

Certification

✅ Compliant with the EN60974-1 standard for MMA electrode welding in direct current (DC)

Main features

✔ Compact and lightweight inverter MMA electrode welding machine in direct current

✔ Compatible with rutile, basic, stainless steel, cast iron electrodes, etc.

✔ High stability of the welding current even in the event of variations in the mains voltage

✔ Equipped with arc force, hot start and anti-stick functions

✔ Complete with welding accessories

Description

• Single-phase power supply 230 V – 50/60 Hz

• Current adjustment range: 10 - 160 A in DC

• Ideal for welding jobs on a wide range of materials

• Also suitable for use with a motor generator (+/- 15%)

• Integrated protections against overvoltage, undervoltage, overcurrent and thermal

Safety and protection

? IP21 protection rating for dry environments

? Complete protection systems to ensure safe and reliable use

? Robust construction to ensure continuous and long-lasting use

Technologies and materials

✔ High-efficiency inverter with 82% efficiency

✔ Power factor (cosφ) of 0.6

✔ Compact dimensions: 28 x 12.5 x 18 cm

Areas of use

? Industrial and agricultural maintenance

? Mechanical workshops and light carpentry work

? Craftsmen, professionals and demanding hobbyists

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 160 A

Use at 20°C (Duty Cycle)

75% @ 160 A

Max DC current EN60974-1

140 A @ 20%

Current at 35% DC

105 A

Typical continuous current

70 A

Max no-load voltage

72 V

Max absorbed current

31 A

Absorbed current at 60%

14 A

Max absorbed power

4.5 kW

Power absorbed at 60%

2 kW

Minimum motor generator power

6 kW

Efficiency

82 %

Power factor (cosφ)

0.6

Ø supported electrodes

1.6 - 4 mm

Protection degree

IP21

Dimensions

28 x 12.5 x 18 cm

Weight

4.0 kg
