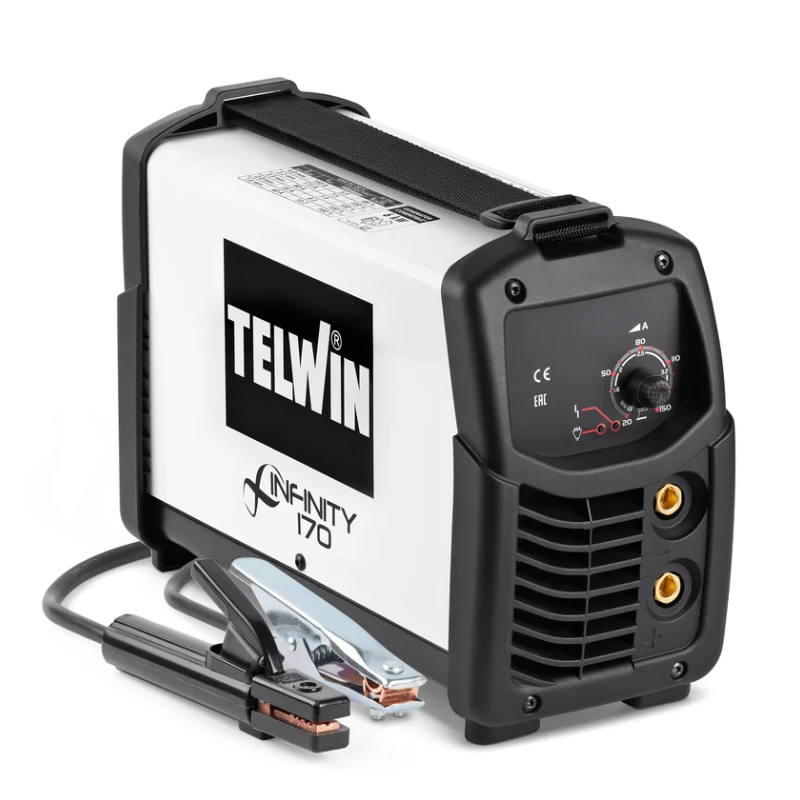

Telwin INFINITY 170 MMA and TIG Inverter Welder – 150 A | 230 V

Telwin INFINITY 170 MMA and TIG Inverter Welding Machine – 150 A | 230 V

Product code

816124

Certification

✅ Compliant with the EN60974-1 standard for MMA and TIG welding in direct current (DC) with scratch striking

Main features

✔ MMA and TIG electrode inverter welding machine in direct current with scratch striking

✔ Compatible with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.

✔ High stability of the welding current even in the event of variations in the mains voltage

✔ Equipped with arc force, hot start and anti-stick devices

✔ Complete with welding accessories

Description

• Single-phase power supply 230 V – 50/60 Hz

• Current adjustment range: 20 - 150 A in DC

• Designed for professional welding and light TIG and MMA work

• Works with motor generators (tolerance +/- 15%)

• Protection against overvoltage, undervoltage, overcurrent and overheating

• IP23 protection rating for use in dustier and more humid environments

Safety and protection

? IP23 protection rating, ideal for dusty and humid work environments

? Complete protection system to ensure safe and long-lasting use

? Accessories included for safe and precise welding

Technologies and materials

✔ 87% efficiency for efficient use energy

✔ Power factor (cosφ) of 0.7

✔ Compact construction with dimensions of 35.5 x 14.5 x 24 cm

Areas of use

? Workshops and maintenance work

? Hobbyists and craftsmen

? Professional and light welding applications, both MMA and TIG

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current adjustment range

20 - 150 A

Max. DC current EN60974-1

140 A @ 25%

Current 35% DC

105 A

DC current

80 A

Max. no-load voltage

75 V

Max. absorbed current

28 A

Max. absorbed power

4.5 kW

Power absorbed at 60%

2 kW

Minimum motor generator power

6 kW

Efficiency

87 %

Power factor (cosφ)

0.7

Ø supported electrodes

1.6 - 4 mm

Protection degree

IP23

Dimensions

35.5 x 14.5 x 24 cm

Weight

4.94 kg
