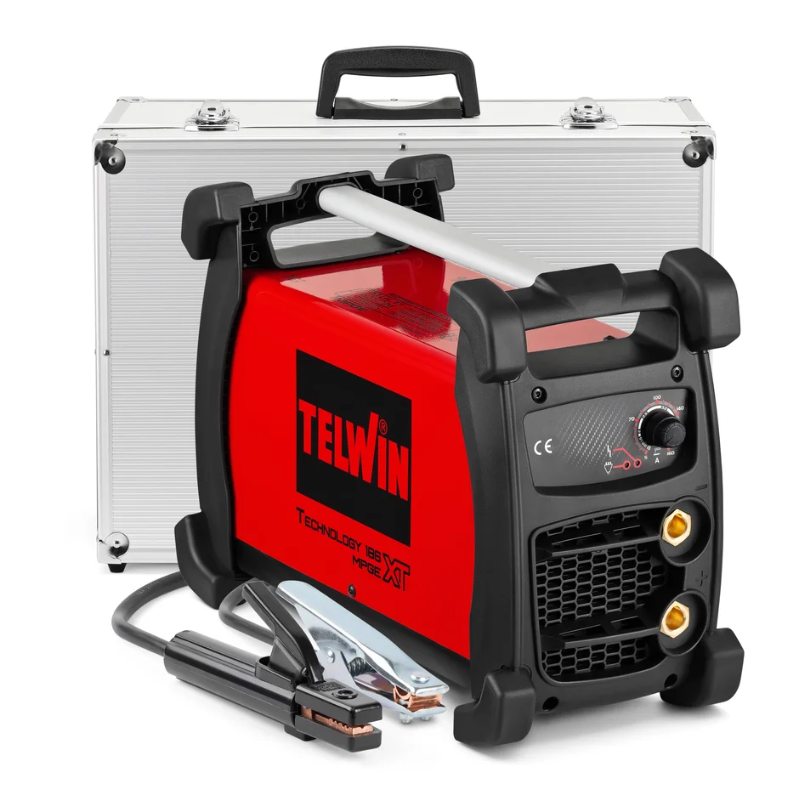

Telwin TECHNOLOGY 186 XT MPGE MMA-TIG Inverter Welder – 230V with Aluminum Case

Telwin TECHNOLOGY 186 XT MPGE MMA-TIG Inverter Welding Machine – 230V with Aluminum Case

Product code

816250

Certification

✅ Compliant with the EN60974-1 standard for MMA and TIG DC welding with scratch striking

Main features

✔ MMA and TIG electrode inverter welding machine in direct current (DC)

✔ TIG scratch striking

✔ Compact and lightweight, with reduced weight and dimensions

✔ Robust, shock resistant

✔ Quick connector Ø 50 mm

✔ MPGE technology: waveform control device, anti-peak filter, oscillation stabilization

✔ Digital display for current display

✔ Devices: Arc Force, Hot Start, Anti-Stick

✔ Compatible with motor generators (±15%)

✔ Complete with MMA welding accessories and aluminum case

Safety and protection

? MPGE protections to ensure high performance even with unstable power supply

? Integrated protections: thermostatic, overvoltage, undervoltage, overcurrent

? IP23 protection rating for harsh environments

Technologies and materials

✔ High efficiency of 90%

✔ Power factor (cosφ): 0.7

✔ Excellent current stability in all voltage conditions

Sectors of use

? Ideal for professional applications on construction sites, workshops, maintenance and field work

? Excellent for use with generator sets or in variable power supply conditions

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

5 - 160 A

Max. DC current EN60974-1

160 A @ 35%

Current 35% DC

160 A

Average DC current

120 A

Max. no-load voltage

60 V

Max. absorbed current

32 A

Absorbed current at 60%

18 A

Max. absorbed power

5 kW

Absorbed power at 60%

2.7 kW

Minimum motor generator power

7 kW

Efficiency

90 %

Power factor (cosφ)

0.7

Ø supported electrodes

1.6 - 4 mm

Protection degree

IP23

Dimensions

37.5 x 50 x 22 cm

Weight

10.1 kg
