GRANIT Z50 Monoblock Hydraulic Distributor | 1x DA (A-B-T Connected) | 40 l/min | 250 bar

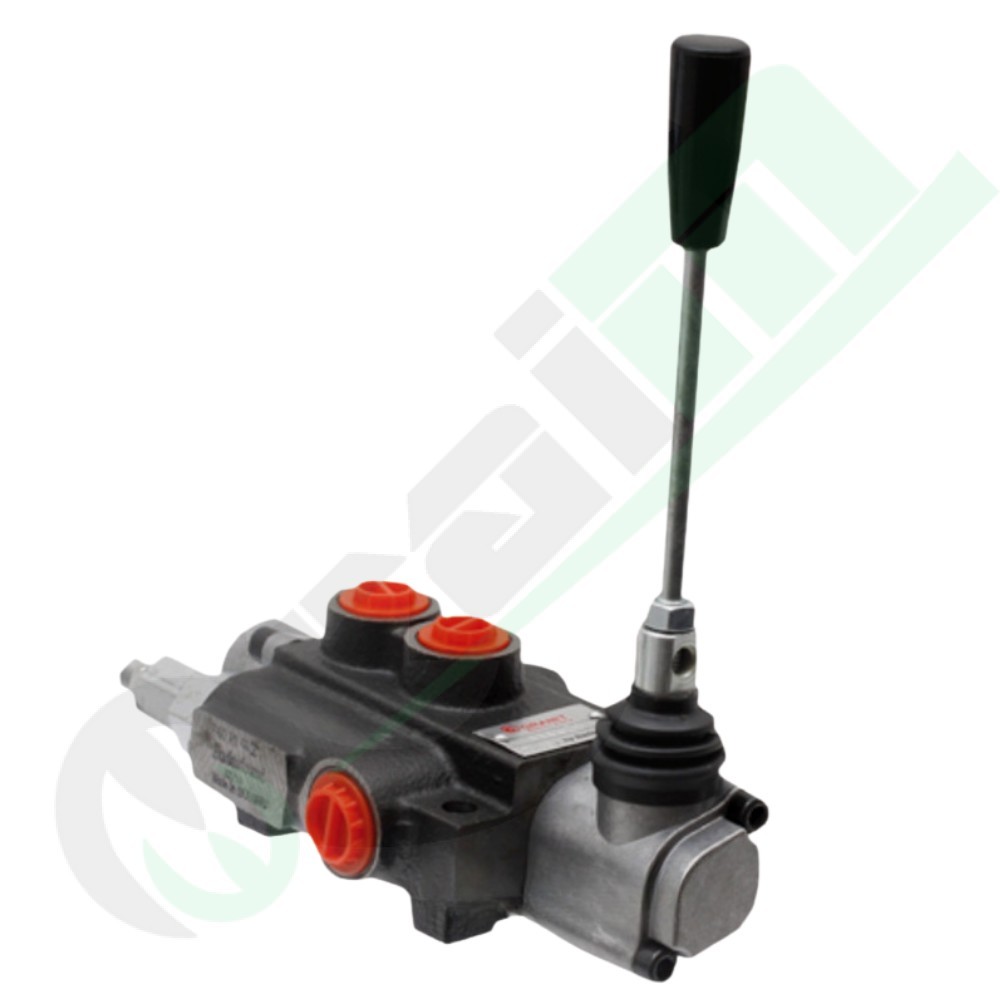

The GRANIT 87001340 hydraulic distributor is a 4/3 way monoblock directional valve with a single lever. It is designed to control a double-acting cylinder and is characterized by its central (neutral) position where all ports (A, B, P, T) are connected to each other (A-B-T connected). This allows the fluid to flow freely between the reservoir and the pump when the valve is not actuated, reducing the load on the pump. The lever returns to the neutral position actuated by a spring. Made of cast iron, it is ideal for hydraulic systems requiring a nominal pressure of 250 bar and a maximum flow rate of 40 l/min.

Functional and Hydraulic Specifications

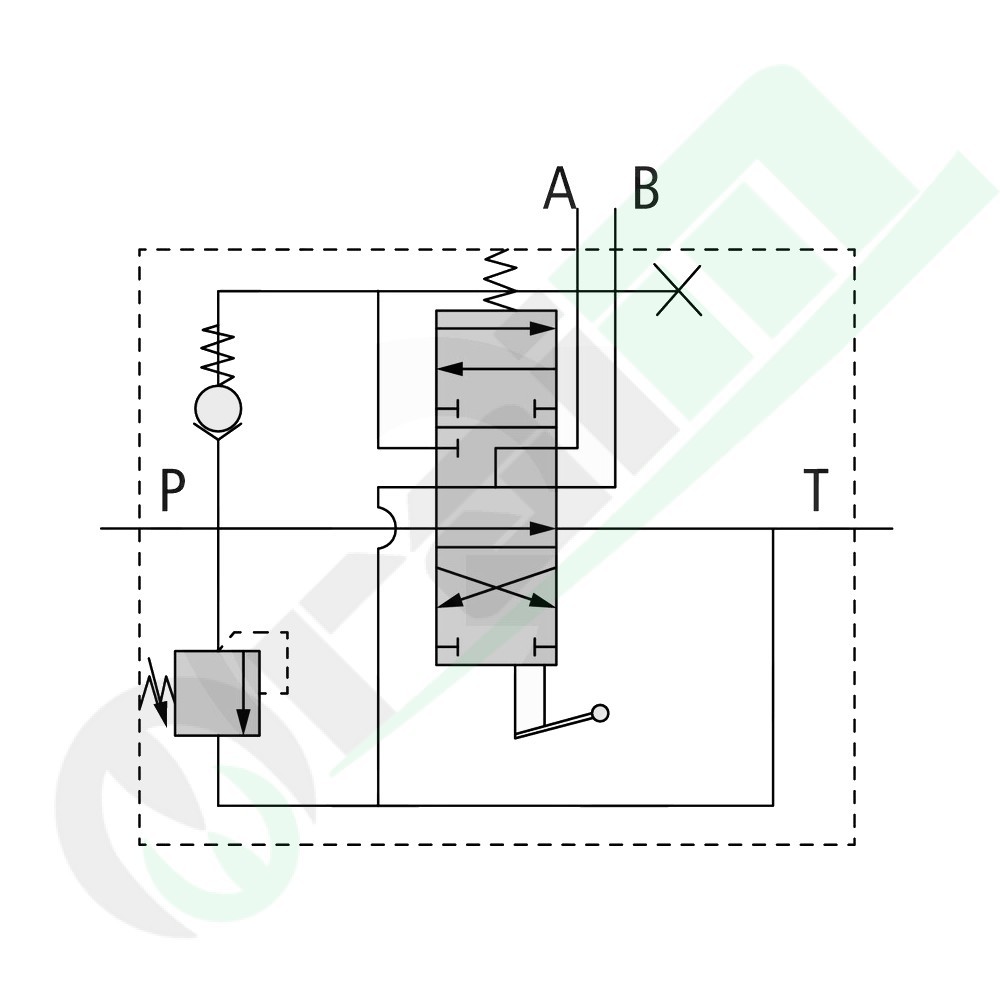

• Version: 4/3 way, 1 x double acting (A-B-T connected / spring return). This is the open center configuration.
• Lever Function: 1 x double acting.
• Flow Rate (l/min): 40.
• PN (Nominal Pressure): 250 bar.
• Adjustment Range (Maximum Pressure): 120-250 bar.
• Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
• Nominal Operating Pressure A - B (Working Ports): 300 bar.
• Nominal Operating Pressure T (Tank): 50 bar.
• Internal Leakage: approx. 15 cm³ /min at 120 bar.
• Oil Temperature: -15° C to +80°C.
• Contamination Level: 10 according to NAS1638.

Technical and Structural Data

• Part Number: 87001340.
• Orig. Ref.: 01Z50 D1-GKZ1.
• Lever: 1.
• Version: cast iron monoblock valve.
• Connection P (Inlet, BSP): G 1/2".
• Connection T (Tank, BSP): G 1/2".
• Connection N (Inlet, BSP): 1/2" BSP.
• Connection A-B (Working Ports, BSP): G 3/8".

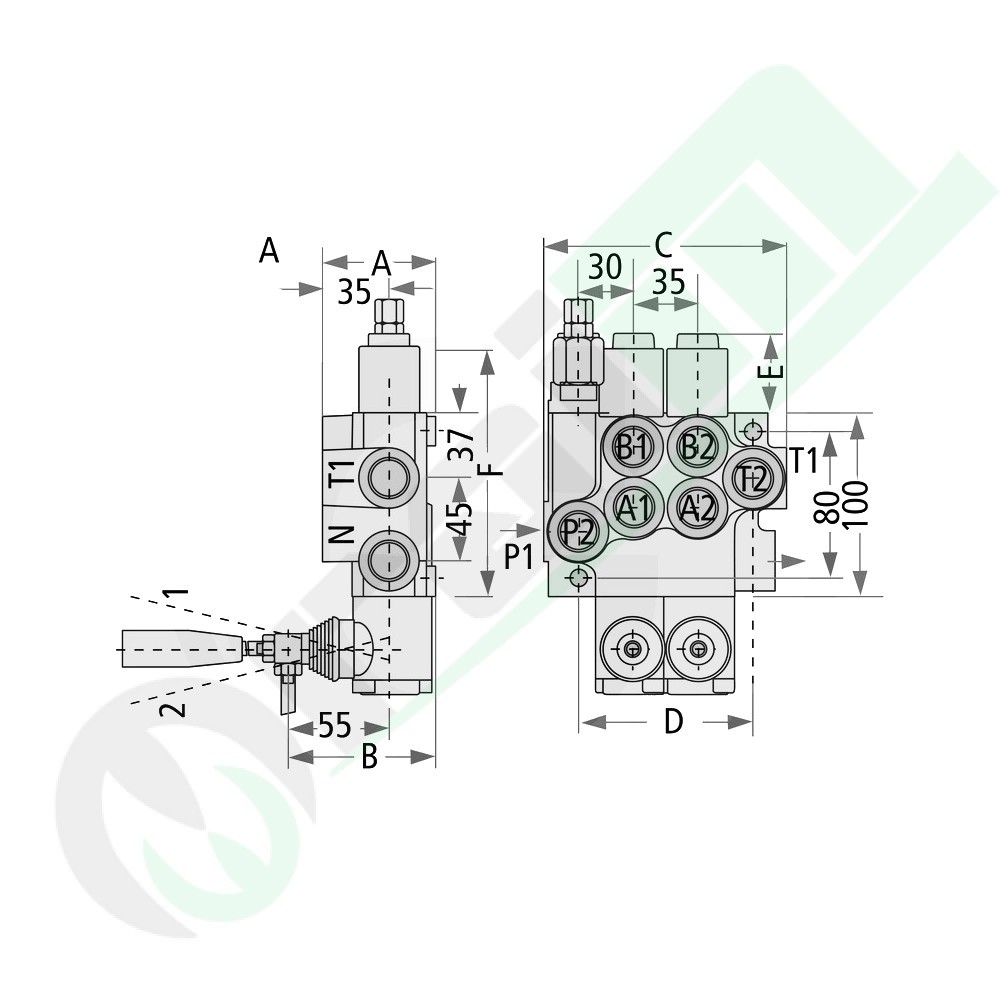

Dimensions (mm)

Dimensional data for installation:

• A: 60 mm.
• B: 80 mm.
• C: 85 mm.
• D: 60 mm.
