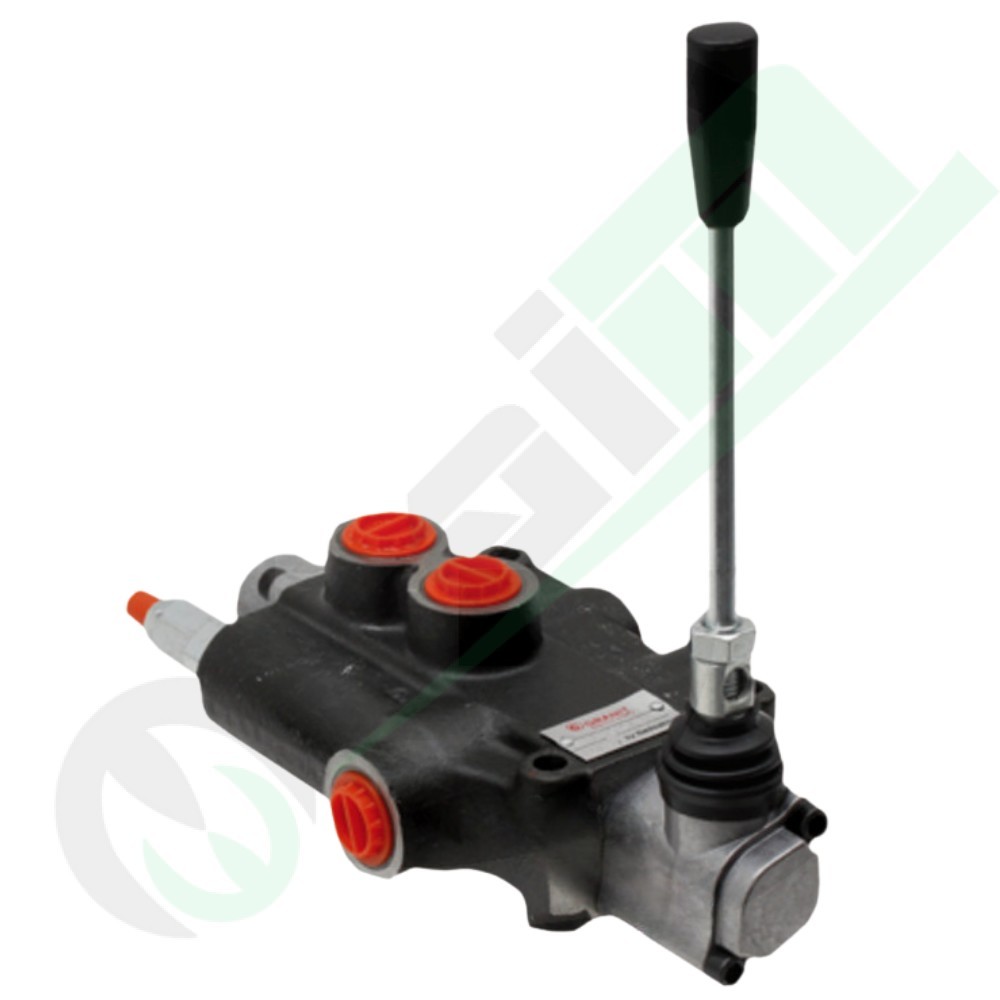

GRANIT Z80 Monoblock Hydraulic Distributor | 1x Double Acting (A-B-T Connected) | 80 l/min

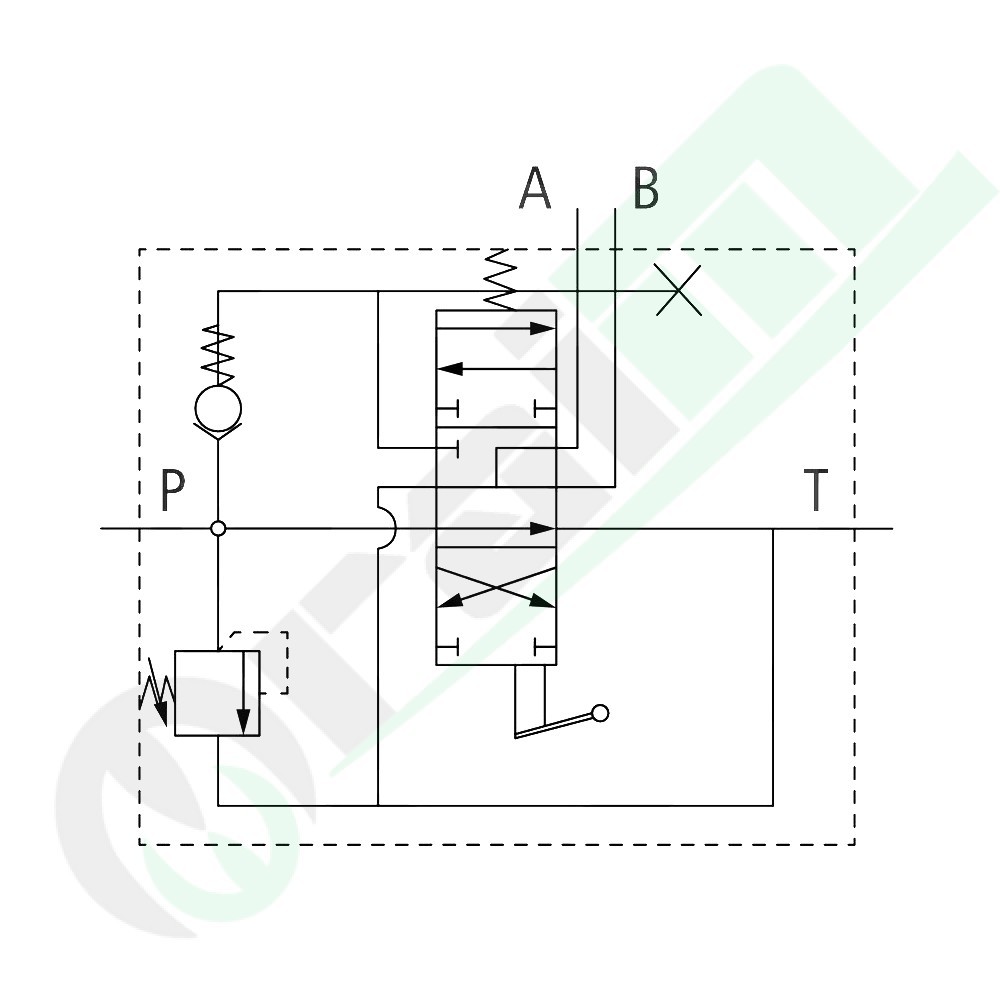

The GRANIT 87001348 hydraulic distributor from the Z80 series is a 4/3 way monoblock directional valve, suitable for controlling a double-acting cylinder. The center function is A-B-T connected (open center) with spring return. This means that in the neutral position (center), the pump flow (P) is directed directly to the tank (T), allowing free outflow and reducing thermal load on the system. It is ideal for open-center hydraulic circuits with a flow rate of 80 l/min and a nominal pressure of 250 bar.

Functional and Hydraulic Specifications

• Version: 4/3 way, 1 x double acting (A-B-T connected / spring return). This is the open center configuration.
• Lever Function: 1 x double acting.
• Flow Rate (l/min): 80.
• PN (Nominal Pressure): 250 bar.
• Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
• Nominal Operating Pressure A - B (Working Ports): 300 bar.
• Nominal Flow Rate T (Tank): 50 bar.
• Internal Leakage: approx. 18 cm³/min at 120 bar.
• Oil Temperature: -15° C to +80°C.
• Contamination Level: 10 according to NAS1638.

Technical and Structural Data

• Part Number: 87001348.
• Orig. Ref.: 01Z80 D1-GKZ1.
• Leva: 1.
• Versione: cast iron monoblock valve.
• Connection P (Inlet, BSP): G 1/2".
• Connection T (Tank, BSP): G 3/4".
• Connection N (Inlet/Outlet, BSP): 3/4" BSP (from product description).
• Connection A-B (Working Ports, BSP): G 1/2".

Dimensions (mm)

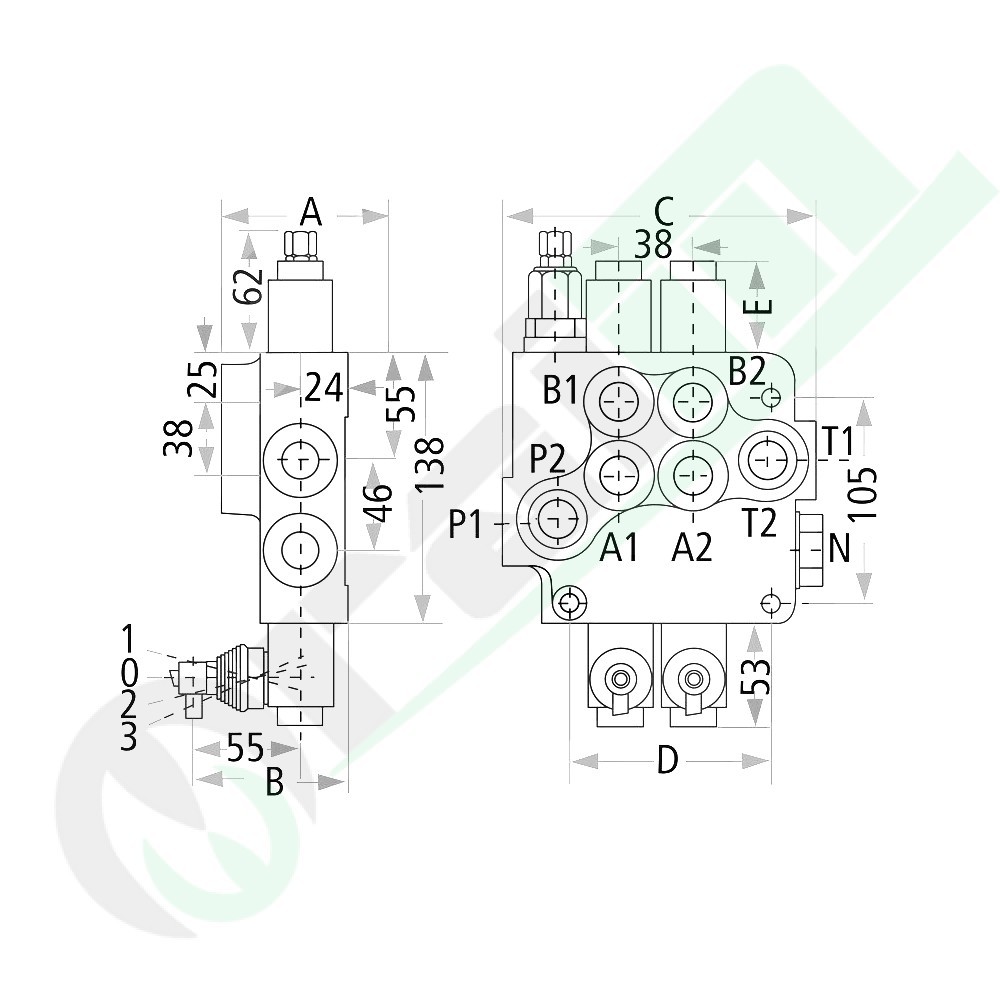

Dimensional data for installation:

• A: 65 mm.
• B: 80 mm.
• C: 107 mm.
• D: 65 mm.
