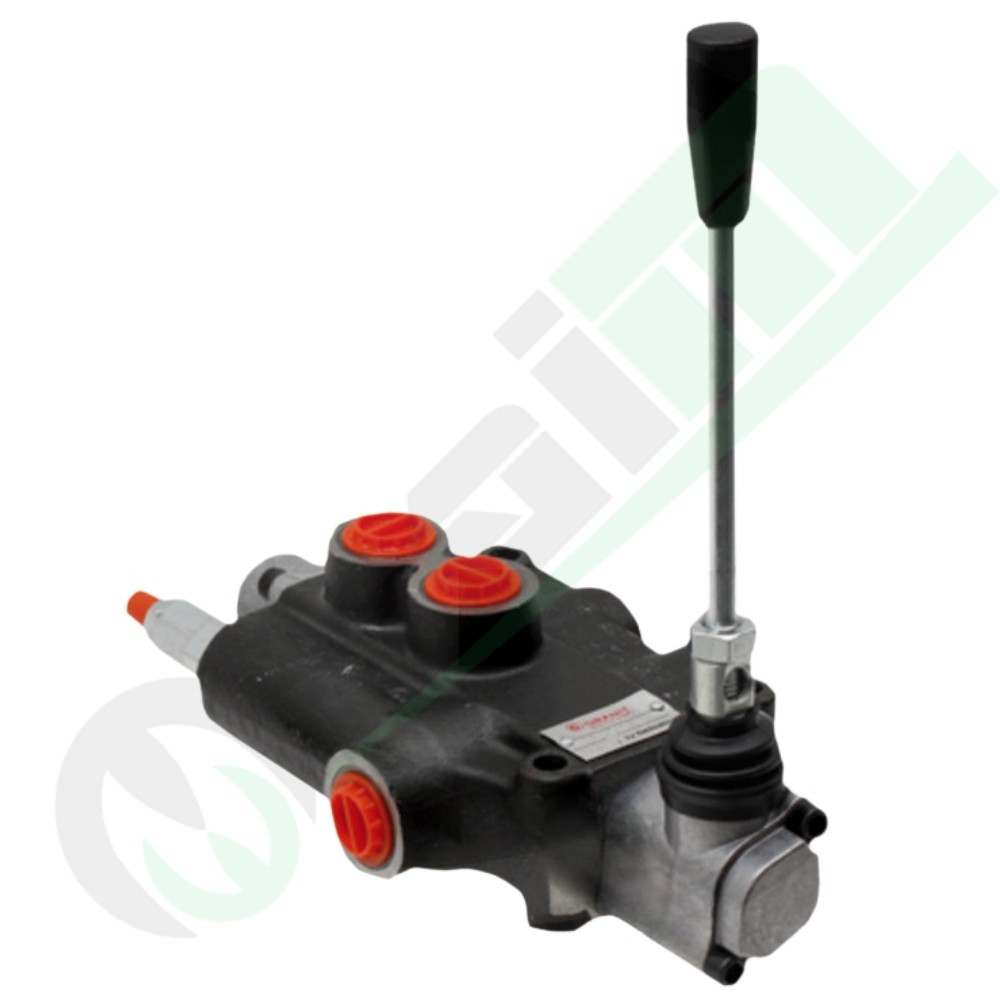

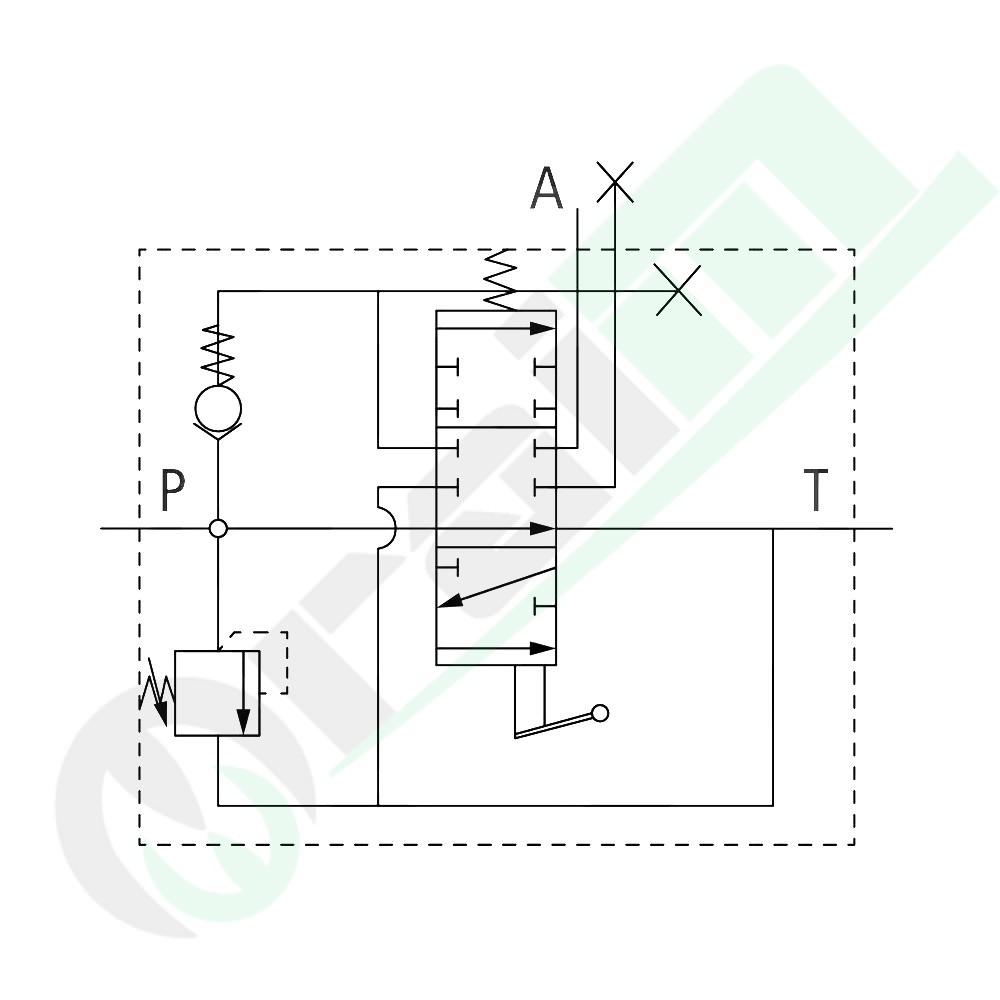

GRANIT Z80 Monoblock Hydraulic Distributor | 1x Single Acting (EW) | 80 l/min | 250 bar

The GRANIT 87001347 hydraulic distributor from the Z80 series is a 4/3 way monoblock directional valve, suitable for controlling a single-acting cylinder (EW). In the neutral position (center), port A is closed (A closed) and the lever spring-returns. Since this is a single-acting application, port B is not used. The valve has a closed center, blocking the main flow P in the neutral position, and is made of cast iron. It is suitable for a nominal pressure of 250 bar and a maximum flow rate of 80 l/min.

Functional and Hydraulic Specifications

• Version: 4/3 way, 1 x single acting (A closed / spring return).
• Lever Function: 1 x single acting.
• Flow Rate (l/min): 80.
• PN (Nominal Pressure): 250 bar.
• Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
• Nominal Operating Pressure A - B (Working Ports): 300 bar.
• Nominal Flow Rate T (Tank): 50 bar.
• Internal Leakage: approx. 18 cm³/min at 120 bar.
• Oil Temperature: -15° C to +80°C.
• Contamination Level: 10 according to NAS1638.

Technical and Structural Data

• Part Number: 87001347.
• Orig. Ref.: 01Z80 C1 GKZ1.
• Lever: 1.
• Version: cast iron monoblock valve.
• Connection P (Inlet, BSP): G 1/2".
• Connection T (Tank, BSP): G 3/4".
• Connection N (Inlet/Outlet, BSP): 3/4" BSP (from product description).
• Connection A-B (Working Ports, BSP): G 1/2". (Port B is not used for single acting).

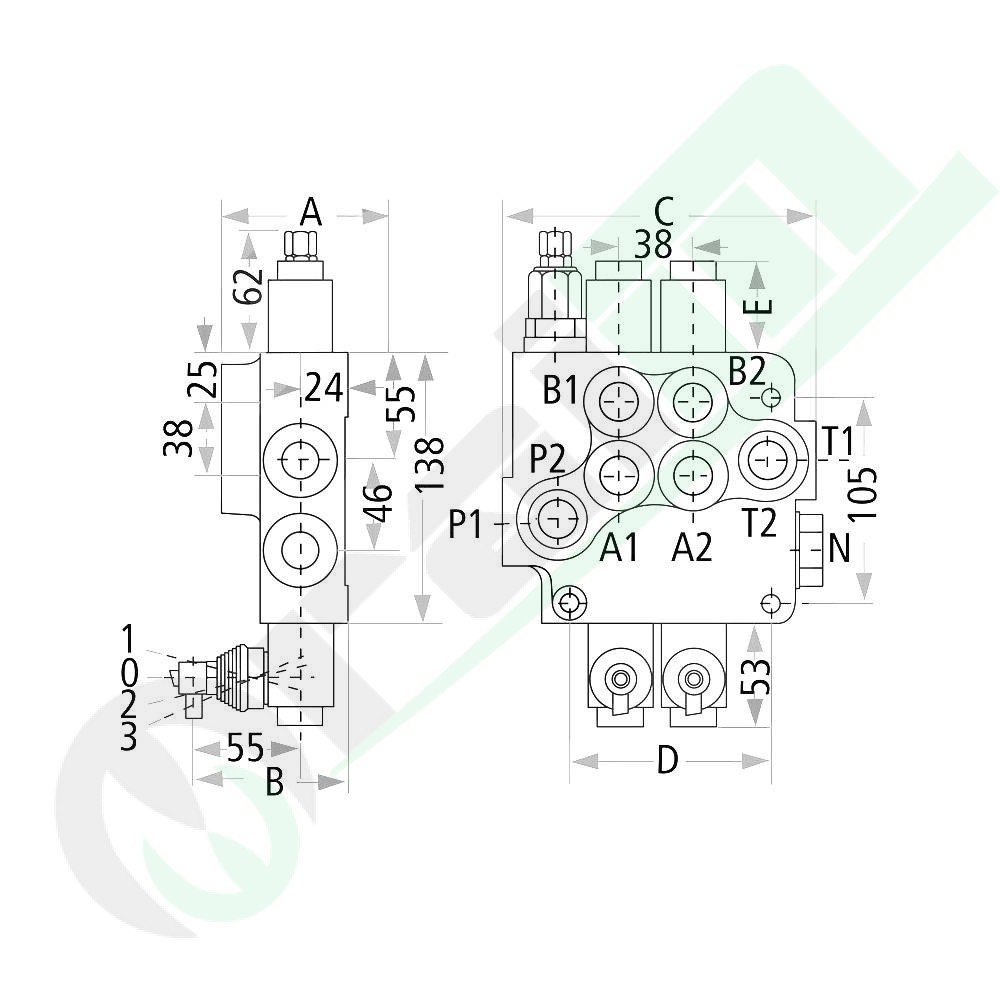

Dimensions (mm)

Dimensional data for installation:

• A: 65 mm.
• B: 80 mm.
• C: 107 mm.
• D: 65 mm.
