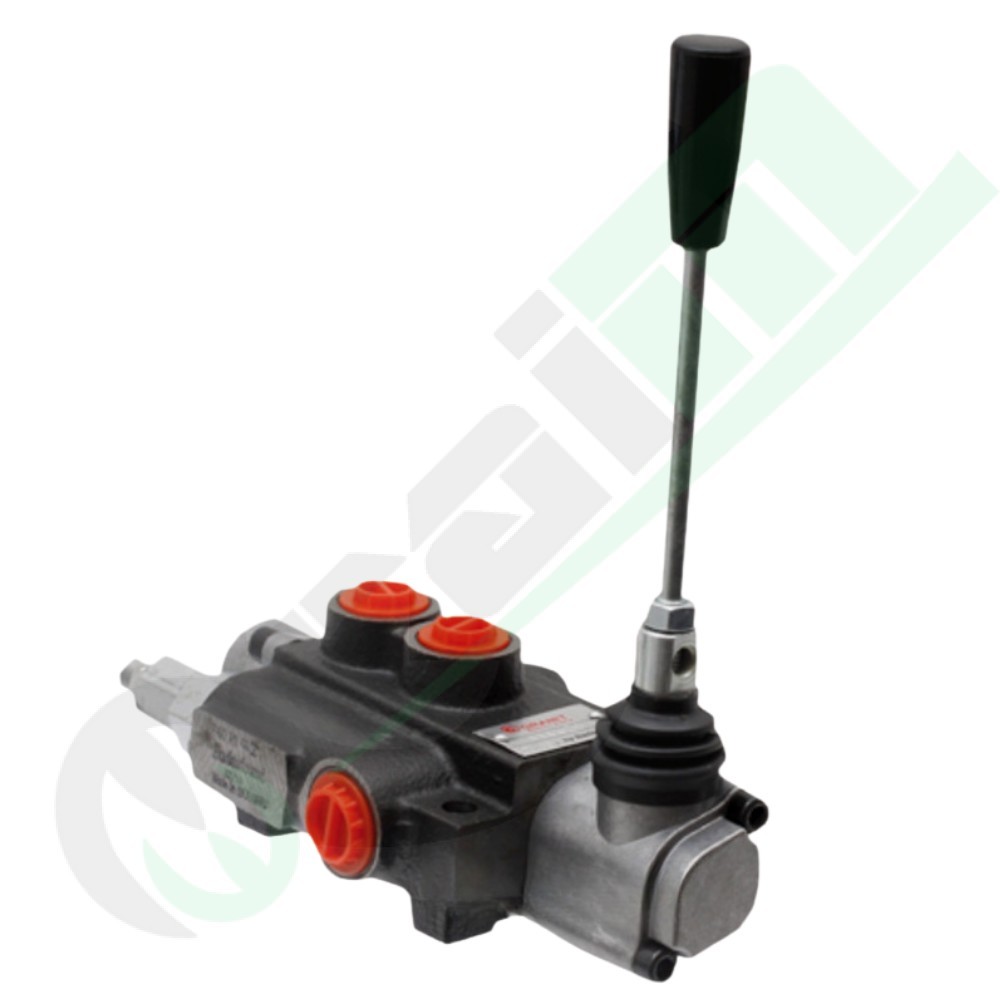

GRANIT Z50 Monoblock Hydraulic Distributor | 1x Single Acting (EW) | 40 l/min | 250 bar

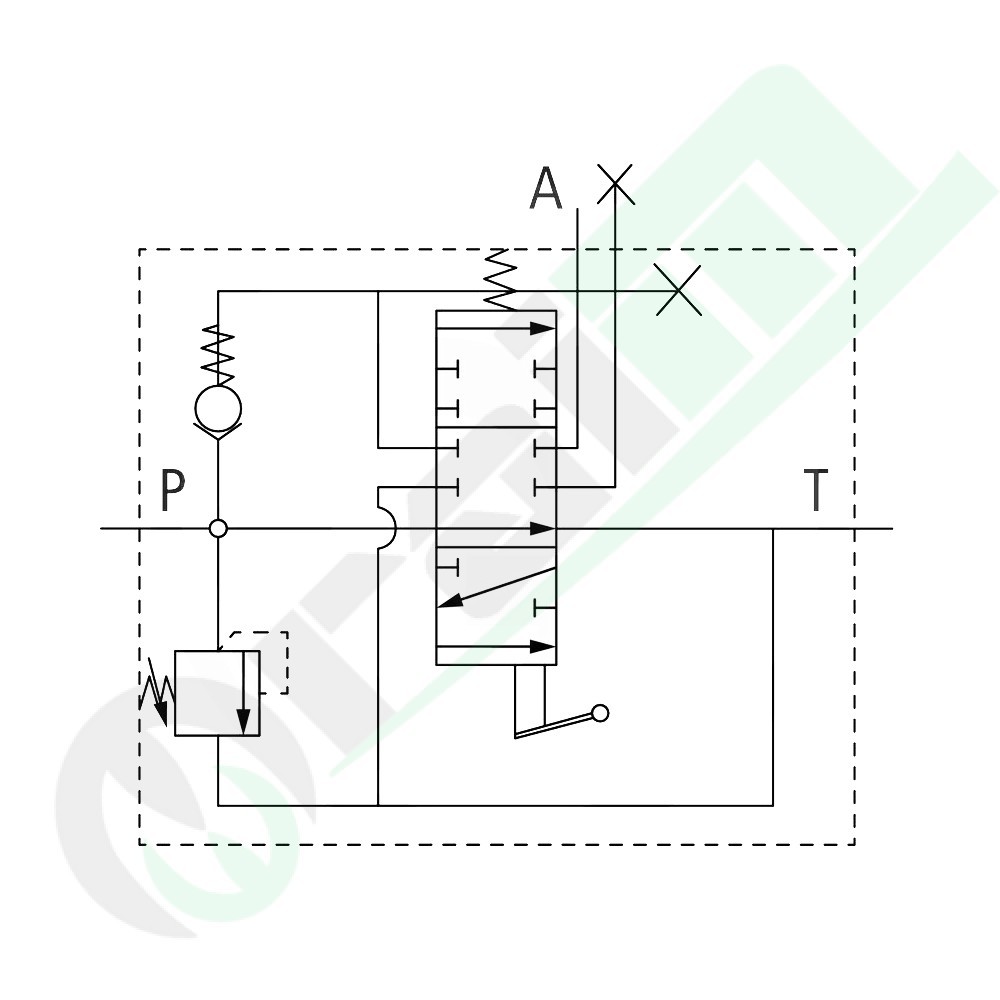

The GRANIT 87001342 hydraulic distributor is a 4/3 way monoblock directional valve, suitable for controlling a single-acting cylinder. The version indicates that, in the neutral position (center), port A is closed (A closed / spring return). Since this is a single-acting cylinder distributor, port B is not used. The valve has a closed center, stopping the main flow P in the neutral position. The lever spring-returns to the neutral position. Made of cast iron, it is suitable for a nominal pressure of 250 bar and a maximum flow rate of 40 l/min.

Functional and Hydraulic Specifications

• Version: 4/3 way, 1 x single acting (A closed / spring return).
• Lever Function: 1 x single acting.
• Flow Rate (l/min): 40.
• PN (Nominal Pressure): 250 bar.
• Adjustment Range (Maximum Pressure): 120-250 bar.
• Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
• Nominal Operating Pressure A - B (Working Ports): 300 bar.
• Nominal Operating Pressure T (Tank): 50 bar.
• Internal Leakage: approx. 15 cm³ /min at 120 bar.
• Oil Temperature: -15° C to +80°C.
• Contamination Level: 10 according to NAS1638.

Technical and Structural Data

• Part Number: 87001342.
• Orig. Ref.: 01Z50 C1-GKZ1.
• Lever: 1.
• Version: cast iron monoblock valve.
• Connection P (Inlet, BSP): G 1/2".
• Connection T (Tank, BSP): G 1/2".
• Connection N (Inlet, BSP): 1/2" BSP.
• Connection A-B (Working Ports, BSP): G 3/8". (Port B is not used for single acting).

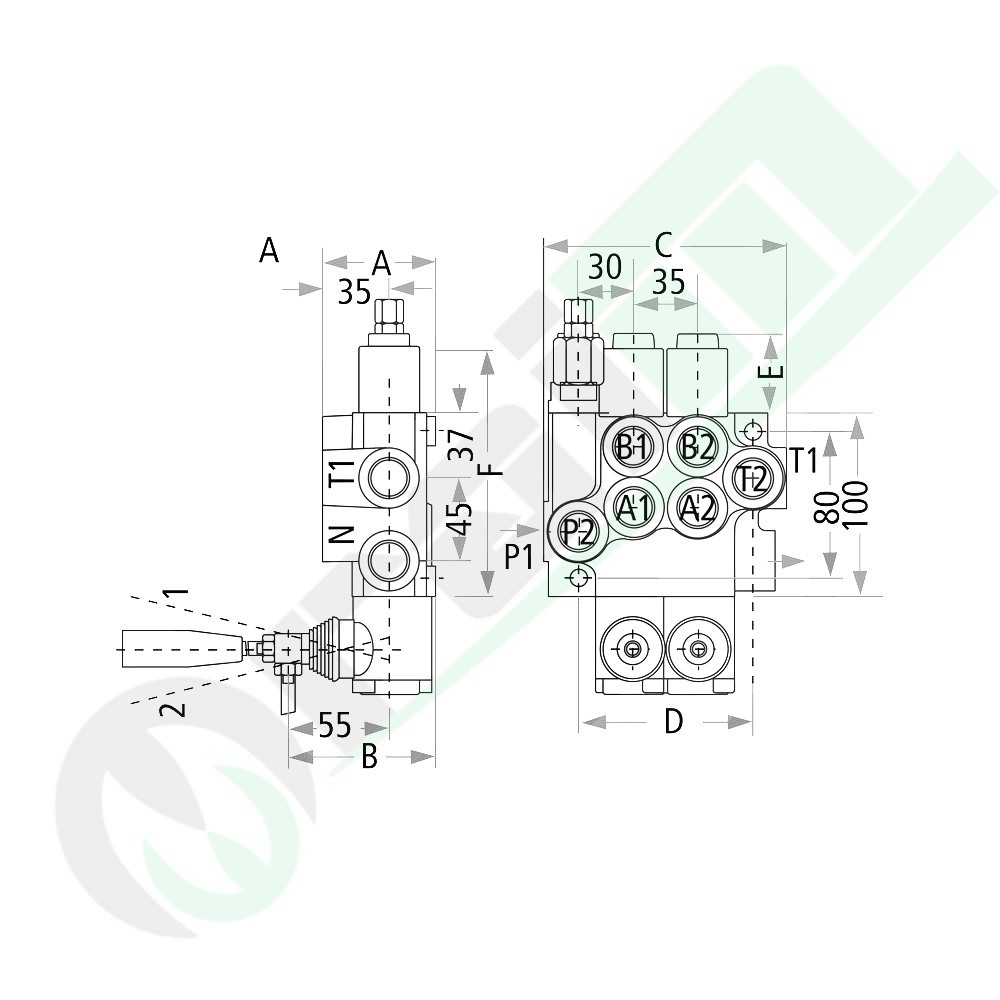

Dimensions (mm)

Dimensional data for installation:

• A: 60 mm.
• B: 80 mm.
• C: 85 mm.
• D: 60 mm.
