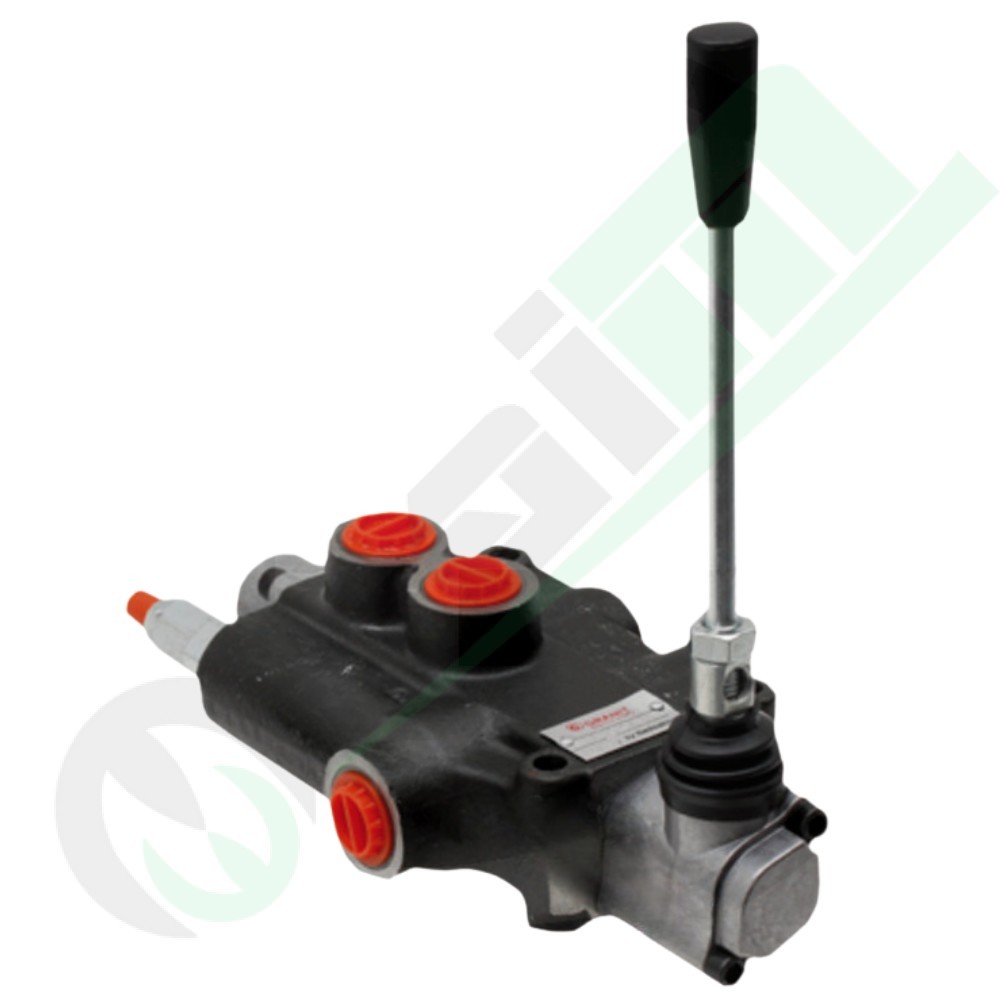

GRANIT Z80 Monoblock Hydraulic Distributor | 1x Double Acting | 80 l/min | In-Line Pressure

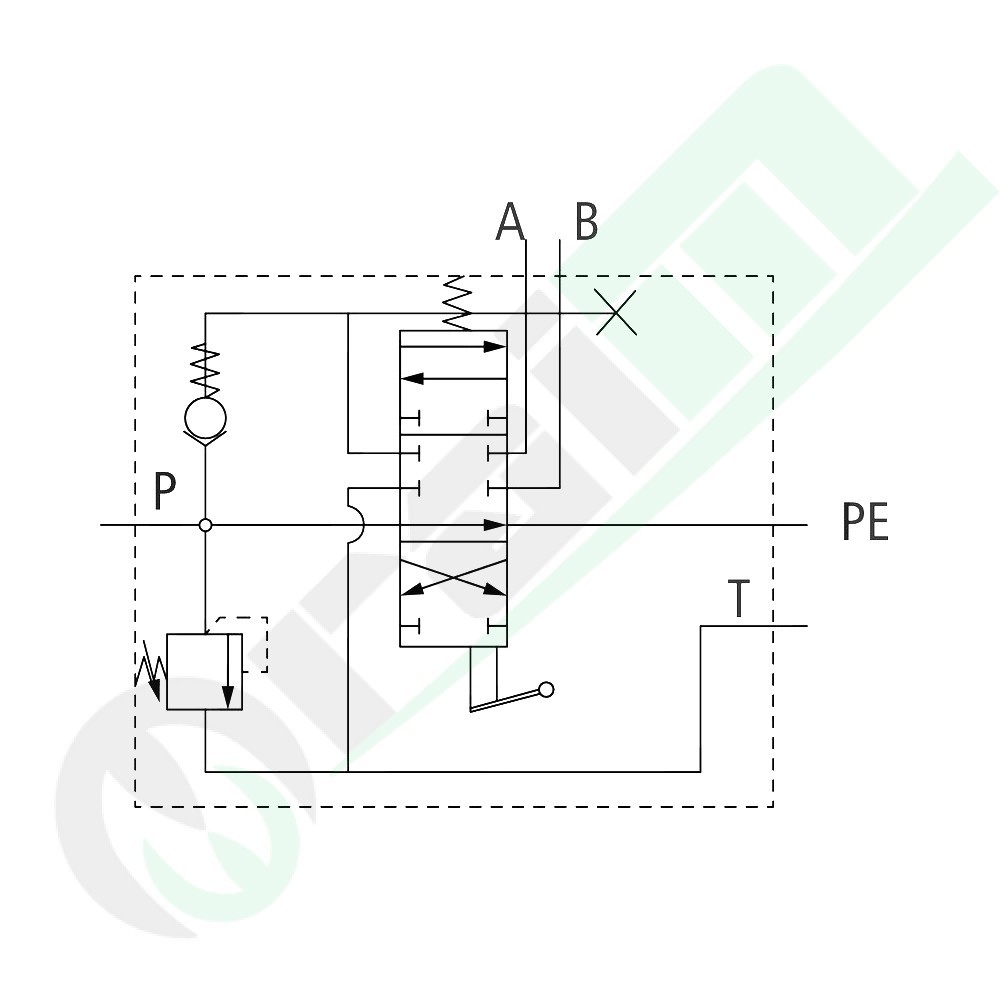

The GRANIT 87001373 hydraulic distributor from the Z80 series is a 4/3 way monoblock directional valve, suitable for controlling a double-acting cylinder. The center function is A-B closed with spring return, which implies a closed center system. This valve is prepared for series pressure continuation, a function that allows other distributors to be connected in series in the hydraulic circuit. It is important to note that, despite being foreseen, the series pressure continuation is not installed as standard and must be fitted separately. The valve is made of cast iron and is suitable for a nominal pressure of 250 bar and a maximum flow rate of 80 l/min.

Functional and Hydraulic Specifications

• Version: 4/3 way, 1 x double acting (A-B closed / spring return / series pressure continuation).
• Lever Function: 1 x double acting.
• Flow Rate (l/min): 80.
• PN (Nominal Pressure): 250 bar.
• Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
• Nominal Operating Pressure A - B (Working Ports): 300 bar.
• Nominal Flow Rate T (Tank): 50 bar.
• Internal Leakage: approx. 18 cm³/min at 120 bar.
• Oil Temperature: -15° C to +80°C.
• Contamination Level: 10 according to NAS1638.

Technical and Structural Data

• Part Number: 87001373.
• Orig. Ref.: 01Z80 A1 GKZ1 C2.
• Lever: 1.
• Version: cast iron monoblock valve.
• Connection P (Inlet, BSP): G 1/2".
• Connection T (Tank, BSP): G 3/4".
• Connection N (Inlet/Outlet, BSP): 3/4" BSP (from product description).
• Connection A-B (Working Ports, BSP): G 1/2".
• Additional Information: The series pressure continuation is not installed.

Dimensions (mm)

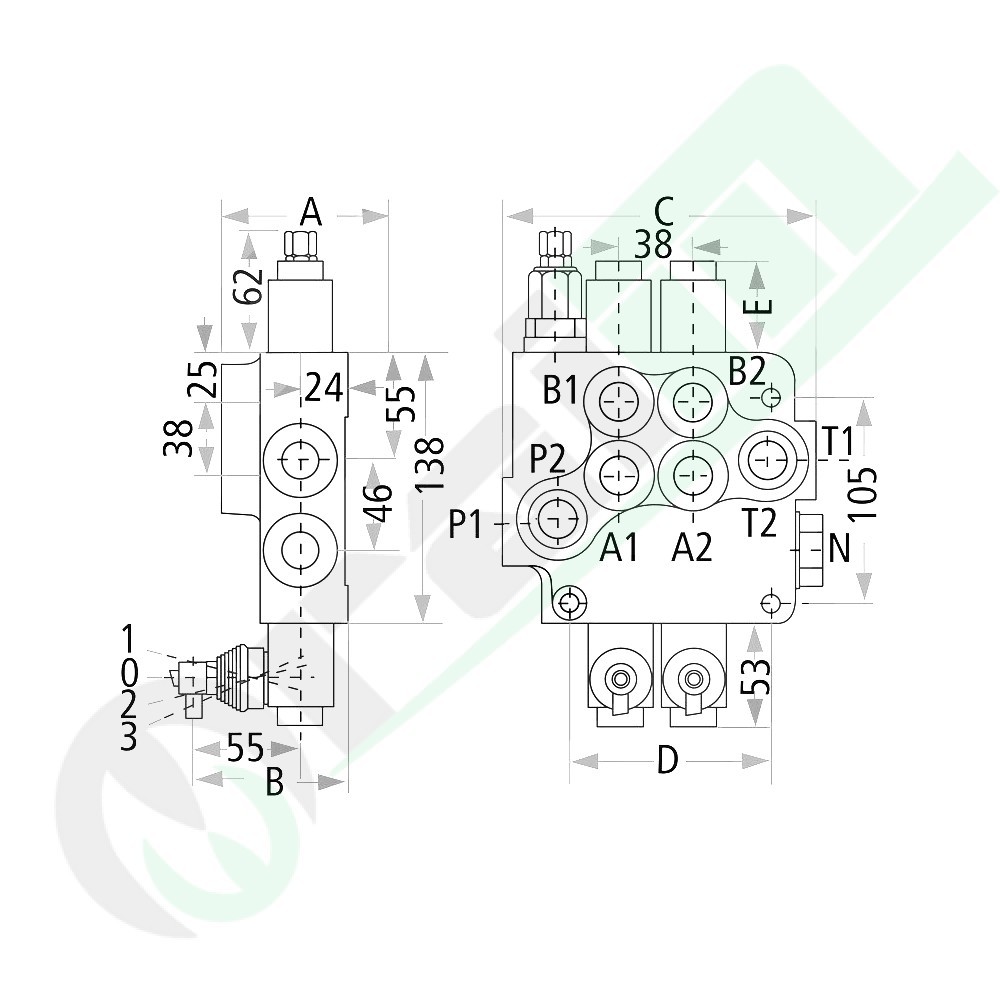

Dimensional data for installation:

• A: 65 mm.
• B: 80 mm.
• C: 107 mm.
• D: 65 mm.
