GRANIT Z50 Monoblock Hydraulic Distributor | 1x Double Acting | Float Position

The GRANIT 87001341 hydraulic distributor is a 4/3 way monoblock directional valve, ideal for controlling a double-acting cylinder, with the additional function of a position flottante with detent in position 3. In the float position, both A and B ports are connected to the tank (T), allowing the cylinder to move freely under an external force, an essential feature for applications like snowplows or agricultural attachments. The center is A-B closed and the lever spring returns to the neutral (center) position from positions 1 and 2. Made of cast iron, it withstands a nominal pressure of 250 bar and a maximum flow rate of 40 l/min.

Functional and Hydraulic Specifications

• Version: 4/3 way, 1 x double acting (A-B closed / float position with detent in pos. 3).
• Lever Function: 1 x double acting.
• Flow Rate (l/min): 40.
• PN (Nominal Pressure): 250 bar.
• Adjustment Range (Maximum Pressure): 120-250 bar.
• Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
• Nominal Operating Pressure A - B (Working Ports): 300 bar.
• Nominal Operating Pressure T (Tank): 50 bar.
• Internal Leakage: approx. 15 cm³ /min at 120 bar.
• Oil Temperature: -15° C to +80°C.
• Contamination Level: 10 according to NAS1638.

Technical and Structural Data

• Part Number: 87001341.
• Orig. Ref.: 01Z50 K16-GKZ1.
• Leva: 1.
• Version: cast iron monoblock valve.
• Connection P (Inlet, BSP): G 1/2".
• Connection T (Tank, BSP): G 1/2".
• Connection N (Inlet, BSP): 1/2" BSP.
• Connection A-B (Working Ports, BSP): G 3/8".

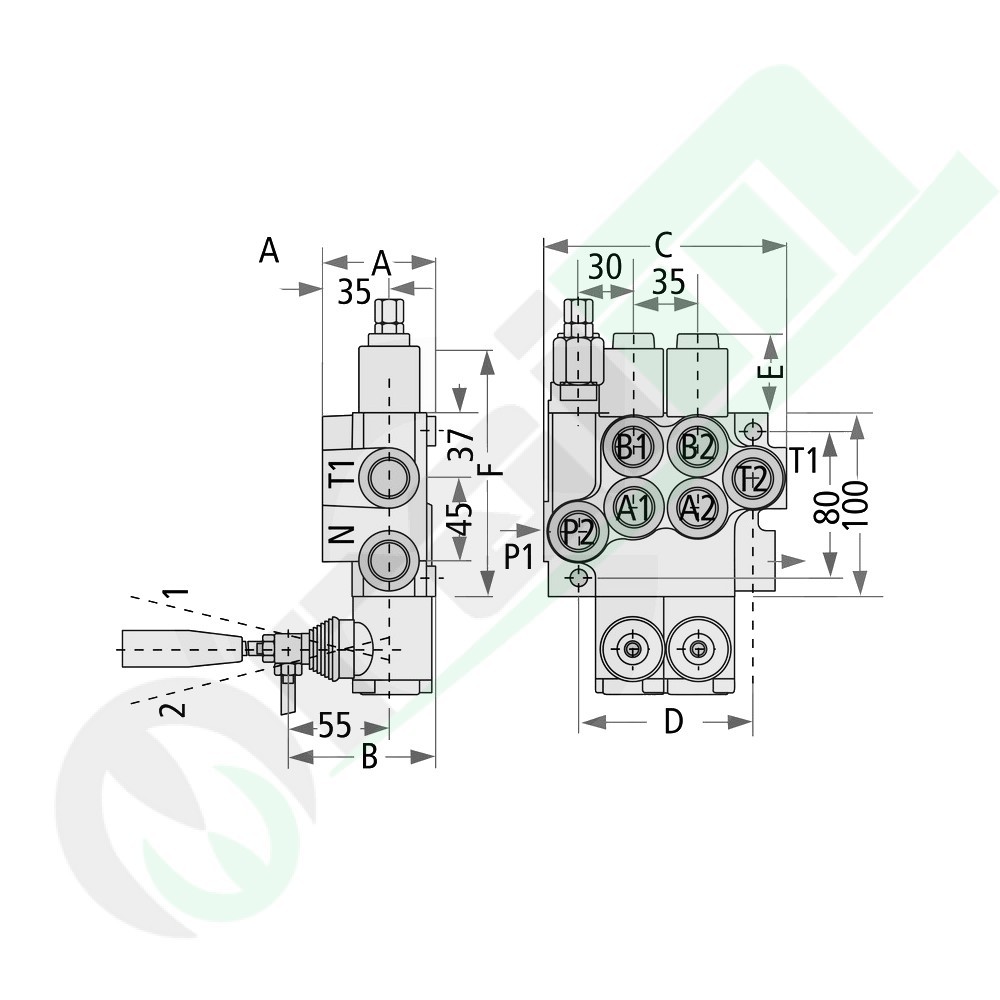

Dimensions (mm)

Dimensional data for installation:

• A: 60 mm.
• B: 80 mm.
• C: 85 mm.
• D: 60 mm.
