Cylindrical M6 Male/Male Anti-Vibration Mount

Product Description

A cylindrical anti-vibration mount with male threads on both ends, designed for effective isolation from vibrations and shocks. With a maximum compression load of 60 kg and a shear load of 8 kg, it's the ideal solution for machinery and equipment operating under higher stress conditions. Its robust design and standard threading make it a versatile and reliable component.

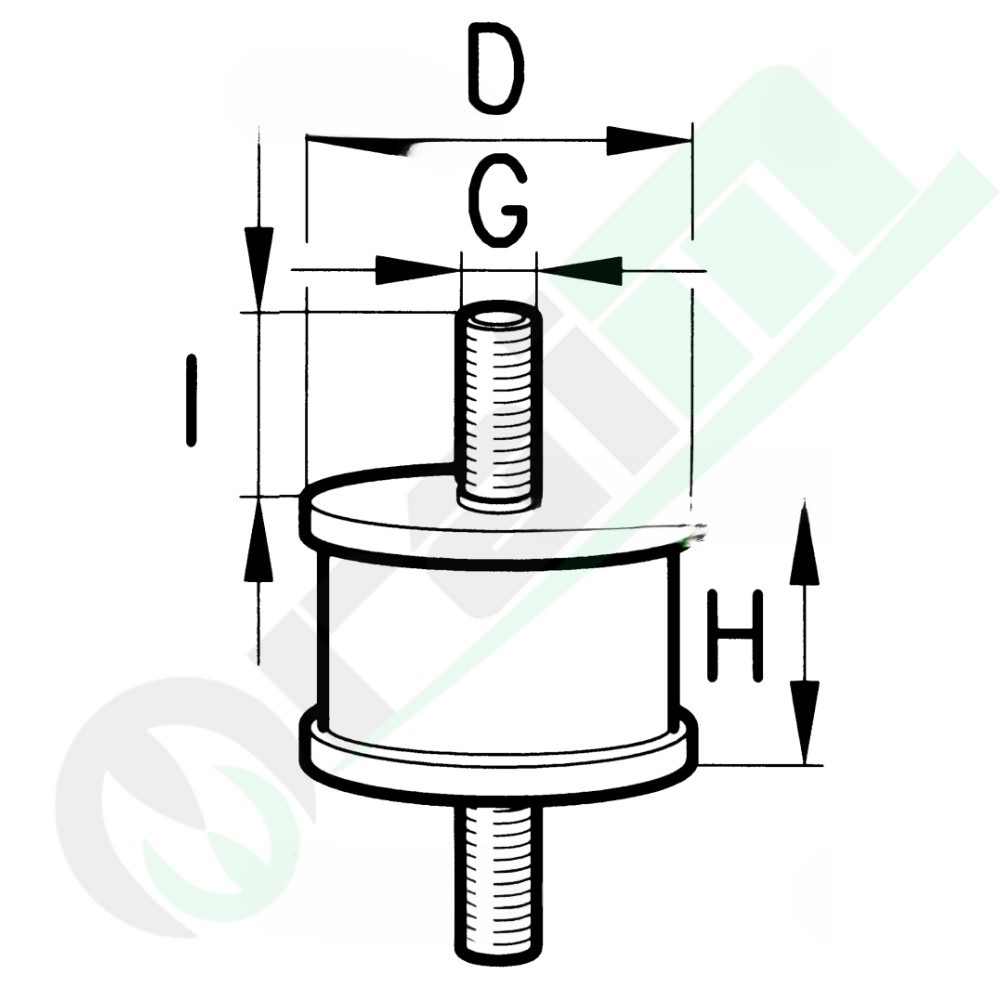

Technical Details

• Type: Cylindrical, Male/Male
• Maximum Compression Load: 60 kg
• Maximum Shear Load: 8 kg
• Diameter (D): 25 mm
• Height (H): 20 mm
• Thread Length (I): 18 mm
• Thread (G): M6
