Cylindrical M10 (Ø 40 mm) Male/Male Anti-Vibration Mount

Product Description

A cylindrical anti-vibration mount with male threads on both ends, designed for exceptional isolation from vibrations and shocks in high-power machinery. With a diameter of 40 mm and a remarkable maximum compression load of 120 kg, this component is ideal for the heaviest applications. It provides superior protection for sensitive components, ensuring stability and reliability even under extreme conditions.

Technical Details

• Type: Cylindrical, Male/Male
• Maximum Compression Load: 120 kg
• Maximum Shear Load: 16 kg

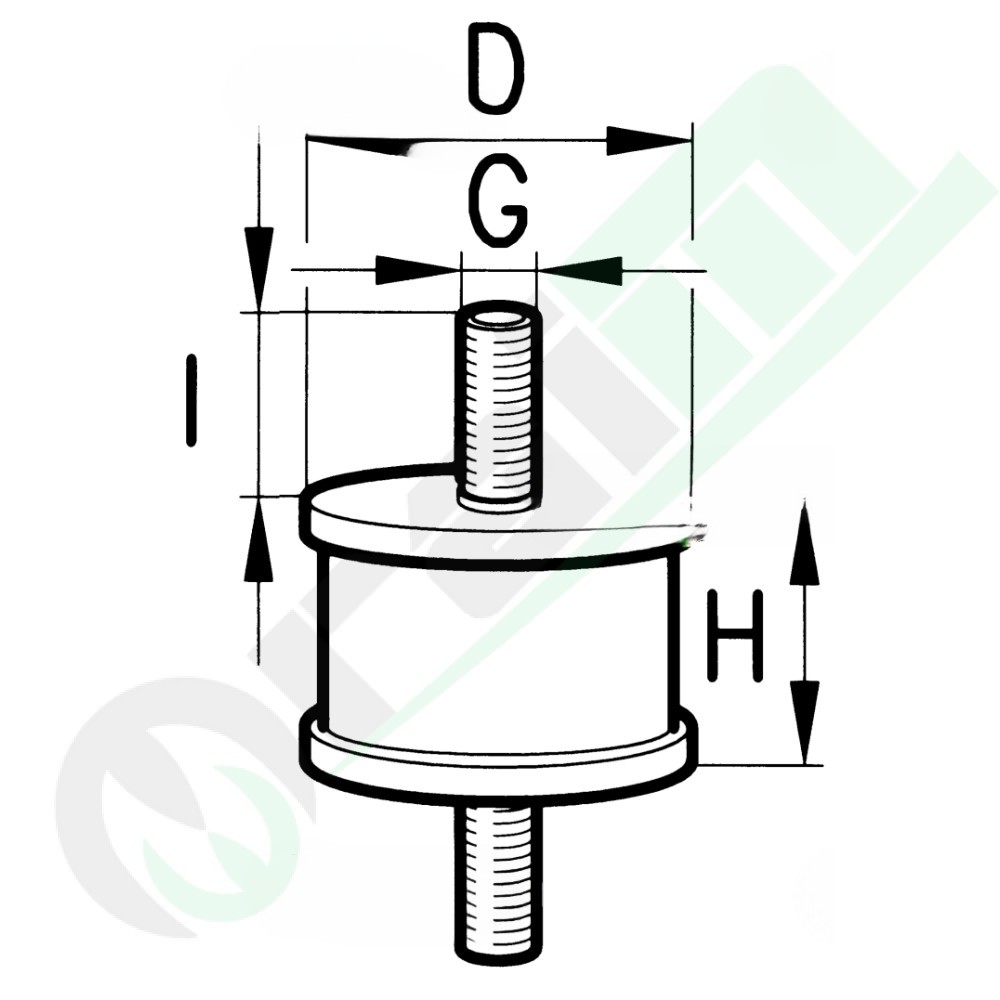

• Diameter (D): 40 mm
• Height (H): 30 mm
• Thread Length (I): 23 mm
• Thread (G): M10
