Cylindrical M8 Male/Male Anti-Vibration Mount

Product Description

A cylindrical anti-vibration mount with male threads on both ends, designed for isolating vibrations and shocks in heavy-duty applications. With a remarkable maximum compression load of 80 kg, this component is ideal for protecting heavy machinery and equipment that require maximum stability. Its robust design and standard threading make it a reliable solution for the most demanding conditions.

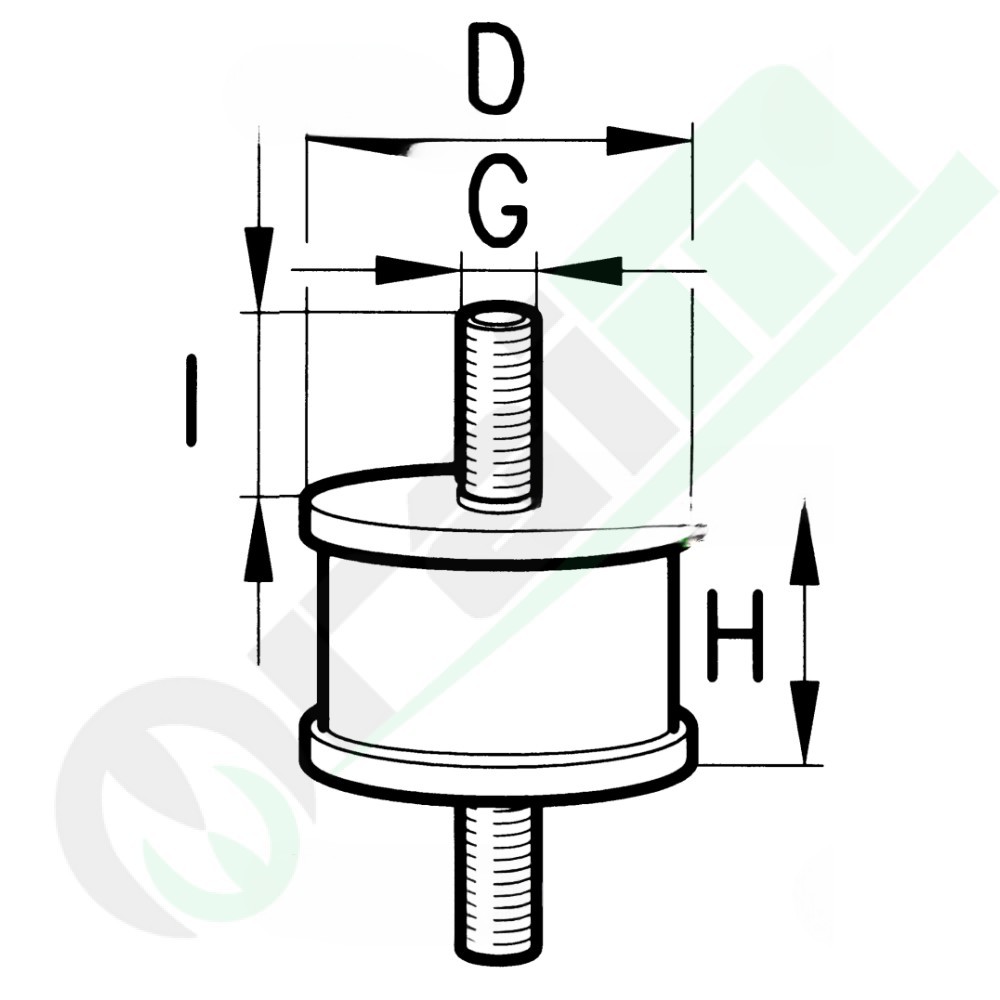

Technical Details

• Type: Cylindrical, Male/Male
• Maximum Compression Load: 80 kg
• Maximum Shear Load: 8 kg
• Diameter (D): 30 mm
• Height (H): 30 mm
• Thread Length (I): 23 mm
• Thread (G): M8
