Cylindrical M8 Male/Male Anti-Vibration Mount

Product Description

A cylindrical anti-vibration mount with male threads on both ends, designed for effective isolation from vibrations and shocks. With a diameter of 30 mm and a maximum compression load of 60 kg, this component is ideal for machinery and equipment that require a wider mounting base and greater stability. The extended threads ensure a solid and secure attachment.

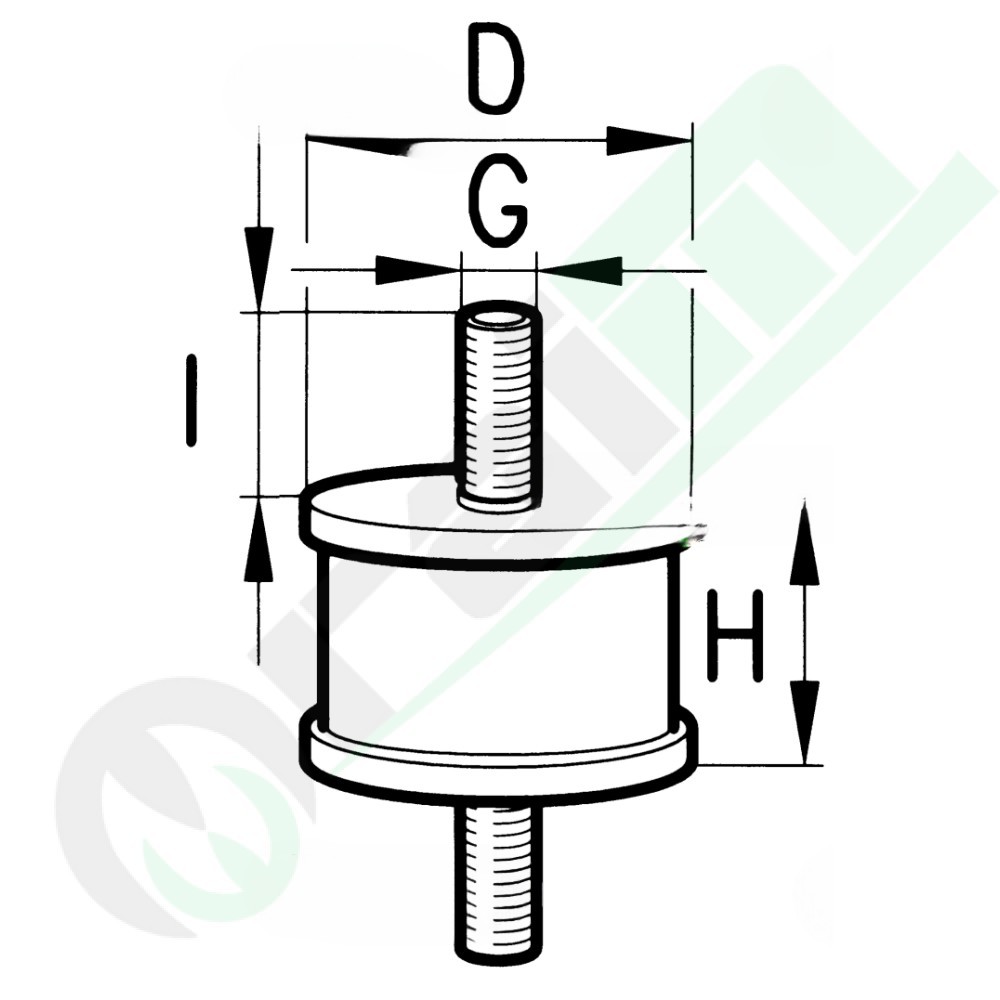

Technical Details

• Type: Cylindrical, Male/Male
• Maximum Compression Load: 60 kg
• Maximum Shear Load: 6 kg
• Diameter (D): 30 mm
• Height (H): 20 mm
• Thread Length (I): 23 mm
• Thread (G): M8
