Cylindrical M10 Male/Male Anti-Vibration Mount

Product Description

A cylindrical anti-vibration mount with male threads on both ends, designed for effective isolation from vibrations and shocks in heavy industrial applications. With a robust M10 thread and a remarkable maximum compression load of 80 kg, this component is ideal for protecting machinery and equipment that require an extremely solid connection and maximum stability. Its design ensures reliability and high performance even under the most demanding conditions.

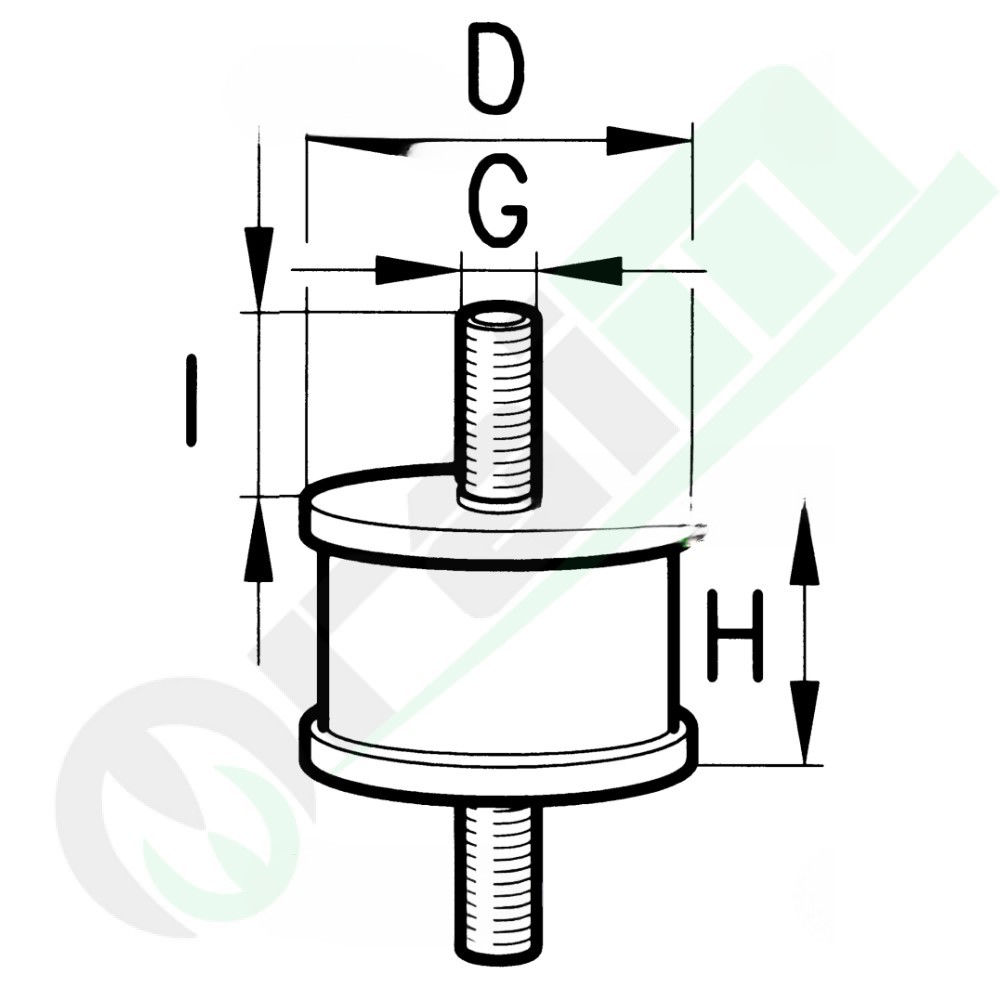

Technical Details

• Type: Cylindrical, Male/Male
• Maximum Compression Load: 80 kg
• Maximum Shear Load: 8 kg
• Diameter (D): 30 mm
• Height (H): 30 mm
• Thread Length (I): 23 mm
• Thread (G): M10
