Cylindrical M10 (Ø 50 mm) Male/Male Anti-Vibration Mount

Product Description

A cylindrical anti-vibration mount with male threads on both ends, designed for excellent isolation from vibrations and shocks in heavy machinery. With a diameter of 50 mm and a significant maximum compression load of 160 kg, this component is ideal for the most demanding industrial applications. Its robustness and dimensions make it perfect for ensuring stability and reliability under any working condition.

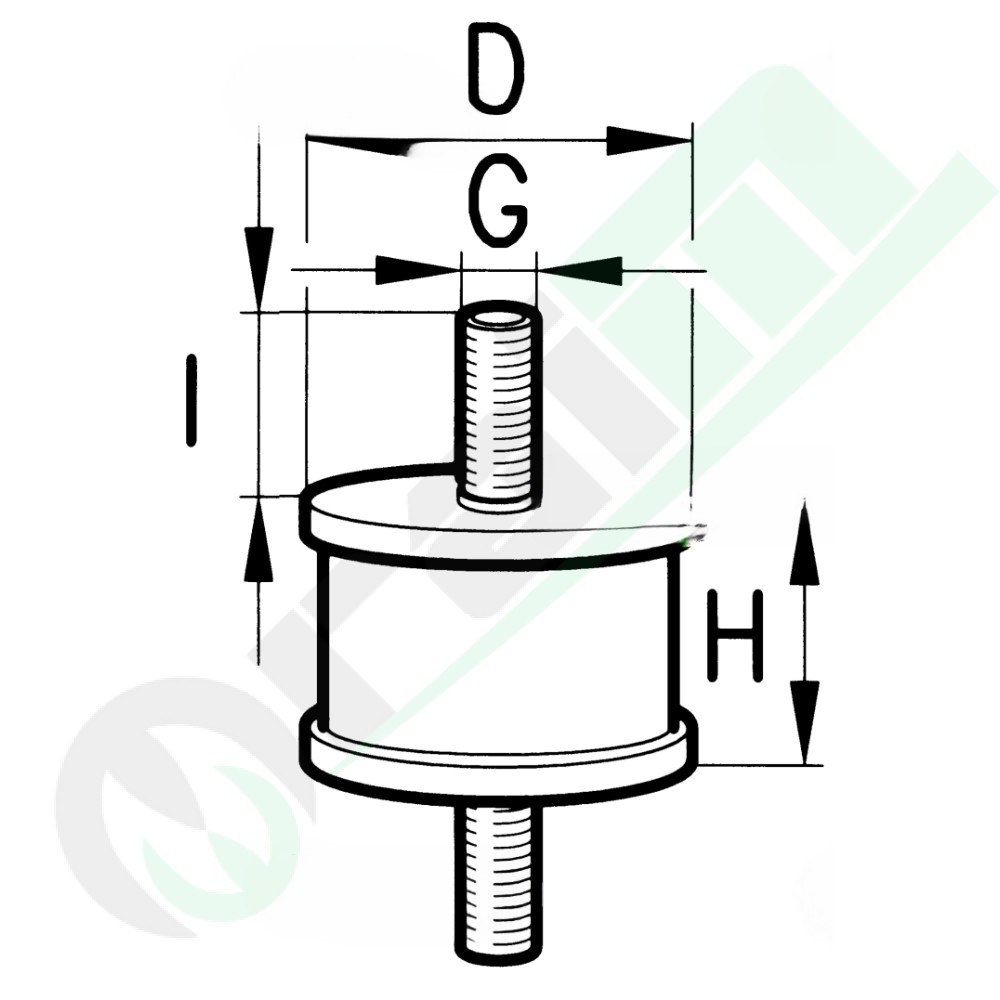

Technical Details

• Type: Cylindrical, Male/Male
• Maximum Compression Load: 160 kg
• Maximum Shear Load: 17 kg
• Diameter (D): 50 mm
• Height (H): 45 mm
• Thread Length (I): 27 mm
• Thread (G): M10
