Cylindrical M10 (Ø 50 mm) Male/Male Anti-Vibration Mount

Product Description

A cylindrical anti-vibration mount with male threads on both ends, designed for isolating vibrations and shocks in heavy-duty applications. With a diameter of 50 mm and an exceptional maximum compression load of 200 kg, this component is ideal for protecting large-scale machinery, motors, and industrial equipment. Its robust design ensures stability and reliability even under the most extreme working conditions.

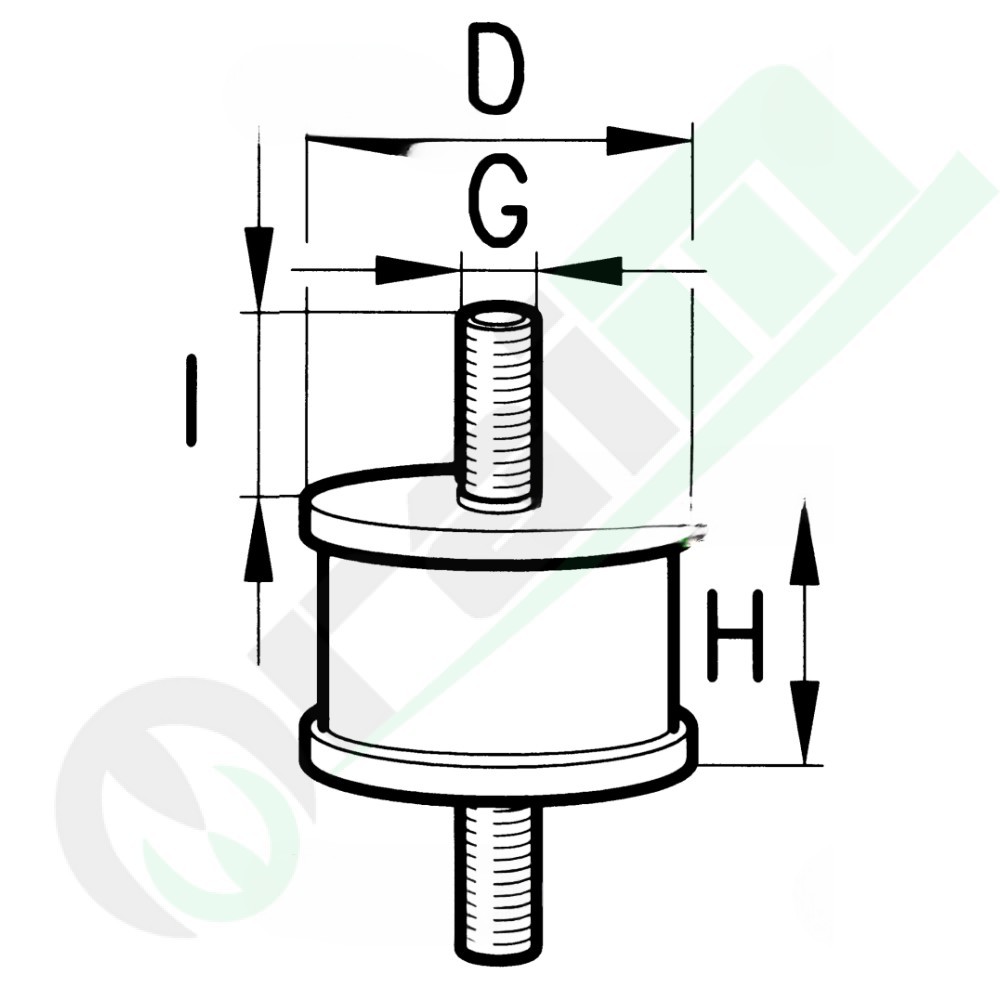

Technical Details

• Type: Cylindrical, Male/Male
• Maximum Compression Load: 200 kg
• Maximum Shear Load: 20 kg
• Diameter (D): 50 mm
• Height (H): 30 mm
• Thread Length (I): 27 mm
• Thread (G): M10
