Cylindrical M16 (Ø 100 mm) Male/Male Anti-Vibration Mount

Product Description

A cylindrical anti-vibration mount with male threads on both ends, designed for exceptional isolation from vibrations and shocks in very high-power machinery. With a diameter of 100 mm and a remarkable maximum compression load of 850 kg, this component is the ideal solution for protecting large industrial equipment operating under extreme conditions, ensuring stability and reliability in any circumstance.

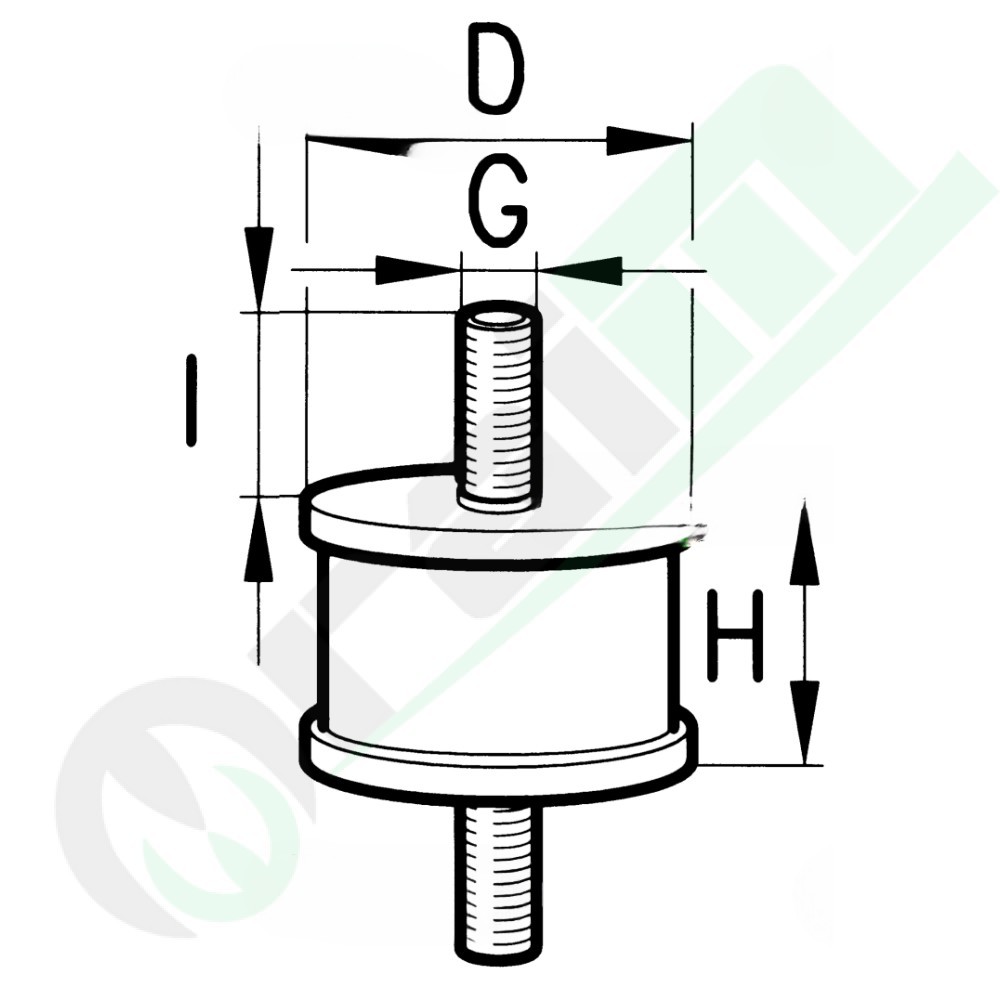

Technical Details

• Type: Cylindrical, Male/Male
• Maximum Compression Load: 850 kg
• Maximum Shear Load: 100 kg
• Diameter (D): 100 mm
• Height (H): 50 mm
• Thread Length (I): 46 mm
• Thread (G): M16
