LED Work Light 12406674 | 60W | 6800 Lumen | 12/24V | with Switch | IP6K9K

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

GranitRef.

LED Work Light 12406674 | 60W | 6800 Lumen | 12/24V | with Switch | IP6K9K

ROUND LED WORK LIGHT 60W 6800LM with Integrated Switch Part No. 12406674

€64.90VAT incl.

Coupon -€1.30 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €63.60

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Powerful LED work light with extremely high light output, ideal for long-range illumination (Projector/Spot function). Designed to withstand the harshest working environments thanks to the **IP6K9K** protection rating and features a convenient **integrated switch** for immediate on/off control.

Technical Details and Performance

Part Number: 12406674

Light Function: Projector (Spot, Focused Beam)

Nominal Voltage (V): 12 / 24

Operating Voltage (V): 10 - 30

Power (Watt): 60

Current Draw (A): 5A@12V / 2.5A@24V

Effective Luminous Flux (lm): 6800

Theoretical Luminous Flux (lm): 10260

Light Color (K): 5000 - 6500 (Cool White)

Lamp Type: LED (Quantity: 6x OSRAM 1.5W)

Construction and Mounting

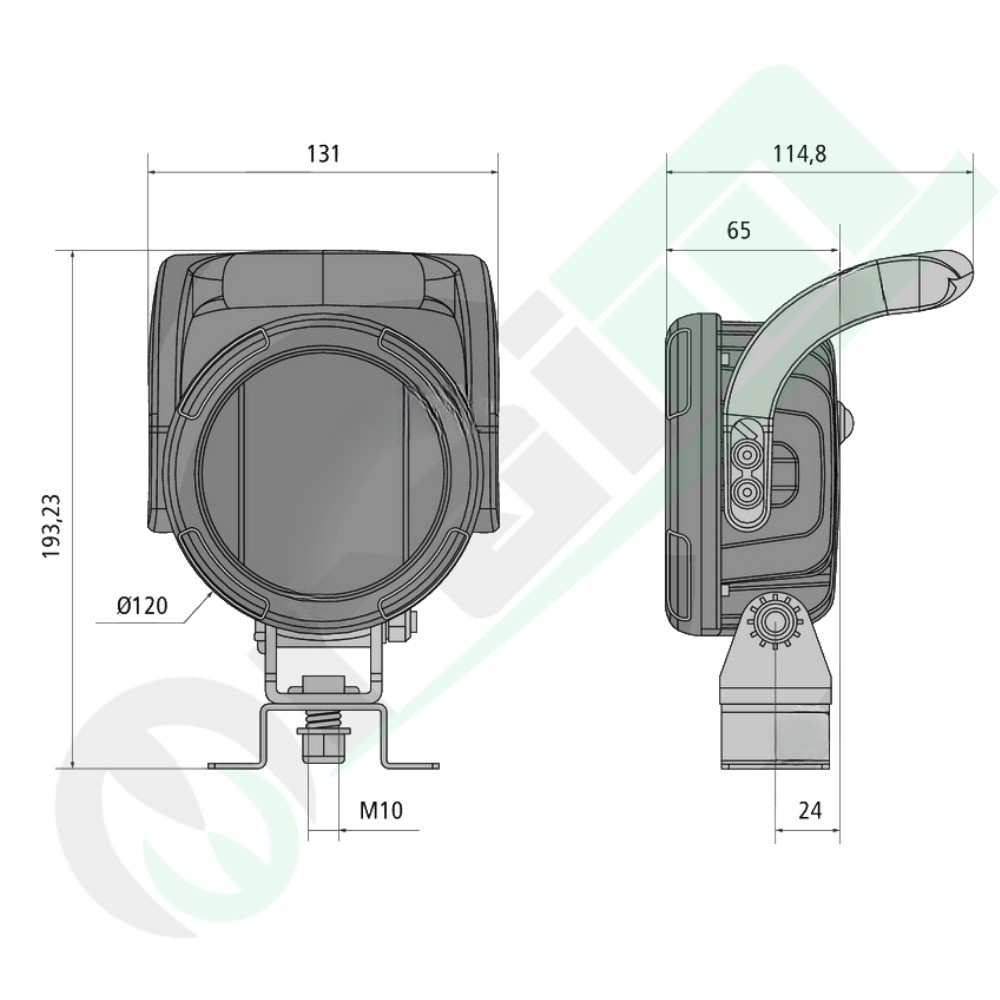

Shape: Round (Ø 120 mm)

Dimensions (mm): Width 131 x Depth 65 / 115 (with bracket)

Structural Size (mm): 193 (Presumed total height)

Housing Material: Aluminum

Protection Type: IP6K9K / IP67 (Maximum protection against dust and water)

Connection: DT 2P Connector

Cable Length (mm): 200

Fixing: M10

Temperature Range (°C): -40 / +50°C

Approvals and Features

Testing Mark: ECE R10 / CE UKCA / ROHS

EMC: CISPR 25 Class 3 (Radio interference suppression)

Additional Information: with switch (integrated)

Key Advantages

**Ultra-High Brightness:** Ideal for night work or low visibility conditions (6800 effective lm).
**Integrated Switch:** Allows direct control of the light without extra in-cab wiring.
**Maximum Protection (IP6K9K):** Resistant to high-pressure water jets and fine dust.
**OSRAM LEDs:** Utilizes high-quality OSRAM LEDs for reliability and long life.
**DT Connector:** Supplied with a 2-pin Deutsch connector for a quick, watertight connection.
