LED Work Light 70799184 | 13W | Long Range Illumination | 800 lm | 12/24V | IP69K

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

GranitRef.

LED Work Light 70799184 | 13W | Long Range Illumination | 800 lm | 12/24V | IP69K

ROUND LED WORK LIGHT 13W Long Range IP69K Part No. 70799184

€54.90VAT incl.

Coupon -€1.10 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €53.80

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Round LED work lamp designed for **long-range illumination**. It is highly resistant due to the **IP69K** protection rating and features important safety functions, including **overheating protection** and **reverse polarity protection**, ensuring reliable operation in harsh conditions.

Technical Details and Performance

Part Number: 70799184

Light Function: Long Range Illumination (Spot)

Nominal Voltage (V): 12 / 24

Operating Voltage (V): 10 - 30

Power Consumption (W): 13

Current Draw (A): 1.2 A (12 V) / 0.6 A (24 V)

Effective Luminous Flux (lm): 800

Theoretical Luminous Flux (lm): 1000

Light Color (K): 6000 (Cool White)

Lamp Type: LED (Quantity: 4)

Construction and Mounting

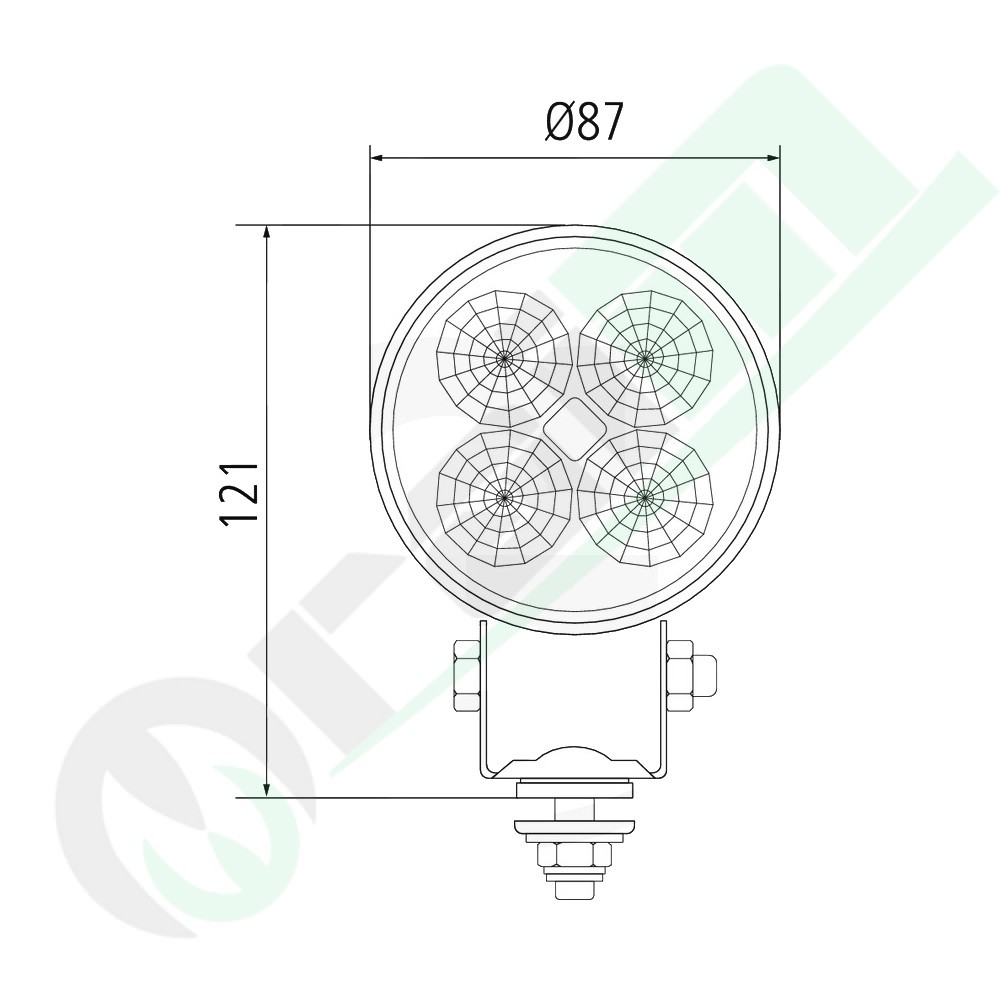

Shape: Round (Ø 87 mm)

Dimensions W x H x D (mm): Ø 87 x 72 (Diameter x Depth)

Structural Size (mm): 121 (Presumed total height with bracket)

Housing Material: Aluminum

Lens Material: Plastic Material

Bracket Material: Stainless Steel

Protection Type: IP67 / IP69K (Maximum resistance to water and dust)

Mounting Method: Vertical / Suspended / Lateral

Fixing: M8

Tilt Angle: 130°

Connection: Open, Tinned Cable Ends (White: - / Black: +)

Cable Length (mm): 500

Number of Poles: 2

Approvals and Safety

EMC: Interference-free according to ECE R10 (Radio interference suppression)

Additional Information: with overheating protection and reverse polarity protection

Key Advantages

**Long Range Beam:** Excellent for illuminating distant spots with 800 effective lumens.
**Integrated Protection:** Circuit is protected against overheating and damage from incorrect polarity.
**Extreme Resistance (IP69K):** Suitable for agricultural or construction environments, resistant to high-pressure washing.
**Versatile Installation:** Vertical, suspended, or lateral mounting with wide adjustment (130°).
