LED Work Light 7070010434 | 18W | Long Range | 1960 lm | DT 2P | IP6K9K

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

GranitRef.

LED Work Light 7070010434 | 18W | Long Range | 1960 lm | DT 2P | IP6K9K

ROUND LED WORK LIGHT 18W Long Range IP6K9K Part No. 7070010434

€59.90VAT incl.

Coupon -€1.20 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €58.70

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

High-power round LED work lamp, designed for **long-range illumination** (Spot). It delivers **1960 effective lumens** with only 18W power consumption. It offers maximum resistance to weathering and high-pressure washing (**IP6K9K**) and features a standard **DT 2P** connector for quick, watertight installation.

Technical Details and Performance

Part Number: 7070010434

Light Function: Long Range Illumination (Spot)

Nominal Voltage (V): 12 / 24

Operating Voltage (V): 10 - 30

Power Consumption (W): 18

Effective Luminous Flux (lm): 1960

Theoretical Luminous Flux (lm): 4000

Light Color (K): 5000 - 6500 (Cool White)

Lamp Type: LED (Quantity: 4)

Construction and Mounting

Shape: Round

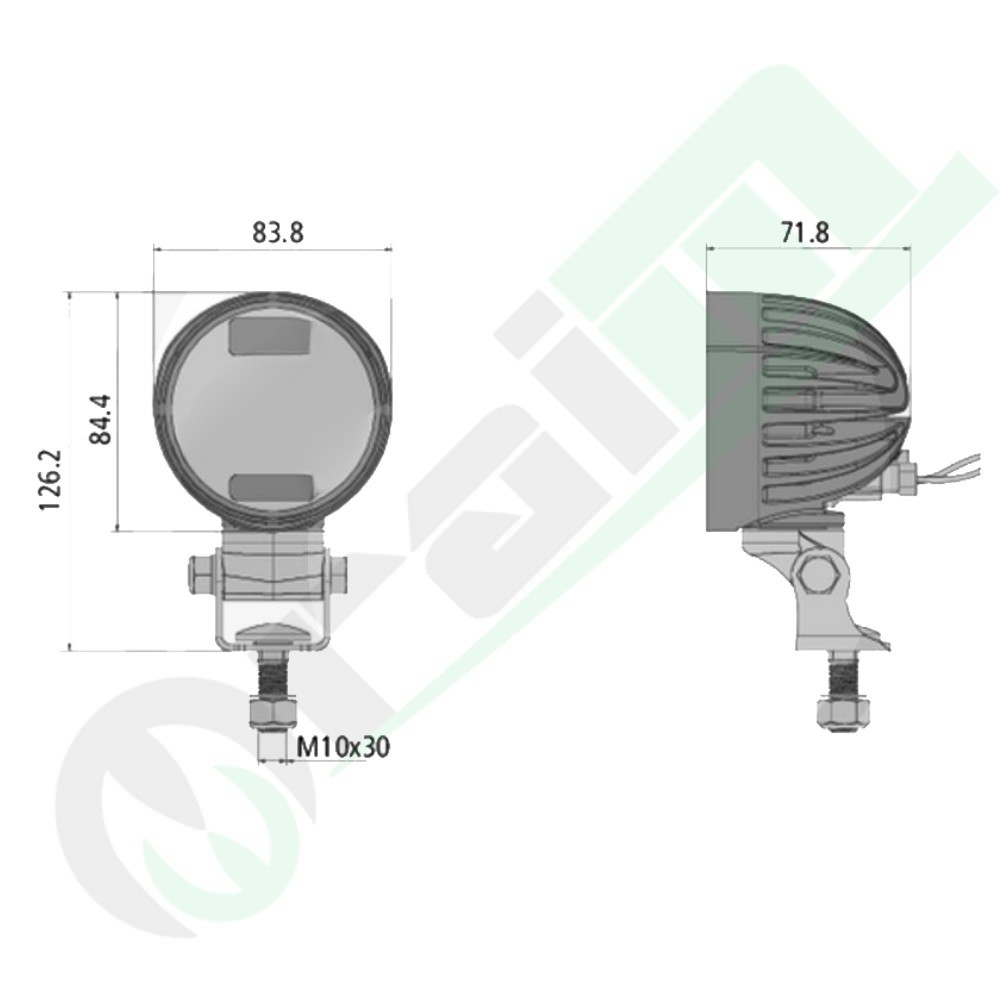

Dimensions W x H x D (mm): 84 x 126 x 72

Structural Size (mm): 126 (Presumed total height with bracket)

Housing Material: Aluminum

Lens Material: Plastic Material

Mounting Method: Stainless Steel Bracket

Protection Type: IP6K9K (Maximum resistance)

Connection: DT 2P (Deutsch 2-Pin Connector)

Cable Length (mm): 2000 (2 meters)

Number of Poles: 2

Temperature Range (°C): -40 / +50°C

Approvals

Testing Mark: CE / RoHS / ECE R10

EMC: CISPR 25 Class 3 (Radio interference suppression)

Key Advantages

**High Efficiency:** 1960 effective Lumens with only 18W power consumption.
**DT 2P Connector:** Ensures a robust and watertight connection, which is an industry standard.
**Extreme Protection (IP6K9K):** Suitable for use in harsh environments and frequent high-pressure washing.
**EMC Suppression:** CISPR 25 Class 3 minimizes electromagnetic interference.
