LED Work Light 7070010435 | 12W | Long Range | 1170 lm | 12/24V | IP6K9K

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

GranitRef.

LED Work Light 7070010435 | 12W | Long Range | 1170 lm | 12/24V | IP6K9K

ROUND LED WORK LIGHT 12W Long Range IP6K9K Part No. 7070010435

€29.00VAT incl.

Coupon -€0.58 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €28.42

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Round LED work lamp designed for **long-range illumination** (Spot) with an effective light output of **1170 lumens**. It offers maximum resistance to weathering and high-pressure washing (**IP6K9K**) and is wired with open ends for maximum connection flexibility.

Technical Details and Performance

Part Number: 7070010435

Light Function: Long Range Illumination (Spot)

Nominal Voltage (V): 12 / 24

Operating Voltage (V): 10 - 30

Power Consumption (W): 12

Effective Luminous Flux (lm): 1170

Theoretical Luminous Flux (lm): 1200

Light Color (K): 5000 - 6500 (Cool White)

Lamp Type: LED (Quantity: 4)

Construction and Mounting

Shape: Round

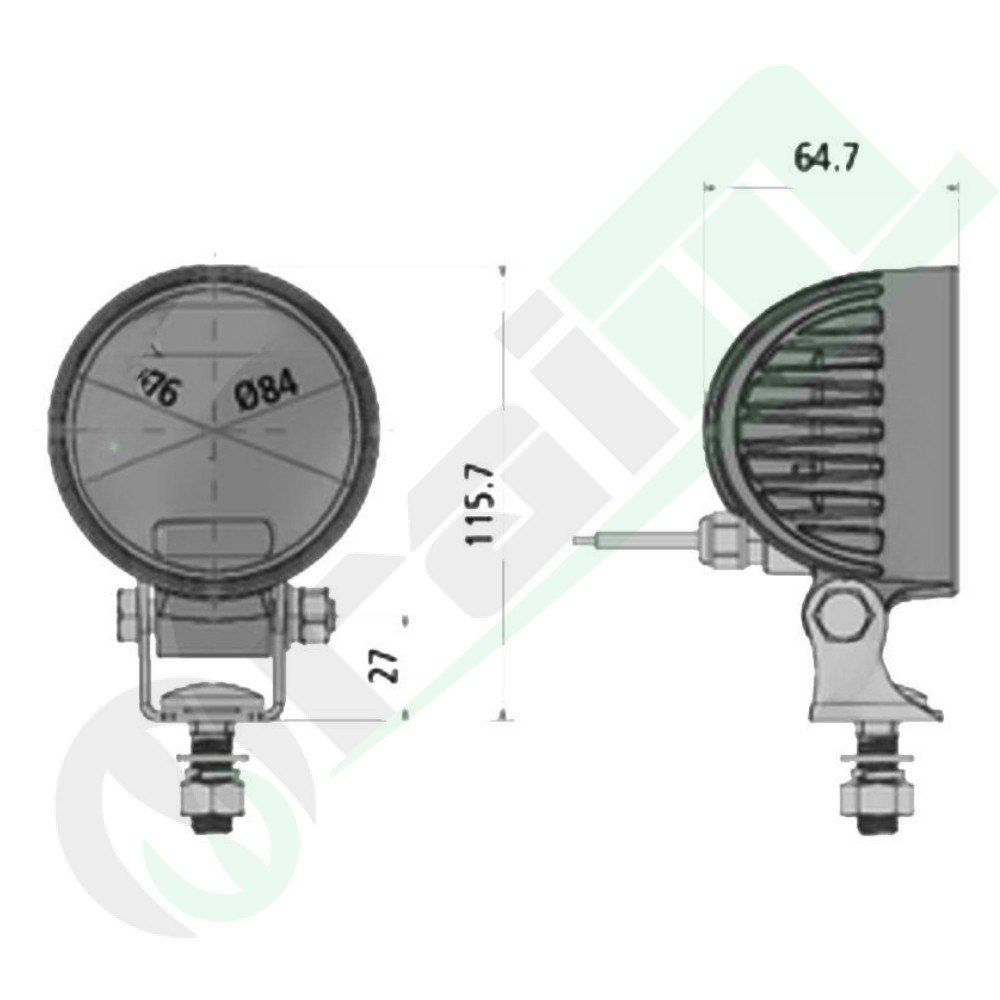

Dimensions W x H x D (mm): 111 x 84 x 65

Structural Size (mm): 111 (Presumed diameter)

Housing Material: Aluminum

Lens Material: Plastic Material

Mounting Method: Stainless Steel Bracket

Protection Type: IP6K9K (Maximum resistance to dust and high-pressure water jets)

Connection: Open Cable Ends (Red + / Black -)

Cable Length (mm): 2000 (2 meters)

Number of Poles: 2

Approvals

Testing Mark: CE / RoHS / ECE R10

EMC: CISPR 25 Class 3 (Radio interference suppression)

Key Advantages

**High Brightness:** 1170 effective Lumens with low power consumption (12W).
**Extreme Protection (IP6K9K):** Suitable for agricultural or construction environments, resistant to high-pressure washing.
**Wiring Flexibility:** 2-meter open cable ends, ideal for custom installation.
**EMC Suppression:** CISPR 25 Class 3 minimizes electromagnetic interference.
