HELLA LED Work Light 1G0 996 276-701 | 13W | Wide Beam | 800 lm | IP6K9K

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

HellaRef.

HELLA LED Work Light 1G0 996 276-701 | 13W | Wide Beam | 800 lm | IP6K9K

HELLA LED WORK LIGHT MODULE 70 GEN. III 800LM BLUE LENS Part No. 1G0 996 276-701

€199.00VAT incl.

Coupon -€3.98 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €195.02

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The **HELLA Module 70 Generation III LED Work Light** is the professional solution for **wide-area illumination**. It stands out for its robustness (**IP6K9K**), compact design (Ø 83 mm), and the unique **blue distribution lens** for specialized applications such as **spreader vehicles and sprayers**. Maximum safety is ensured by integrated electronic protections.

Technical Details and Performance

Part Number: 1G0 996 276-701

Type: Module 70 LED Generation III

Light Function: **Wide-Area Illumination (Flood)**

Nominal Voltage (V): 12 / 24

Operating Voltage (V): 9 - 33

Power Consumption (W): 13

Current Draw (A): 1.08A @ 12V / 0.54A @ 24V

Effective Luminous Flux (lm): **800**

Light Color (K): 6500 (Pure White)

LED Quantity: 4

Construction, Mounting, and Safety

Shape: Round

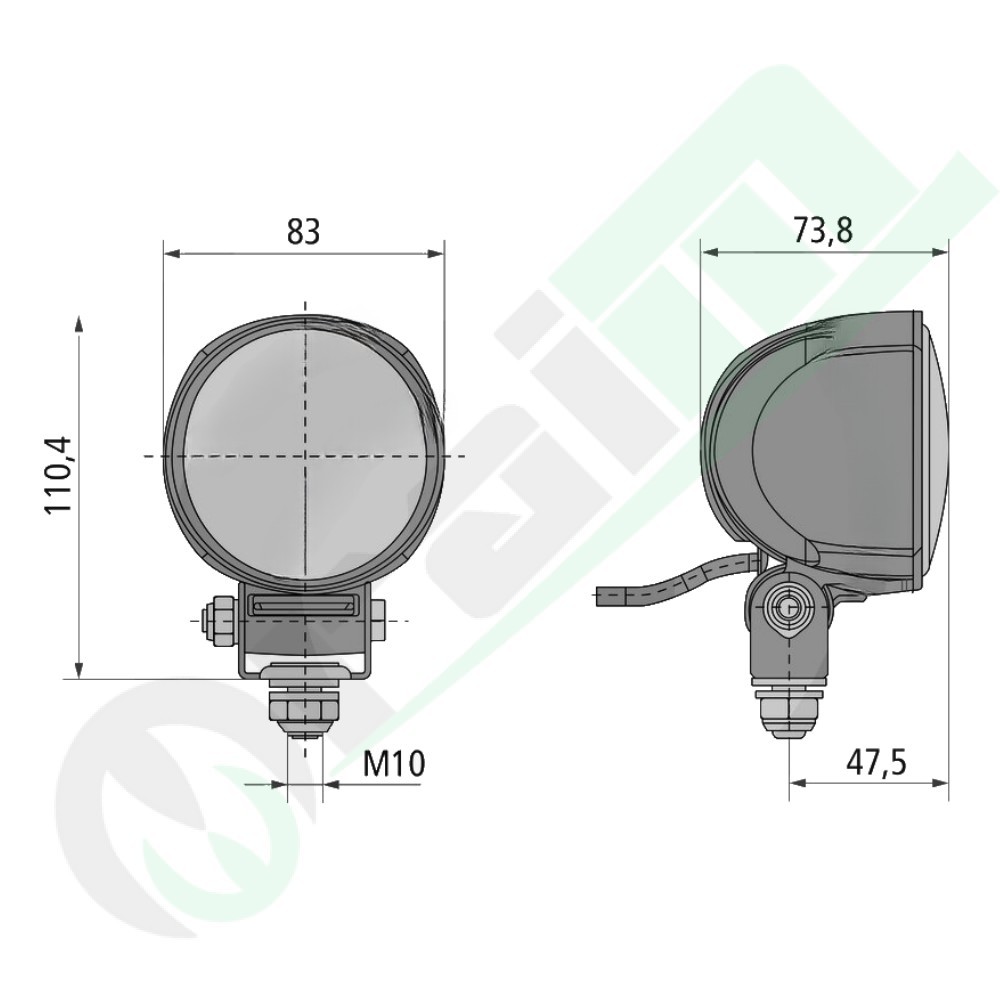

Dimensions W x H x D (mm): Ø 83 x 74

Housing Color: Black

Distribution Lens Color: **Blue** (Version: Transparent)

Housing Material: Aluminum with cooling fins

Lens Material: Polyamide 12

Protection Type: **IP6K9K / IP6K7** (Maximum resistance to dust, water jets, and temporary immersion)

Fixing: Pivoting Mounting Bracket (Stainless Steel Swivel Base)

Connection: Open Cable Ends (Cable Length: 2000 mm)

Additional Information: • Reverse polarity, overvoltage, and overheating protection

Field of Use: Spreader vehicles and sprayers

Approvals

Testing Mark: ECE R10 / EMV / ECE-R10

Admissible: Environmental protection and safety (ex de minimis)

Why this HELLA Projector?

**Total Protection:** Integrated triple electronic protection (polarity, overvoltage, overheating).
**Structural Excellence:** IP6K9K rating and stainless steel components for maximum durability.
**Specific Application:** Blue lens is ideal for use on agricultural machinery like sprayers and spreaders.

Choose HELLA quality and safety: Order your Module 70 Blue Lens today!
