LED Work Light 7070010436 | 42W | Long Range | 4500 lm | DT 2P | IP6K9K

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

GranitRef.

LED Work Light 7070010436 | 42W | Long Range | 4500 lm | DT 2P | IP6K9K

ROUND LED WORK LIGHT 42W Long Range 4500LM IP6K9K Part No. 7070010436

€62.90VAT incl.

Coupon -€1.26 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €61.64

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

High-power round LED work lamp, specifically designed for **long-range illumination** (Spot). With **4500 effective lumens** and only 42W power consumption, it ensures excellent visibility. It features maximum protection (**IP6K9K**) and the industrial **Deutsch DT 2P connector**, with EMC suppression compliant with **CISPR 25 Class 4**.

Technical Details and Performance

Part Number: 7070010436

Light Function: Long Range Illumination (Spot)

Nominal Voltage (V): 12 / 24

Lamp Type: LED (Quantity: 9)

Power Consumption (W): 42

Effective Luminous Flux (lm): 4500

Theoretical Luminous Flux (lm): 4950

Light Color (K): 5000 - 6500 (Cool White)

Operating Voltage (V): 10 - 30

Construction and Mounting

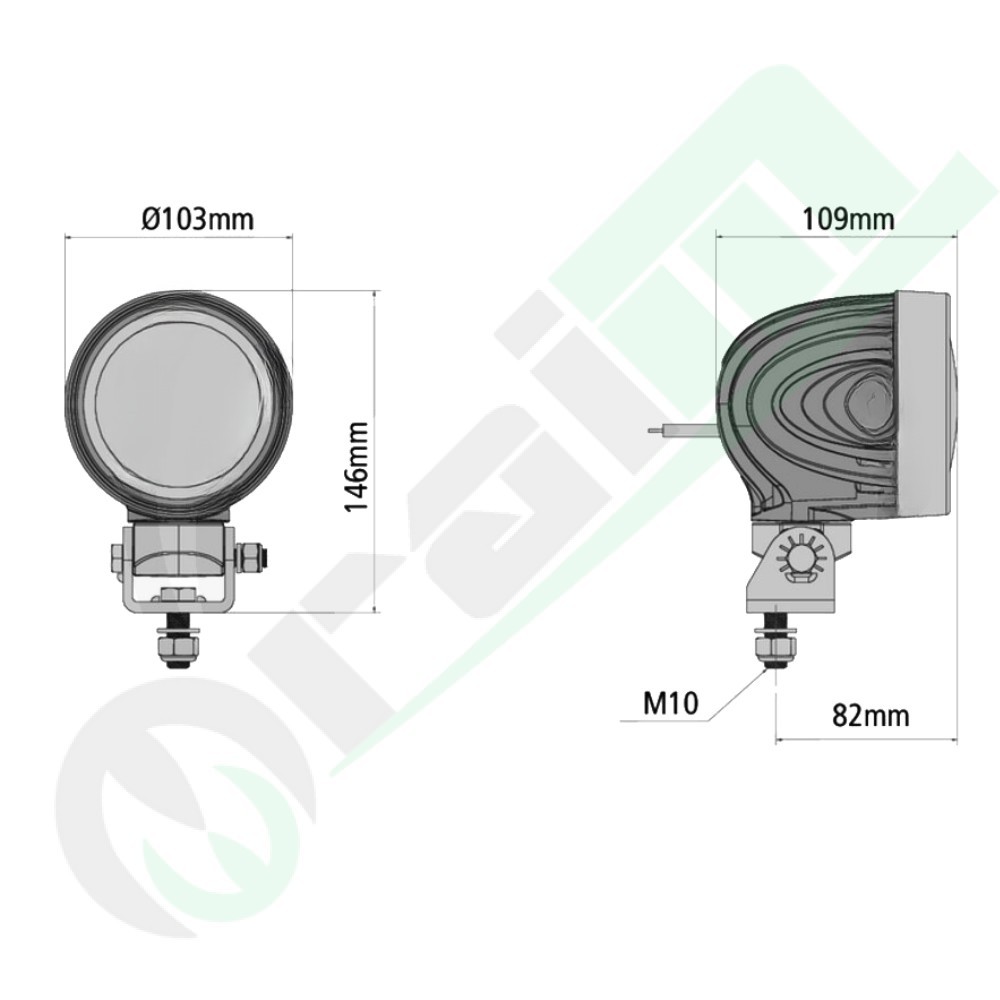

Shape: Round (Ø 103 mm)

Dimensions W x H x D (mm): Ø 103 x 109 (Diameter x Depth)

Structural Size (mm): 146 (Presumed total height with bracket)

Housing Material: Aluminum

Lens Material: Plastic Material

Mounting Method: Stainless Steel Bracket

Protection Type: IP6K9K (Maximum resistance to dust and high-pressure water jets)

Connection: DEUTSCH DT 2P Connector

Cable Length (mm): 2000 (2 meters)

Number of Poles: 2

Temperature Range (°C): -40 / +50°C

Approvals

Testing Mark: CE / RoHS / ECE R10

EMC: CISPR 25 Class 4 (High-level radio interference suppression)

Key Advantages

**Very High Brightness:** Ideal for long-distance illumination with 4500 effective lumens.
**DT Connector:** Ensures a quick, watertight, and reliable electrical connection.
**Extreme Protection (IP6K9K):** Suitable for heavy-duty environments and frequent washing.
**Advanced EMC:** CISPR 25 Class 4 ensures minimal interference with on-board electronic systems.
