HELLA LED Work Light 1G0 996 263-051 | 36W | Wide Beam | 2700 lm | IP6K9K

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

HellaRef.

HELLA LED Work Light 1G0 996 263-051 | 36W | Wide Beam | 2700 lm | IP6K9K

HELLA LED WORK LIGHT MODULE 90 2700LM WIDE AREA IP6K9K Part No. 1G0 996 263-051

€370.00VAT incl.

Coupon -€7.40 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €362.60

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

HELLA power and reliability in a compact design. The **Module 90 LED Work Light** provides intense **Wide Area Illumination** with **2700 effective Lumens** (36W). Featuring maximum environmental protection (**IP67 / IP6K9K**) and internal circuits protected against overvoltage and overheating, it is the ideal choice for industrial and agricultural vehicles requiring high, consistent performance.

Performance and Electrical Specifications

Part Number: 1G0 996 263-051

Type: Module 90 LED

Light Function: **Wide Area Illumination (Flood/Area)**

Effective Luminous Flux (lm): **2700**

Power Consumption (W): 36

Current Draw (A): 3.0A @ 12V / 1.5A @ 24V

Light Color (K): 6500 (Pure White)

Operating Voltage (V): 9 - 33 (12V / 24V)

LED Quantity: 4

Design and Durability

Shape: Round

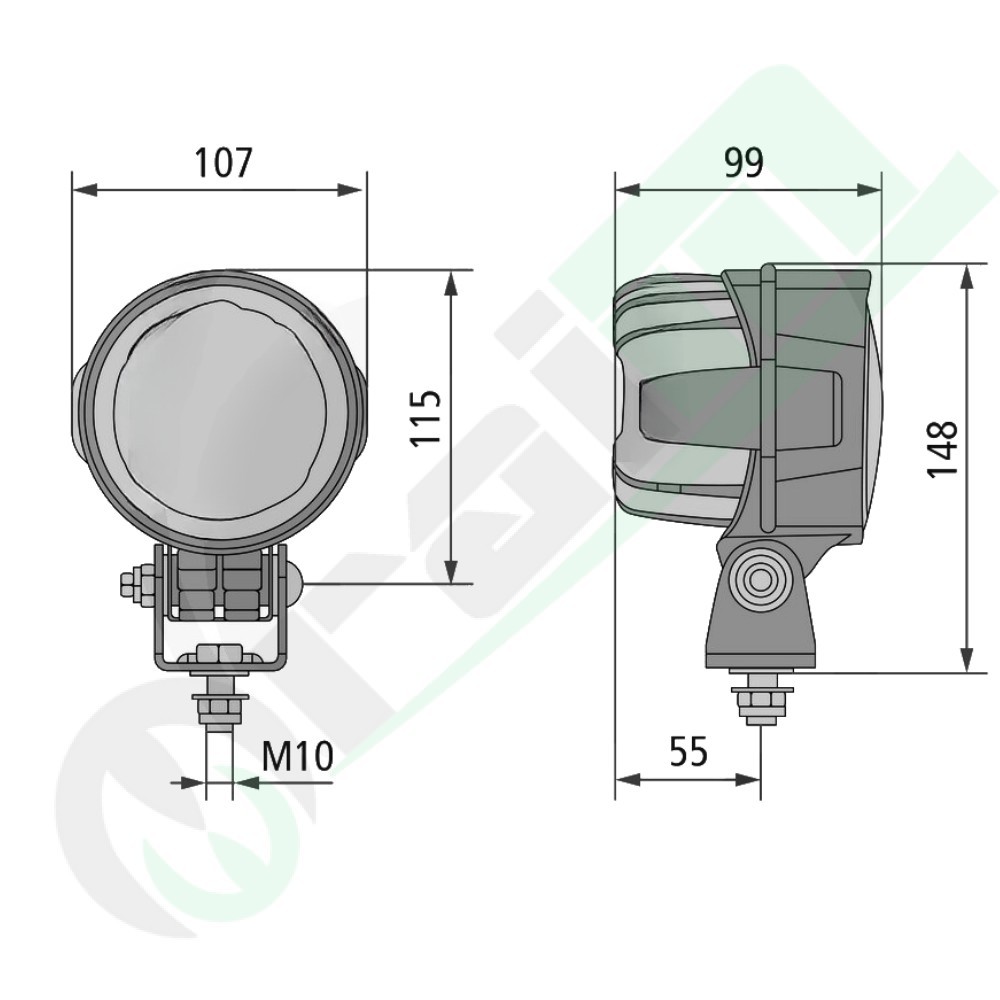

Dimensions W x H x D (mm): Ø 107 x 99

Structural Size (mm): 148 (Total height with bracket)

Light Aperture (mm): Ø 80

Housing Color: Black

Housing Material: Aluminum with cooling fins

Protection Type: **IP67 / IP6K9K** (Maximum resistance to immersion and high-pressure washing)

Temperature Range (°C): -40°C to +50°C

Installation and Safety

Connection: **Deutsch Plug Connector**

Mounting Method: Vertical

Additional Information: • Reverse polarity, overvoltage, and overheating protection

Testing Mark: E1; ECE R10

Key Strengths of Module 90

**Powerful Light:** 2700lm to effectively illuminate a wide area.
**Secure Connection:** Deutsch connector for a robust and watertight coupling.
**Extended Service Life:** Aluminum housing with heatsink and integrated electronic protection.

Don't settle for less: Buy the HELLA 1G0 996 263-051 projector now!
