HELLA LED Work Light 1G0 996 476-001 | 30W | Close Range | 2500 lm | Gen. IV

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

HellaRef.

HELLA LED Work Light 1G0 996 476-001 | 30W | Close Range | 2500 lm | Gen. IV

HELLA LED WORK LIGHT MODULE 70 GEN IV 2500LM CLOSE-RANGE IP6K9K Part No. 1G0 996 476-001

€230.00VAT incl.

Coupon -€4.60 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €225.40

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Maximum performance in a compact form factor. The **HELLA Module 70 Generation IV LED Work Light** provides exceptional brightness of **2500 effective Lumens** with only 30W, focused on **Close-Range Illumination** (Flood). The rugged construction with **IP6K9K** protection, aluminum housing with cooling fins, and integrated electronic protections make it an extremely reliable lamp for any harsh working environment.

Performance and Electrical Specifications

Part Number: 1G0 996 476-001

Type: Module 70 LED Generation IV

Light Function: **Close-Range Illumination (Flood/Area)**

Effective Luminous Flux (lm): **2500**

Power Consumption (W): 30

Current Draw (A): 2.5A @ 12V / 1.25A @ 24V

Light Color (K): 6500 (Pure White)

Operating Voltage (V): 9 - 33 (12V / 24V)

LED Quantity: 3

Design and Durability

Shape: Round

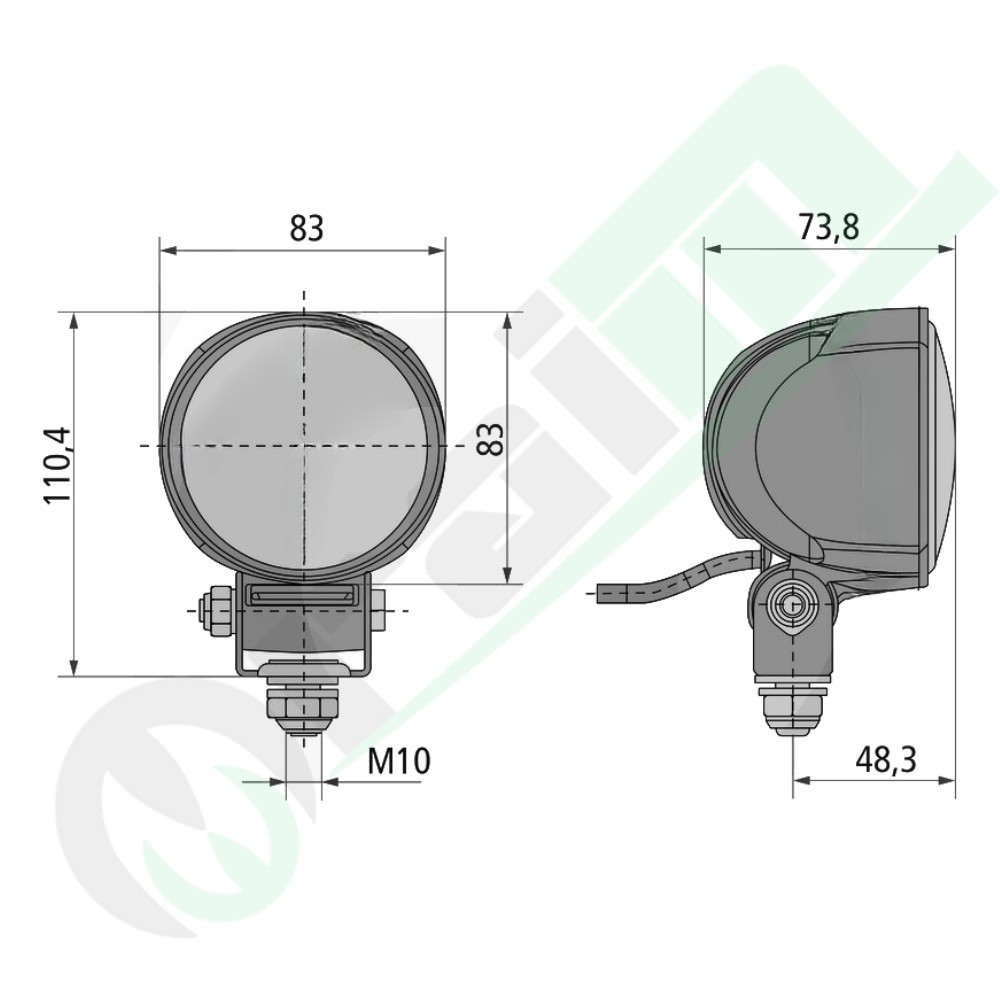

Dimensions W x H x D (mm): Ø 83 x 74

Structural Size (mm): 110 (Total height with bracket)

Light Aperture (mm): Ø 70

Housing Color: Black

Housing Material: Aluminum with cooling fins

Swivel Base Material: Stainless Steel

Protection Type: **IP6K8 / IP6K9K** (Maximum resistance to immersion and high-pressure washing)

Temperature Range (°C): -40°C to +50°C

Installation and Safety

Connection: Open Cable Ends

Cable Length (mm): 2000

Mounting Method: Vertical

Additional Information: • **Reverse polarity**, **overvoltage**, and **overheating** protection

Testing Mark: ECE R10; EMC

Key Strengths of Module 70 Gen IV

**Superior Brightness:** 2500lm with high efficiency to illuminate the immediate work area.
**Total Protection:** Triple electronic protection and IP6K9K rating for maximum safety and durability.
**Flexible Installation:** Stainless steel bracket and 2-meter cable with open ends.

Trust HELLA innovation for your safety: Purchase the 1G0 996 476-001 now!
