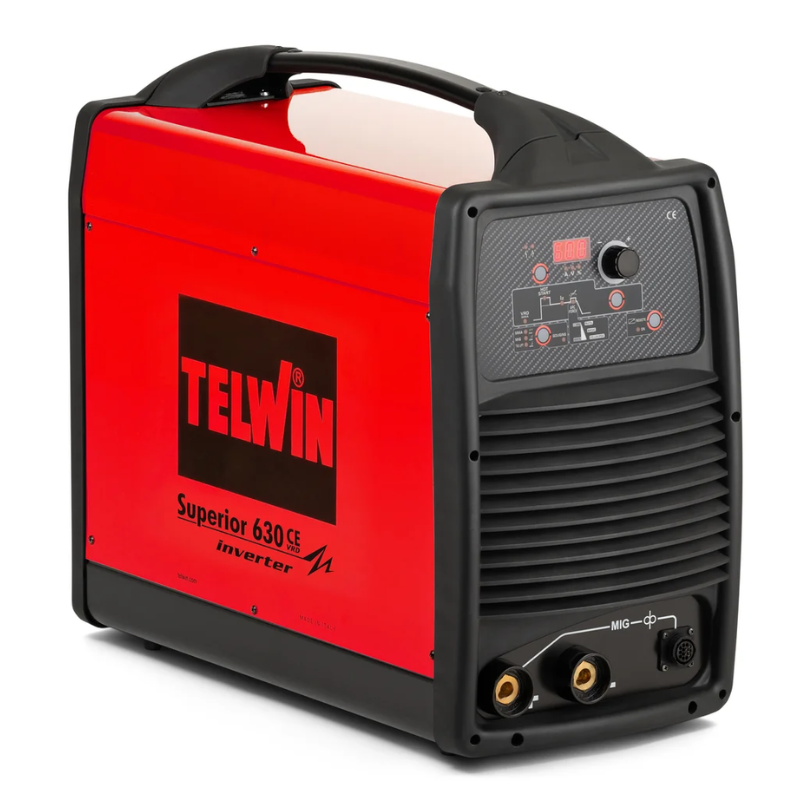

Telwin SUPERIOR 630 CE VRD Multiprocess MMA-TIG DC Inverter Welder

Telwin SUPERIOR 630 CE VRD Multiprocess MMA-TIG DC Inverter Welding Machine with Gouging Function and MIG/MAG Predisposition – Current up to 600A

Product code

816032

Certification

✅ Compliant with the EN60974-1 standard for professional electrode welding, TIG-LIFT, gouging and MIG/MAG predisposition with optional wire feeder

Main features

✔ Multiprocess inverter welding machine for MMA and TIG-LIFT DC welding

✔ Predisposed for MIG/MAG and FLUX welding via external wire feeder (optional)

✔ Gouging mode with carbon electrodes

✔ Suitable for welding coated electrodes (cellulosic, aluminum, rutile, basic, stainless steel, cast iron) up to Ø 8 mm

✔ Arc force and hot start adjustments configurable based on to the electrode

✔ Internal E²PROM memory for the last 10 alarms

✔ Compatible with remote control

✔ Stable operation even with a motor generator (±15%)

✔ Compact structure for a high-power welder

Safety and protection

? Protections: thermostatic, overvoltage, undervoltage, overcurrent

? Anti-stick device to prevent the electrode from sticking

? VRD device for operator safety

? Degree of protection IP23

Technologies and materials

✔ Three-phase multivoltage inverter 230 / 400 V

✔ Current up to 600 A for heavy-duty applications

✔ Minimum power required by the motor generator up to 32 kW

✔ Efficiency 86% – Power factor 0.9

✔ Advanced control of welding drop transfer

Sectors of use

? Heavy industry, construction sites naval, steel structures, industrial maintenance

? Ideal for heavy and continuous work, even in difficult environments

Mains voltage

230 / 400 V (three-phase, multivoltage)

Frequency

50 / 60 Hz

DC current regulation range

10 - 450 / 10 - 600 A

Max. DC current EN60974-1

400 A @ 35% / 500 A @ 40%

Average DC current

300 / 400 A

Max. no-load voltage

65 / 73 V

Max. absorbed current

44 / 35 A

Absorbed current at 60%

25 / 20 A

Max. absorbed power

16 / 23 kW

Absorbed power at 60%

10 / 13 kW

Power minimum motor generator

22 / 32 kW

Efficiency

86 %

Power factor (cosφ)

0.9

Ø supported electrodes

1.6 - 8 mm

Protection degree

IP23

Dimensions

67 x 31 x 56 cm

Weight

43 kg
