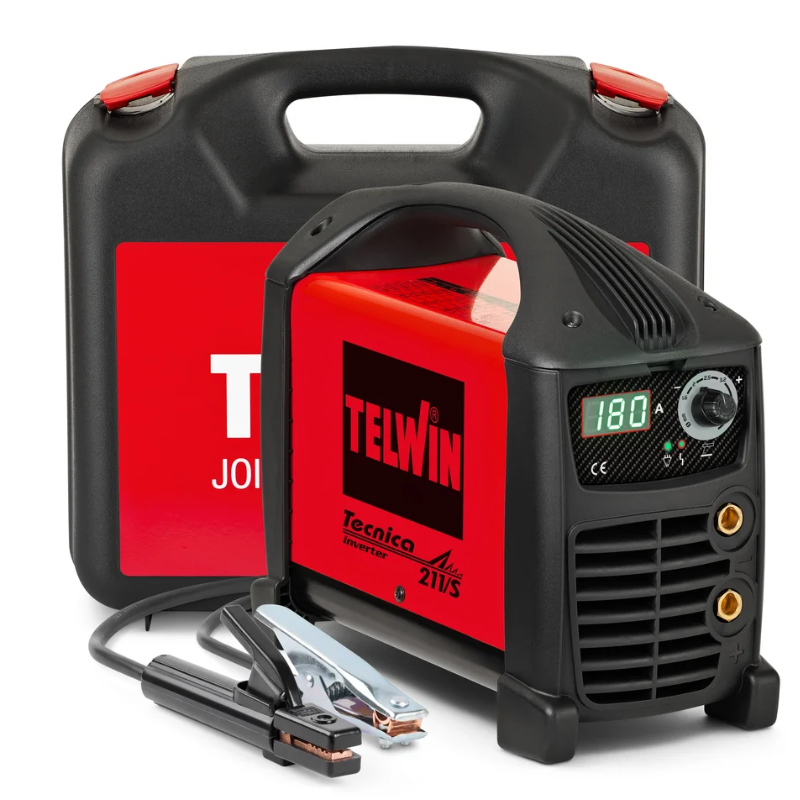

Telwin TECNICA 211/S MMA-TIG Inverter Welder – 230V with Case

Telwin TECNICA 211/S MMA-TIG Inverter Welding Machine – 230V with Case

Product code

816236

Certification

✅ Compliant with the EN60974-1 standard for MMA and TIG DC welding with scratch striking

Main features

✔ MMA and TIG electrode inverter welding machine in direct current (DC)

✔ Wide current adjustment range: 10 - 180 A

✔ Robust and raised structure against dust, water and dirt

✔ Digital display for viewing the set welding current

✔ Integrated devices: Arc Force, Hot Start, Anti-Stick

✔ Compatible with motor generators (±15%)

✔ Flexibility of use with rutile, basic, stainless steel, cast iron electrodes

✔ Supplied complete with MMA welding accessories and plastic case

Safety and protection

? Protections: thermostatic, overvoltage, undervoltage, overcurrent

? Degree of protection IP23: also suitable for exposed work environments

Technologies and materials

✔ Scratch TIG ignition

✔ High energy efficiency (86%)

✔ Power factor (cosφ): 0.7

✔ Excellent current stability even in the event of variations in the supply voltage

Sectors of use

? Ideal for metal carpentry, workshops, construction sites and professional maintenance

? Perfect for those who need the TIG DC mode in combination with electrode welding

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 180 A

%USE (use at 20°C)

95% @ 180 A

Max. DC current EN60974-1

180 A @ 20%

Current 35% DC

145 A

Average current in DC

110 A

Max. no-load voltage

82 V

Max. absorbed current

36 A

Absorbed current at 60%

19 A

Max. absorbed power

5.6 kW

Absorbed power at 60%

3.1 kW

Minimum motor generator power

8 kW

Efficiency

86 %

Power factor (cosφ)

0.7

Ø supported electrodes

1.6 - 4 mm

Protection degree

IP23

Dimensions

38 x 42 x 17 cm

Weight

5.81 kg
