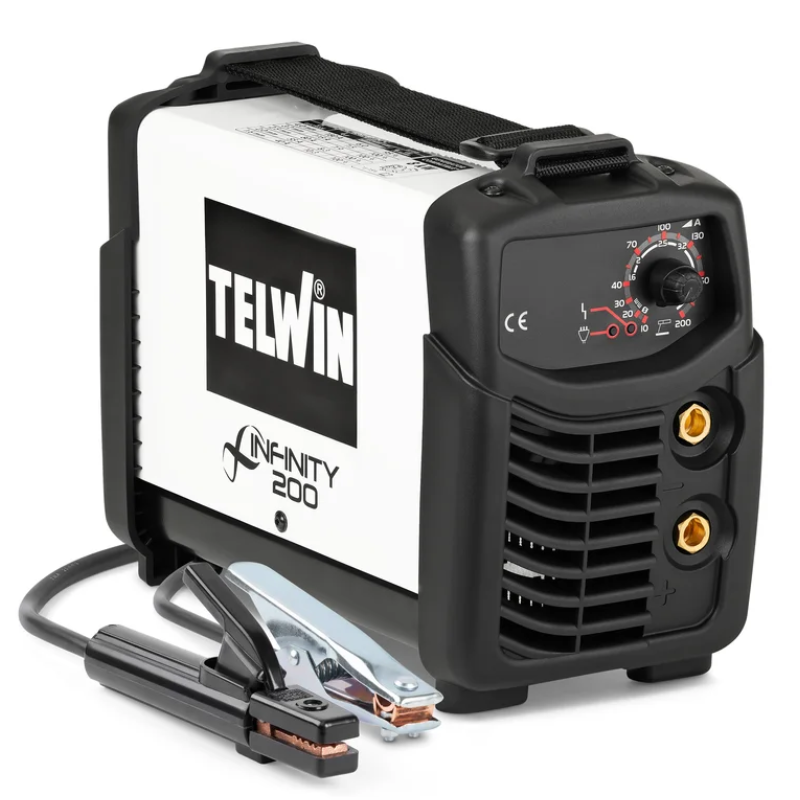

Telwin INFINITY 200 MMA and TIG Inverter Welder – 230V

Telwin INFINITY 200 MMA and TIG Inverter Welding Machine – 230V

Product code

816129

Certification

✅ Compliant with the EN60974-1 standard for MMA and TIG welding in direct current (DC) with scratch striking

Main features

✔ MMA and TIG electrode inverter welding machine in direct current with scratch striking

✔ Wide DC current adjustment range: 10 - 200 A

✔ High stability of the welding current even with variations in the mains voltage

✔ Arc Force, Hot Start, Anti-Stick devices for uninterrupted welding

✔ Integrated protections against overheating, overvoltage, undervoltage and overcurrent

✔ Complete with accessories for MMA welding

Description

• Single-phase power supply 230 V, 50 / 60 Hz

• Ideal for welding jobs with electrodes rutile, basic, stainless steel, cast iron, etc.

• Also works with motor generators (tolerance +/- 15%)

• IP23 protection rating, suitable for dusty and humid environments

• Compact and lightweight design, easy to transport and handle

Safety and protection

? Thermostatic protection system, against overvoltage, undervoltage and overcurrent

? IP23 protection rating for resistance to dust and humidity

? Integrated protection functions to ensure safe and trouble-free welding

Technologies and materials

✔ 86% efficiency for high energy efficiency

✔ Power factor (cosφ) of 0.7 for optimal welding

✔ Supports electrodes with a diameter of 1.6 - 4 mm for a variety of applications

Sectors of use

? Professional and light welding workshops

? Maintenance and repair work

? Industrial and craft applications

Mains voltage

230V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 200 A

Max. DC current EN60974-1

180 A @ 20% A

Current 35% DC

130 A

DC current

110 A

Max. no-load voltage

82 V

Max. absorbed current

36 A

Max. absorbed power

5.6 kW

Absorbed power at 60%

3.1 kW

Minimum generator power

8 kW

Efficiency

86 %

Power factor (cosφ)

0.7

Ø supported electrodes

1.6 - 4 mm

Protection degree

IP23

Dimensions

30.4 x 13.8 x 21.3 cm

Weight

3.650 kg
