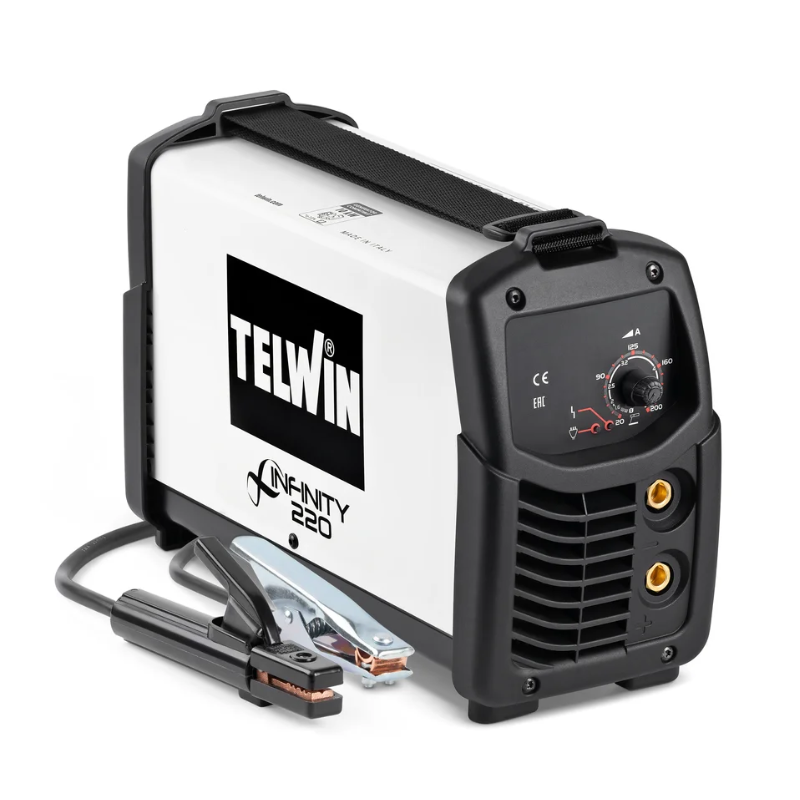

Telwin INFINITY 220 MMA and TIG Inverter Welding Machine – 230V
Product code
816082
Certification
✅ Compliant with the EN60974-1 standard for MMA and TIG welding in direct current (DC) with scratch striking
Main features
✔ MMA and TIG electrode inverter welding machine in direct current with scratch striking
✔ Wide DC current adjustment range: 20 - 200 A
✔ High stability of the welding current even with variations in the mains voltage
✔ Arc Force, Hot Start, Anti-Stick devices for uninterrupted welding
✔ Integrated protections against overheating, overvoltage, undervoltage and overcurrent
✔ Complete with accessories for MMA welding
Description
• Single-phase power supply 230 V, 50 / 60 Hz
• Ideal for welding jobs with electrodes rutile, basic, stainless steel, cast iron, etc.
• Also works with motor generators (tolerance +/- 15%)
• IP23 protection rating, suitable for dusty and humid environments
• Compact and lightweight design, easy to transport and handle
Safety and protection
? Thermostatic protection system, against overvoltage, undervoltage and overcurrent
? IP23 protection rating for resistance to dust and humidity
? Integrated protection functions to ensure safe and trouble-free welding
Technologies and materials
✔ 92% efficiency for high energy efficiency
✔ Power factor (cosφ) of 0.7 for optimal welding
✔ Supports electrodes with a diameter of 1.6 - 4 mm for a variety of applications
Sectors of use
? Professional and light welding workshops
? Maintenance and repair work
? Industrial and craft applications
Mains voltage
230V (single phase)
Frequency
50 / 60 Hz
DC current regulation range
20 - 200 A
Max. DC current EN60974-1
200 A @ 35%
DC current
140 A
Max. no-load voltage
60 V
Max. absorbed current
36 A
Max. absorbed power
6 kW
Absorbed power at 60%
4 kW
Minimum generator power
10 kW
Efficiency
92 %
Power factor (cosφ)
0.7
Ø supported electrodes
1.6 - 4 mm
Protection degree
IP23
Dimensions
40 x 14.5 x 24 cm
Weight
6.56 kg
