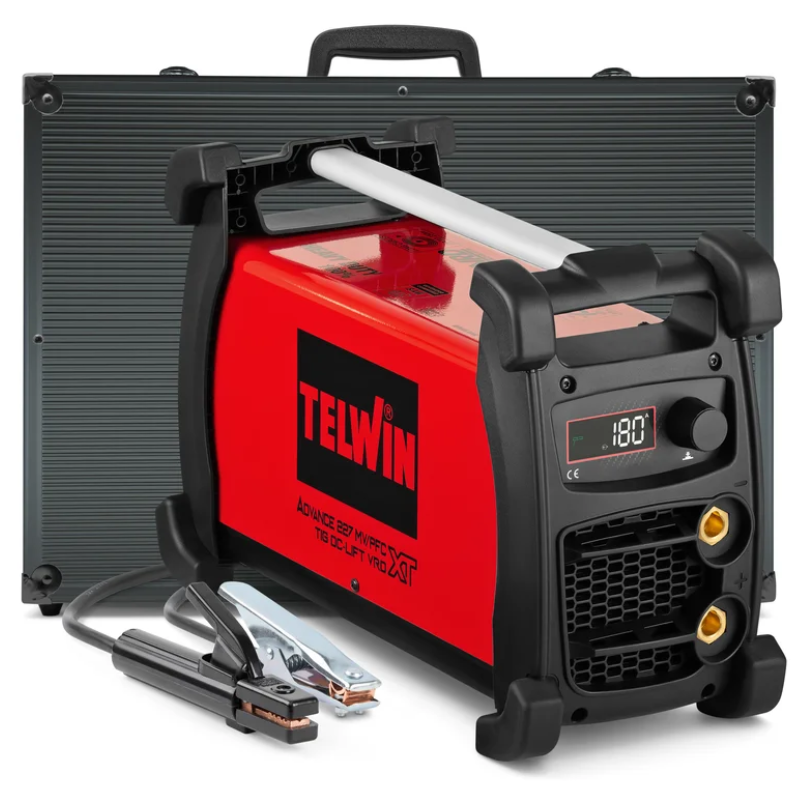

Telwin ADVANCE 227 XT MV/PFC VRD MMA-TIG Inverter Welding Machine – Multivoltage 100÷240V with Aluminum Case

Product code

816249

Certification

✅ Compliant with the EN60974-1 standard for MMA and TIG DC welding with LIFT ignition

Main features

✔ MMA and TIG DC inverter welding machine with LIFT ignition

✔ Multivoltage: 100÷240V, can be used with unstable networks and extensions up to 250 m

✔ MV/PFC device: high efficiency with reduced absorption up to 30%

✔ VRD device for safety in humid environments (e.g. mines, shipyards)

✔ Compatible with rutile, basic, stainless steel, cast iron electrodes

✔ Use on materials such as steel, stainless steel, titanium, copper, nickel and alloys

✔ LCD display for welding current display

✔ Compact, lightweight, robust and shock-resistant

✔ Quick connector Ø 50 mm

✔ Complete with MMA welding accessories and aluminum case

Safety and protection

? VRD device: reduced output voltage in standby

? Protections: thermostatic, overvoltage, undervoltage, overcurrent

? Stable operation with motor generators (±15%)

? IP23 protection level against dust and water splashes

Technologies and materials

✔ High efficiency with 84% efficiency

✔ High power factor (cosφ): 0.98

✔ High current stability even with fluctuations

Sectors of use

? Ideal for professional use on construction sites, carpentry, workshops, humid environments or with unstable power supply

? Perfect for work on metals and alloys special

Mains voltage

100-120 V / 200-240 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 120(150) A / 10 - 200 A

Max. DC current EN60974-1

120 A @ 30%(150 A @ 30%) / 200 A @ 30%

Current 35% DC

110(140) / 160 A

Average current in DC

95(125) / 125(135) A

Max. no-load voltage

81 V

Max. absorbed current

33(25) / 27(19) A

Absorbed current at 60%

24(20) / 16.5(11) A

Max absorbed power

3.1(2.4) / 5.2(3.6) kW

60% absorbed power

2.3(1.9) / 3.2(2.1) kW

Minimum generator power

5 / 8 kW

Efficiency

84 %

Power factor (cosφ)

0.98

Ø supported electrodes

1.6 - 4 mm

Protection degree

IP23

Dimensions

37.5 x 50 x 22 cm

Weight

11.64 kg
