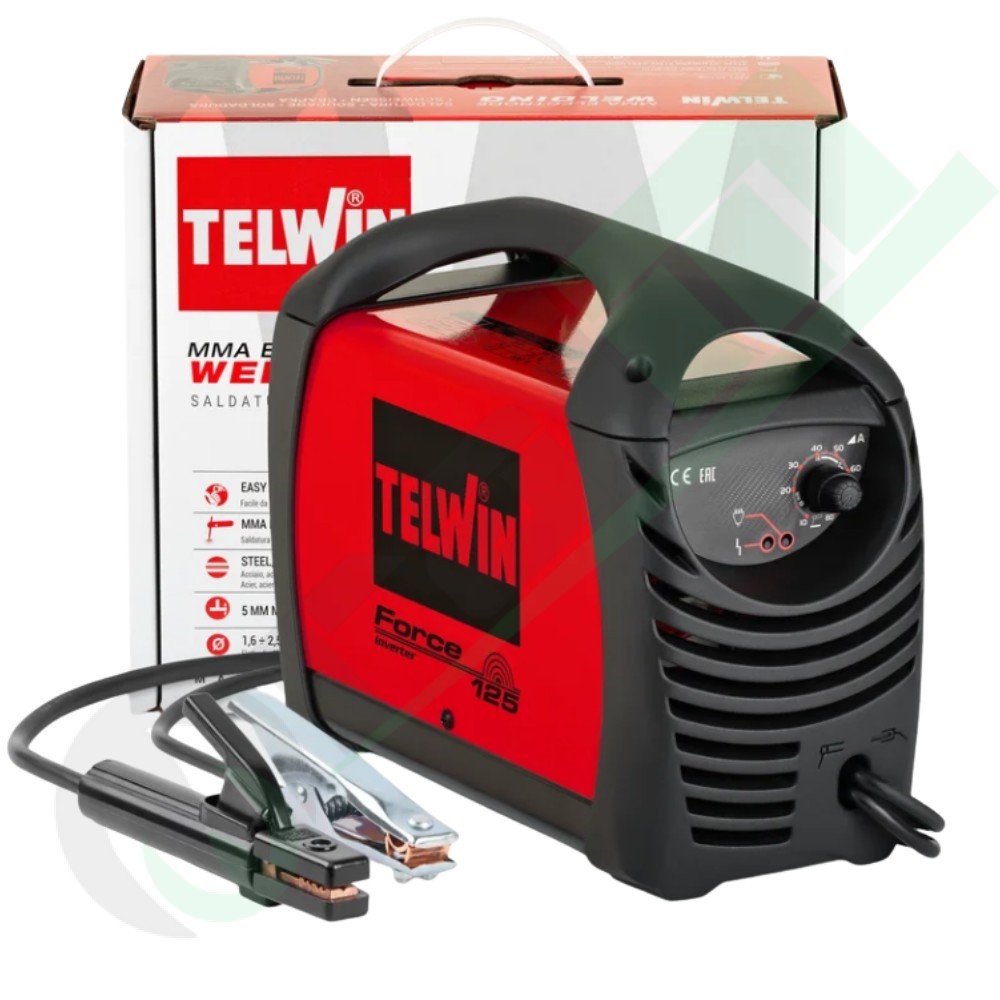

Telwin FORCE 125 - Inverter MMA Stick Electrode Welder (DC)

The **Telwin FORCE 125** is a direct current (DC) inverter stick electrode (MMA) welding machine, ideal for demanding hobbyists and light professional work. Thanks to inverter technology, it offers excellent welding current stability and low power consumption. It is extremely **lightweight and compact**, easy to transport, and comes complete with all the necessary accessories to start welding immediately.

Key Features

• Welding Type: MMA Stick Electrode in Direct Current (DC).
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters from 1.6 mm to 2.5 mm.
• Advanced Arc Control: Features Arc Force, Hot Start, and Anti-Stick devices for optimal arc strike and stability.
• Stability: High stability of the welding current against variations in the mains voltage.
• Integrated Protections: Thermostatic, overvoltage, undervoltage, and overcurrent protection.
• Motogenerator Compatibility: Suitable for use with a motogenerator (230V +/- 15% voltage stability required) with a minimum power of 3 kW.
• Portability: Lightweight and compact design for easy transport.

Technical Specifications

• CODE: 815872
• Single-Phase Mains Voltage: 230 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 10 - 80 A
• Max Current DC EN60974-1: 80 A @ 5%
• Max No-Load Voltage: 72 V
• Max Absorbed Current: 15 A
• Max Absorbed Power: 2.3 kW
• Minimum Motogenerator Power: 3 kW
• Electrode Diameter in DC: 1.6 - 2.5 mm
• Efficiency: 82 %
• Protection Grade: IP21
• Dimensions (LxWxH): 32 x 37 x 14.5 cm (12.6 x 14.6 x 5.7 inches)
