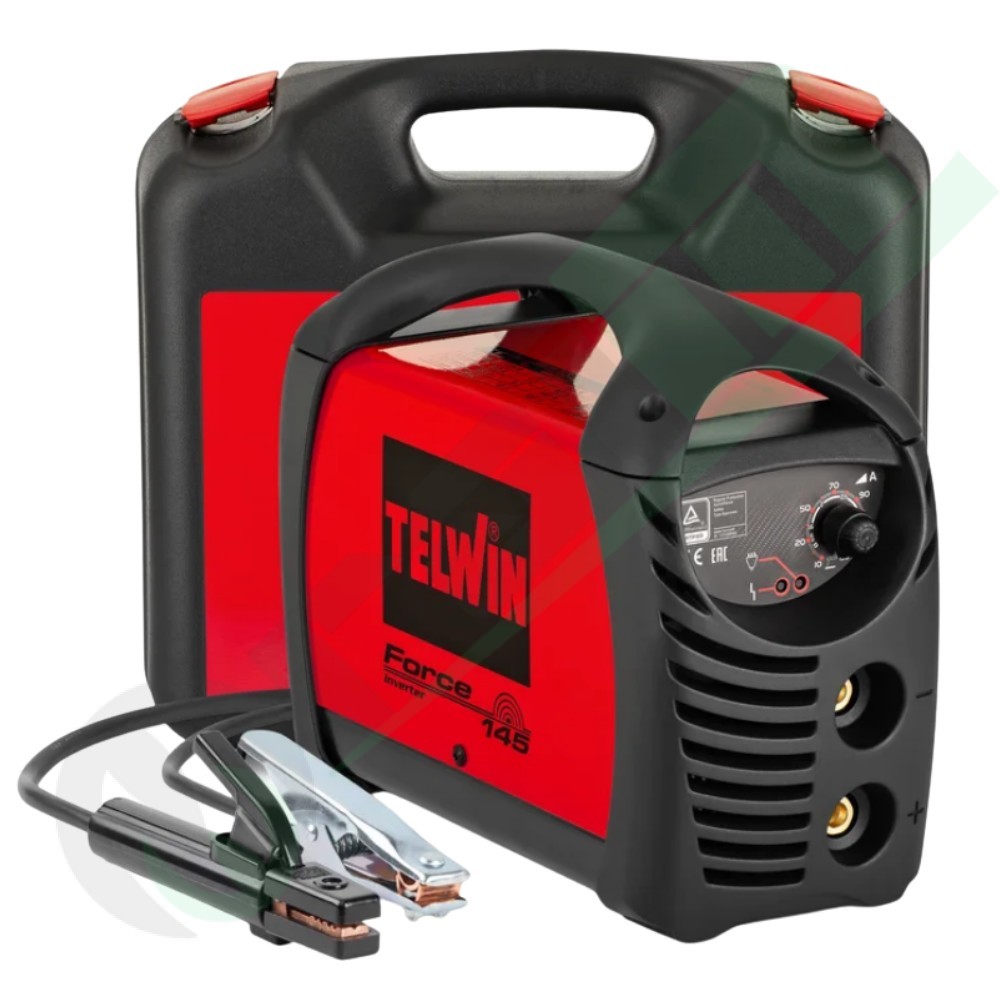

Telwin FORCE 145 + Case - Inverter MMA Stick Electrode Welder (DC) 130A

The **Telwin FORCE 145** is a powerful 130 A direct current (DC) inverter stick electrode (MMA) welding machine. It's ideal for users needing more power and the ability to weld with electrodes up to 3.2 mm. The inverter technology ensures low consumption and high welding current stability. It is supplied with all necessary accessories and a convenient plastic carrying case for easy and safe transport.

Key Features

• Welding Type: MMA Stick Electrode in Direct Current (DC).
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters up to 3.2 mm.
• Advanced Arc Control: Integrated Arc Force, Hot Start, and Anti-Stick devices for optimal welding performance.
• Portability: Compact and lightweight design. A plastic carrying case is included.
• Motogenerator Compatibility: Suitable for use with a motogenerator (230V +/- 15% voltage stability required), minimum power: 5 kW.
• Protections: Thermostatic, overvoltage, undervoltage, and overcurrent protection.

Technical Specifications

• CODE: 815856
• Single-Phase Mains Voltage: 230 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 10 - 130 A
• Max Current DC EN60974-1: 125 A @ 7%
• Duty Cycle (Use at 20°C): 60% @ 125A
• Max No-Load Voltage: 72 V
• Max Absorbed Power: 3.5 kW
• Minimum Motogenerator Power: 5 kW
• Electrode Diameter in DC: 1.6 - 3.2 mm
• Fuse: 16 A
• Protection Grade: IP21
• Dimensions (LxWxH): 38 x 42 x 17 cm (15 x 16.5 x 6.7 inches)
